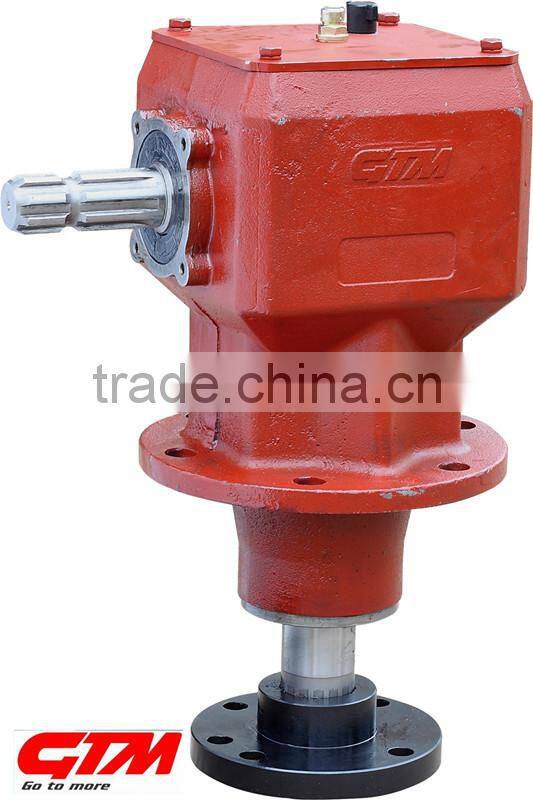

Help CenterRG Series Gearbox for Tractor Pto
Related Products
-
QT450 RG70 Rotary Cutter GearboxUS$ 110 - 130MOQ: 50 Sets -
Factory Direct Price Speed Increasing Mower GearboxUS$ 70 - 90MOQ: 50 Sets
-
Professional Mower GearboxUS$ 70 - 90MOQ: 50 Sets
-
China Agricultural Mower GearboxUS$ 70 - 90MOQ: 50 Sets
-
Agricultural Gearbox Lawn Mower GearboxUS$ 50 - 150MOQ: 50 Pieces
Product details
| Ratio | 1:1.92 |
| Module | 6.5 |
| Input description | spline shaft |
| Output description | Key way shaft |
| Housing material | QT450 |
| Shaft material | 20CrMnTi |
| Horsing surface color | customized |
| Weight | 37kg |
| Input torque | 1040Nm |
| Product Keywords | gearbox for tractor pto |
| Type | Ratio | Output r.p.m | Power | Output torque N.m | Input r.p.m |
| RG70-1 | 1:1.46 | 788 | 80HP | 712 | 540 |
| RG70-2 | 1:1.71 | 923 | 80HP | 608 | 540 |
| RG70-3 | 1:1.92 | 1036 | 80HP | 539 | 540 |
| RG70-4 | 1:2.15 | 1160 | 80HP | 484 | 540 |
Zhejiang Hongye Agricultural Equipment Science and Technology LTD. is a modern enterprise with a combination of development, production, sales and service for transmission products. It is professional in gearbox development and manufacturing with more than 20 years experience. It is manufacturing upward of 500 different kinds of gearbox, used in agricultural, industrial and some other fields.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.
We own a series of high precision CNC workshop, high speed 5-axis linkage digital-controlling gear hobbing machines as well as automatic spray painting line All these equipments supply favorable managing condition and reliable detecting methods.
Our team
Our customer
300 employees, 10 engineers and 30 technicians, long & good business relationship with most famous agricultural machinery manufacturers in the world, such as Alamo, Star, Yanmar, John Deer,Astuant, GKN, YTO group,Weasler.
Sales network
Each year, GTM will take part in different kind of exhibition in China and many other countries.We patiently treat with each customer. GTM agricultural regards the global customer needs as own duty, takes root in China, provides service worldwide. Using technology to ensure excellent quality, using wisdom to create national brand.
Factory manufacturing grain transporation gearbox
RG series agricultural rotary lawn mower gearbox
Long life-span agricultural short harvester reversing gearbox
agricultural grain auger gearbox with shafting fork
