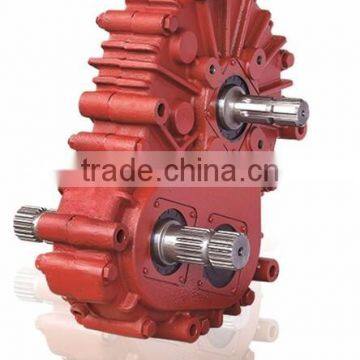

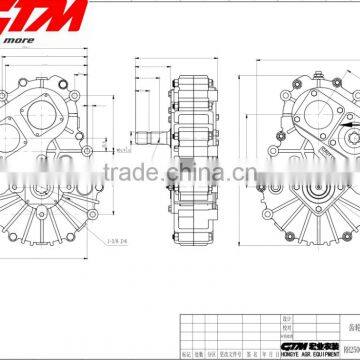

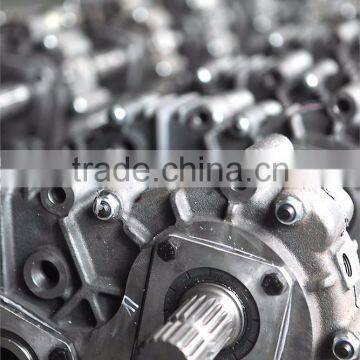

Quality Assurance grain auger gearbox for customization
- 20000 Set / Sets per Month
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GTM | Model Number: | RH25000 |
Gearing Arrangement: | Bevel / Miter | Output Torque: | 520Nm | Rated Power: | 75HP |
Input Speed: | 1000rpm | Output Speed: | 757.5rpm |
Product Description
Product details
Housing Material | QT450 |
Gear Shaft | 20CrMnTi |
Ratio | 1.32:1 |
Input speed | 1000 rpm |
Teeth | 31:41 |
Color | Customer Requests |
Bolt torque | 30-40NM |
Mould NO. | 4.5 |
Noise | 85db-1meter |
Weight | 67.5kg |
Product Keywords | grain auger gearbox |
Type | Ratio | Input rpm | Output rpm | Output Torque | Power |
RH25000 | 1.32:1 | 1000rpm | 757.5rpm | 520NM | 75HP |
Zhejiang Hongye Agricultural Equipment Science and Technology LTD. is a modern enterprise with a combination of development, production, sales and service for transmission products. It is professional in gearbox development and manufacturing with more than 20 years experience. It is manufacturing upward of 500 different kinds of gearbox, used in agricultural, industrial and some other fields.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.

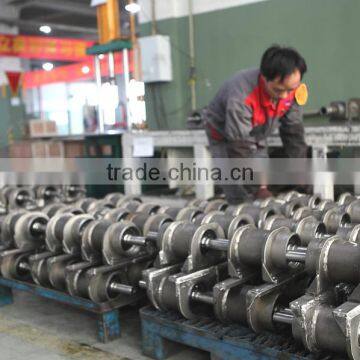

We own a series of high precision CNC workshop, high speed 5-axis linkage digital-controlling gear hobbing machines as well as automatic spray painting line All these equipments supply favorable managing condition and reliable detecting methods.
Our team
Our customer
300 employees, 10 engineers and 30 technicians, long & good business relationship with most famous agricultural machinery manufacturers in the world, such as Alamo, Star, Yanmar, John Deer,Astuant, GKN, YTO group,Weasler.
Sales network
Each year, GTM will take part in different kind of exhibition in China and many other countries.We patiently treat with each customer. GTM agricultural regards the global customer needs as own duty, takes root in China, provides service worldwide. Using technology to ensure excellent quality, using wisdom to create national brand.
Contact Us
- Zhejiang Hongye Agricultural Equipment Science And Technology Ltd.
- Contact nameAlbert Wang
- Phone86-576-86189508
- AddressNo.5 Changjiang Road, No.2 Economic Development Zone, Wenling, Taizhou,Zhejiang
