Help CenterHot Rolled Bimetal Fan Clutch Part Bimetal Stamping Strips
Related Products
-
ISO Thermostatic Bimetal Temperature Controller StripUS$ 0.6 - 1.4MOQ: 1000 Units -
Electronic Component : Thermal Switch Strip for Household AppliancesNegotiableMOQ: 1000 Pieces
-
Thermal Switch Strip for Household AppliancesUS$ 0.15 - 1.68MOQ: 1000 Pieces
-
Cooling System Thermal Bimetal Strips From ChinaUS$ 0.8 - 1.5MOQ: 1000 Pieces
-
Cooling System Thermal Bimetallic Strips From ChinaUS$ 0.8 - 1.5MOQ: 1000 Pieces
Themostatic bimetal types
The type of thermostatic bimetal depends on the application and the available space. Elements can be roughly classified into four main groups:
Beams,

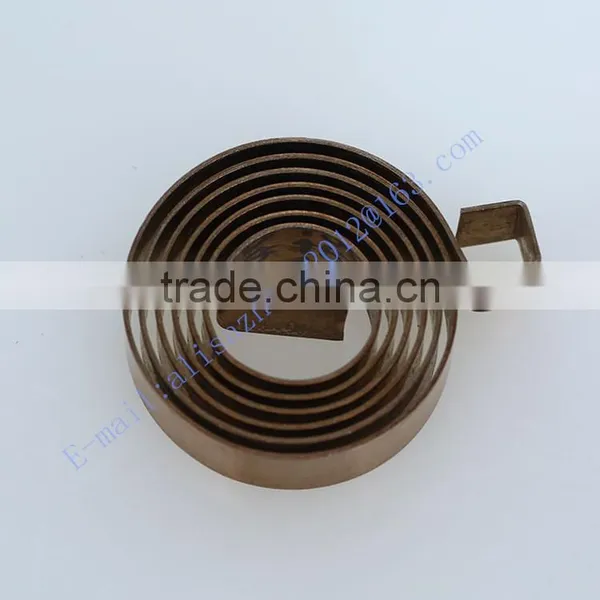

Coils,
Disks,
Formed elements.
Beams develop nearly linear motion. Coils (spiral, helical and double-helix coils) Disks move linearly or discontinuously (snap-action).
Formed elements include a wide range of regular or irregular shapes. The U-shape is very widespread. This type of element is employed when the available space will not permit the use of long, flat beams.
Generally speaking, coils are used wherever extensive motion is required, while beams are required for smaller movements to trip operating mechanisms.
some basic mechanism of bimetal strip :
1.Simple temperature -controlled switch
This type of mechanism is usd for drect switching of an electrical circuit or a mechanical part. When current is passed directly through the element , slow contact motion may result in sparking between the contacts.
2.Counter-acting arrangements
Faster response and higher sensitivity reduces the risk of sparking between contacts in elements with direct electrical heating .
3.Auxiliary thermal switches
The thermostatic bimetal does not form part of the electrical circuit and responds solely to the ambient temperature .
4.Magnetic restraint
a permanent magnet resistrains deflection until the thermostatic bimetal had developed a force sufficient to overcome that of the magnet ,thus causing the contacts to spring parts . Conversely , the contacts close when the element has cooled down.
Working procedure
Package :
Thanks for your reading . Have a nice day !
