Wuhu Boton Automobile Parts Factory is a professional thermostat manufacturer. We specialize in producing four series of products: Bimetal thermostatic coil and disc, heating chambers for engine carburetors, auto generator regulars, various auto glass lifter motor protectors.
Bimetal thermostat consists of two metallic strips ,and this part being adjusted the angle causing movement by the hotter temperature ,when heated up ,it bends in a pre-determined manner, and can be used to monitor, measure and regulate temperature.

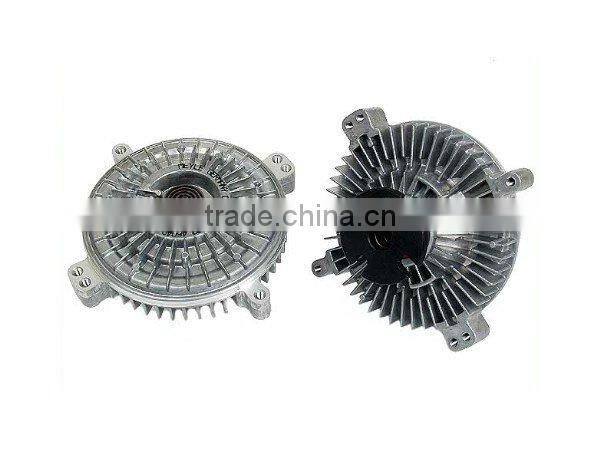

Its main application are in thermostats for heating chamber or fan clutch, but they are also used in control devices for instance in automobiles.
1) The thermostats that are used in refrigerator, household conditioner, car-conditioner,
cold-storage, water dispenser, electricity heating device, washing machine.
2) The rigid producing and checking rules and the technologically mature procedures
ensure the reliability and performance of thermostats, which will meet the higher
needs of clients.
3) Certificate: ISO 9001:2000
Thermostatic bimetal functions:
The effects of thermostatic bimetal curvature in response to a change in temperature are utilized in practical applications to achieve different aims. These can essentially be described by the following functions :measuring, limiting,controlling,compensation,pulse-generation,retardation.All these functions overlap to a certain extent so that a particular application may fall under several categories .
Measuring
Temperatures and certain electrical variables and their rate of change can be regulated by calibrated systems.
Examples:

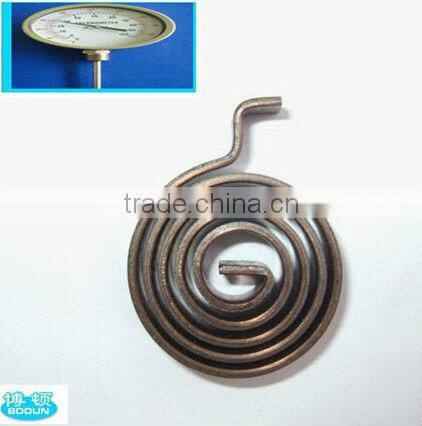

Spiral thermometers, Ammeters
Limiting
Trip functions are required at certain upper or lower limits in order to initiate or to cut out an operation.
Examples :
Automatic circuit breakers
Motor protection switches
Controlling
Within a certain range,functions are cut in or out ,or circuits made or broken,in order to maintain a certain average setting.
Examples:
Electric iron controls, Bypass valves
Compensation
A deviation from the initial condition is compensated for by the thermostatic bimetal action.
Examples :
Color television tube compensation,Measuring instruments with compensation for fluctuations in ambient temperature.
Pulse-generation
An operation is triggered at clocked intervals.
Examples:
Flasher relays, Hotplate heating coils
Retardation
An incoming signal (e.g. current)will only trigger an operation after a defined delay period.
Example:
Thermal relay
Our marketing:
overseas:BMW;AUDI;BENZ;NISSAN;TOYOTA;MITSUBISHI;HONDA;ISUZU;STEYR
domestic:No.1,No2, Brilliance Group, Jiang steam, Beiqi Fukuda, Baoding-greatwall,Cherokee,steyr , Yuchai, Isuzu
Characteristics:
Stable performance, high accuracy, small size, lightweight, high reliability, long lifespan, less interference to radio
Material information (TB208/110)
Testing Method
Working information
Package:
Thanks for your reading . Have a nice day !
