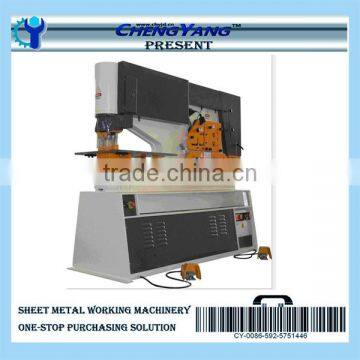

Hydraulic Combined Punching and Shearing Machine

Hydraulic Combined Punching and Shearing Machine thumbnail-1
Hydraulic Combined Punching and Shearing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
Xiamen Chengyang Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Power Source Hydraulic
Place of Origin Fujian, China
Brand Name chengyang
Model Number MHM-95
Voltage Customized
Power(W) 7.5Kw
Weight 2430 kgs
Dimension(L*W*H) 1900*790*1910mm
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

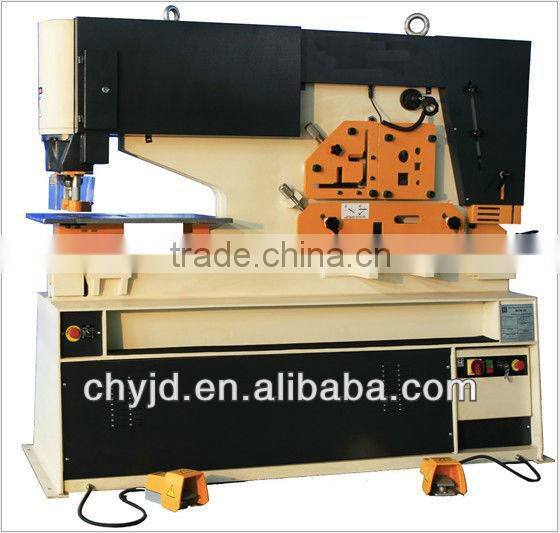

Hydraulic Combined punching and Shearing machine

Hydraulic Combined punching and shearing machine



Main Parameter

Model Unit MHM 70 MHM95 MHM125
Rated Capacity   70T 95T 125T
PUNCHING
Max.Capacity mm 26*20 27*25 35*25
Diameter & Thickness mm 57*9 57*12 67*16
Travel mm 55 80 80
Standard Throat Depth mm 305 355 355
Deep Throat( optional) mm 625 625 625
Standard Max.Punch mm 57 57 57
Optional Max.Punch mm 160 160 225
Max.Beam size mm 305 305 305
SHEARING
Plate Thickness mm 300*20 380*20 380*25
Max.sheet Width mm 375*15 480*15 600*15
45°angle shear,Max.45° mm 100*15 120*15 120*15
Angle Cutting
90°CUT mm 130*13 150*15 150*18
45°CUT mm 70*10 80*10 80*10
SECTION CUTTING
Round bar/Square steel mm 45 50 55
Channel/H-Beam* mm 130*65 160*90 200*100
T-Beam* mm 90*12 100*12 120*12
NOTCHING
Plate Thickness mm 12 13 13
Width-Rectangle mm 45 52 60
Deep-Rectangle mm 90 100 100
Deep-V-Shaped mm 60 70 80
Trimming mm 100*10 100*13 100*13
CORNER NOTCH*
Notching Max.Capacity mm 250*6 250*6 250*6
TUBE NOTCH
Max.pipe diameter mm 83 108 108
BENDING
Flat Steel Bending mm 250*13 250*20 250*22
Plate bending mm 500*3 500*3 700*3
PUNCHING AT NOTCH STATION
Deep throat mm 125 125 125
Max.Capacity mm 38*8 38*10 38*12
TECHNICAL DATA
Motor power kw 5.5 7.5 7.5
Machine net weight kg 1620/1990 2430/2880 3100/3620
Machine dimensions(L.W.H) cm 164*71*180 190*79*191 200*80*203

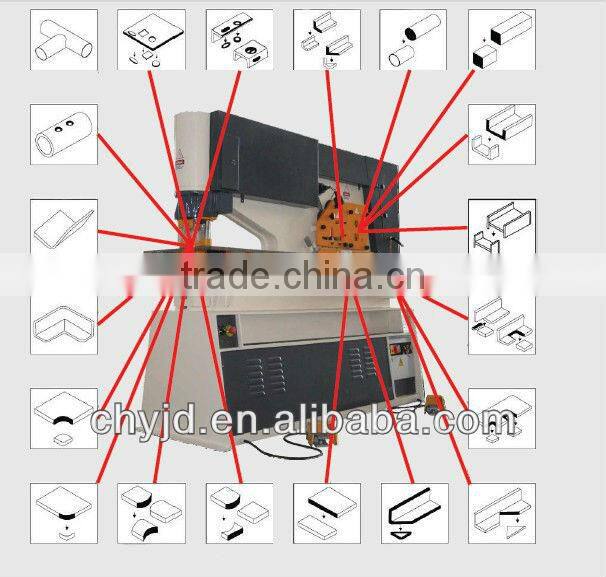

Working Capacity

Hydraulic Combined punching and shearing machine

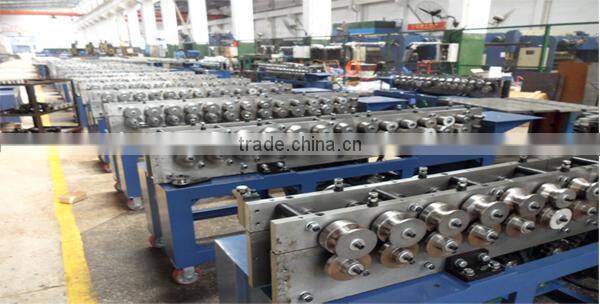

Company Environment:



Hydraulic Combined punching and shearing machineHydraulic Combined punching and shearing machineHydraulic Combined punching and shearing machine



Company Certificate:



Hydraulic Combined punching and shearing machine

Hydraulic Combined punching and shearing machine
