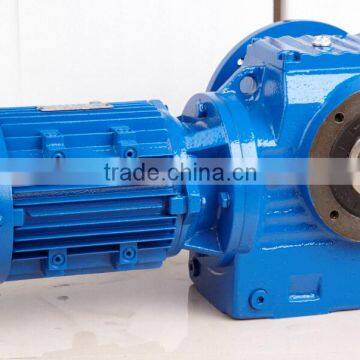

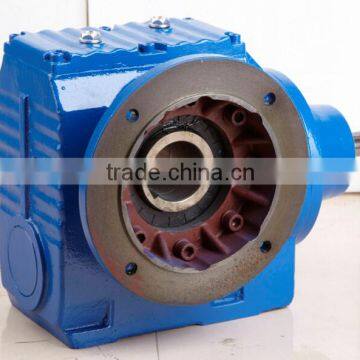

Help CenterS Series Helical Worm Speed Reducer
Related Products
-
K Series Helical-Spiral Bevel GearboxUS$ 200 - 200MOQ: 1 Set -
F Parallel Shaft Helical Gear UnitUS$ 150 - 150MOQ: 1 Set
-
R Series Inline Helical Gear MotorUS$ 200 - 200MOQ: 1 Set
-
H Series Industrial Modular Parallel GearboxUS$ 800 - 800MOQ: 1 Set
-
B Series Bevel-Helical Right Angle Shafts GearboxUS$ 1,000 - 1,000MOQ: 1 Set
Technical Data:
1. Power: 0.12-45KW
2. Ratio: 23.8-389
3. Torque:73-10200N.m
4.Input speed: 1450
5. Brand name:HB
Commerical Information:
1. MOQ: 1 sets
2. Packing method: Polywood
3. Delivery lead time: 20-25 days
4. Payment terms: FOB, CIF, DDP
5. Payment method: T/T, 30% in advance, 70% before delivery
6. Shipping port: Shanghai
Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC, bronze alloy and spun casting in worm wheel
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo
Application industries:
Modular, high standardization, components of few specifications and models.
Wide power, torque, speed ratio covering range.
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
