Automatic Robotic Lawn Mower With Sumsung Ltihium-ion Battery

Main Functions:

1. Lift sensor

There is a lift sensor located on each front wheel. If the mower was lifted 2cm from the ground in a level way, the blade stop working within 2s, but the wheel keep running. And the blades start cutting within 5s after two front wheels get back to ground.

2. Tilt sensor

There is tilt sensor installed on the mower too, when the mower was titled over 30 degree at any direction, it also will stop working within 2seconds

3. Bump sensor

Whole top cover is movable, the sensors are located all around the robot’s side and front, When the bump sensor is activated, the mower will stop movement in that direction and reverse itself away from the obstacle.

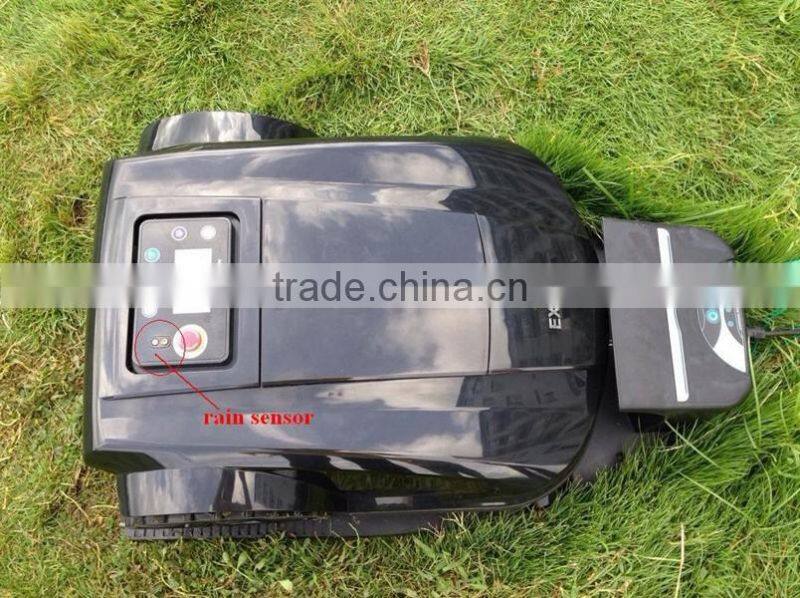

4. Rain sensor

There are two rain sensors on the top cover of mower. The mower will go back to the charging station automatically when it’s raining. Rain sensors can be selected from control panel.

Turn on it: the mower will go back home if it is raining

Turn off it: the mower will go on mowing when it is raining

5. Human sensor

Touch the handle when the mower is cutting, it will cease function within 0.5 seconds

6. Wireless controller

Remote-operated the mower

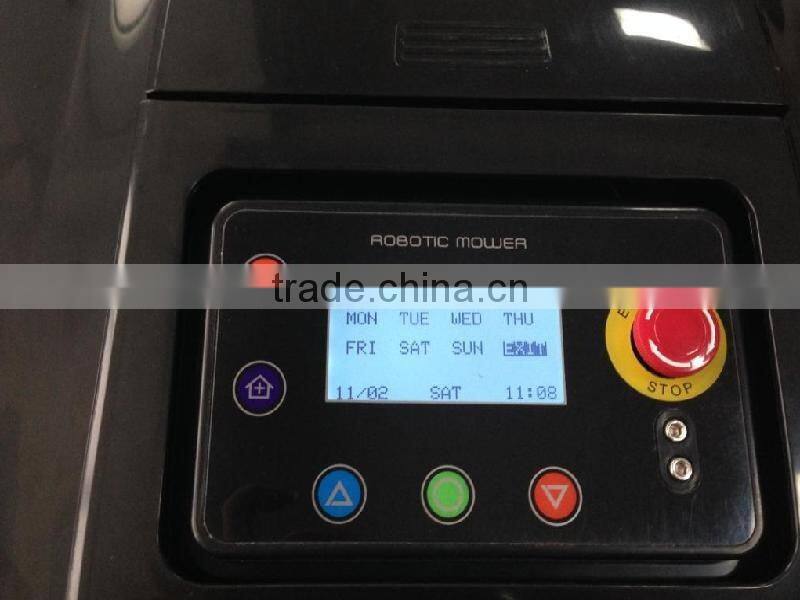

7. Mowing schedule

Set up one week (Monday to Sunday, one day for once) cutting schedule from control panel.

8. Anti-theft function

User must enter the correct password then the mower can be started. What’s more, the mower can not be turned on without charging station and remote control.

9. Humanistic cutting height selection

2.5cm-6cm humanistic design.

Easier for user to choose the cutting height

10. Auto recharge system

If the mower is powerless while it in operating, the cutting motor turn off at once and it will find the virtual wire then go alone it back to charging station for recharge automatically. (This allows you to keep the charger connected with the charging station all the time, even after the battery is fully charged.) On auto pattern, the mower will go on mowing after fully recharged. But if it is on manual pattern, it will just get back from charging station for a few centimeter after fully recharged.

11. Emergency stop switch

There is an emergency stop switch located at the top of mower which is red in color. If you press it in any case during operating, the mower will stop all movement and stop the rotating of blades immediately. Rotating the switch resets it and the mower is in taskbar by entering the correct password and choose operate pattern to restart it.

12. Overload protect

Each of the two blade motors and each of the two wheel driving motors are monitored continuously during operation for any situation that may cause these motors to over-load. In the event this is detected, the mower will stop operating.

13. Waterproof

Waterproof design, there is an inner cover under top cover which protect inside parts from humidify.

14. LED display

15. Electric compass

It’s keep mower working well in a slope lawn.

16. Pressure sensor, if child sits on the mover, it stops working within 2s.

17. Cutting area setting. It could set 3 cutting areas. The user could separate a big area into 3 areas at most.

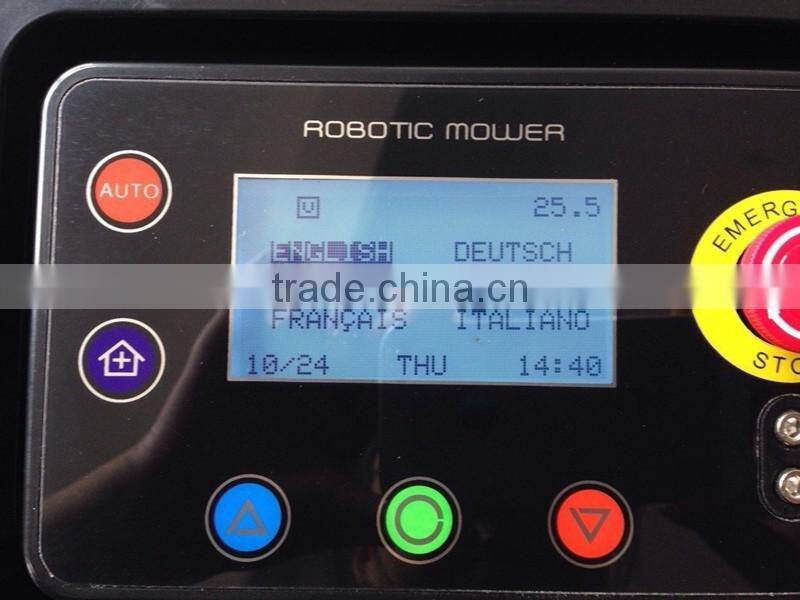

18. Different language selection.

English,French,Danish, Swedish, Finnish,Italy, German, Norwegian.

19.Range option

User can choose the distance when robot hits the wire according the different conditions of lawn.


Your S520 is supplied with:

1.Charger
2.Virtual wire (100m)
3.Pegs(100pcs)
4.virtual wire connectors(10pcs)
5.Charging station
6.Inner hexagon spanner
7.Stakes (4pcs)
8.Blades
9.English manual
10.wifi manual

Rain Cover:
material: PC
Product Size:100*70*40cm
Packing Size:101*71*7cm
G.W./N.W.:8.5KG/7.5KG

--Certificate:
