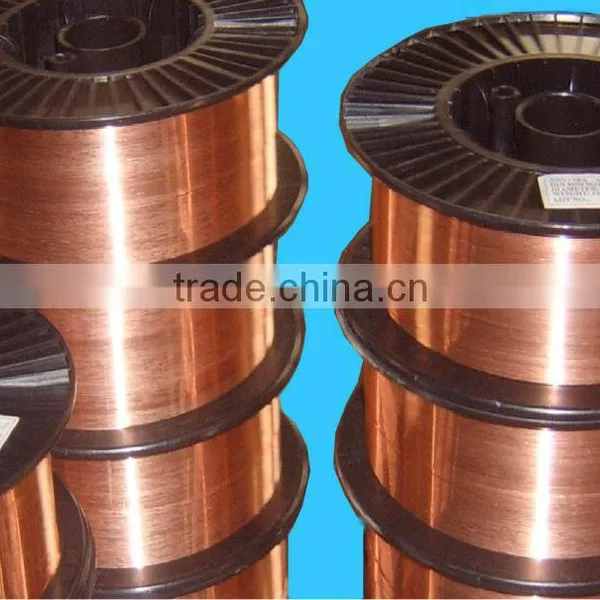

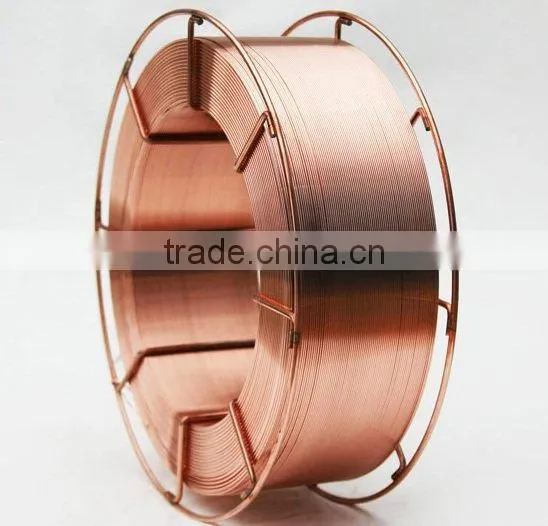

Copper Alloy Material Welding Wire ER70S-6 (GMAW) 0.8/1.0/1.2 mm
1.Diameter : 0.6mm,0.8mm,0.9mm,1.0mm,1.2mm
2.GB standard: GB ER50-6
3.AWS standard: AWS ER70S-6
4.Delivery time: 10days for 20ft container after order comfirmation
5.Surface treatment: copper coated
6.Material: Low alloy steel
7..Packing:15kg,20kg precision layer wound/spool.one spool/carton. 63cartons/wooden pallet.
8.Advantages: This ER70s-6 CO2 welding wire has excellent mechanical performance such as
depositing speed and high efficiency, stable arc, little splash, good welding seam. This series
of welding wires are suitable for the low carbon steel and low alloy structure, vehicle, bridge,
container, construction machinery, boilers and construction etc.have depositing speed and high
efficiency, stable arc, little splash, good welding seam.
*Avaliable mig wire size : 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm
*Packing: 5kg, 15kg, 20kg/roll
Application
CO2 Welding Wire ER70S-6 Used for welding low carbon steel and low alloy steel
structures, especially for welding of thin plates and can be applied to carbon steels, ship
building steel (A , B, D, E, A36, D36, E36) and equivalent mild steel or 550Mpa grade
mild alloy steel, such as container buildings, bridge building, machinery manufacturing,
railway construction, pressure vessels for semi-auto or automatic gas shielded welding
and general welding purposes etc.
Product features
CO2 Welding Wire ER70S-6 is a kind of mild steel copper coated welding wire, suitable
for 100% CO2 and argon and CO2 mixed gas protective welding with stable feasibility,
good welding seams, less spatters and excellent welding process properties. Suitable for
all-position welding work.
Main Characteristics: All position welding, vertical-down ward welding ; Little splash,
stable eletric arc and little weld fume; Good removability of slag, beautiful welding seam
and can obtain high welding speed in fillet welding.
Protection gas: 100% CO2
18Equivalent Standard: AWS A 5
| Size | Weight/roll | Packing size | Packing |
| 0.8mm | 15kg | 180mm*180mm*110mm | 15kg/carton |
| 1.0mm | 20kg | 180mm*180mm*110mm | 20kg/carton |
| 1.2mm | 20kg | 180mm*180mm*110mm | 20kg/carton |
| 1.6mm | 20kg | 180mm*180mm*110mm | 20kg/carton |
| 2.0mm | 20kg | 180mm*180mm*110mm | 20kg/carton |
- Diameter: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm
- Chemical composition: C 0.06-0.15, Mn 1.40-1.85, Si 0.80-1.15, P < =0.025, S < =0.035,
Cu < =0.35, Ni < =0.30, Cr < =0.20
- Weight of spool: 5kg, 15kg and 20kg.
- Packing of welding wire:
| Wire Size | Spool Size | Weight |
| 0.8mm 1.0mm 1.2mm 1.6mm | D100mm D200mm D270mm D300mm K300mm | 1kg, 5kg, 15kg, 20kg |
| chemical composition of welding wire(%) | C | Mn | Si | P | S | Cr | Ni | Cu |
| 0.06~0.15 | 1.40~1.85 | 0.80~1.15 | ≤ 0.025 | ≤ 0.035 | - | - | ≤ 0.50 | |
| Mechanical Properties or Deposited Metal | Yield strengthσ 0.2(Mpa) | Tensile strengthσ b(Mpa) | Elongationδ 5(%) | AKV impact(J) | ||||
| ≥ 420 | ≥ 500 | ≥ 22 | ≥ 27(-29) | |||||
| Wire Size (mm) | φ 0.8 | φ 1.0 | φ 1.2 | φ 1.6 | Welding position |
Service we can provide
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2.We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact
us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
Undertaking
All the products from us are high quality without any fake or dangerous materials inside;
All the deliveries will be arranged within 15~30 working days; in case of force majeure, we will
keep you posted in time.
