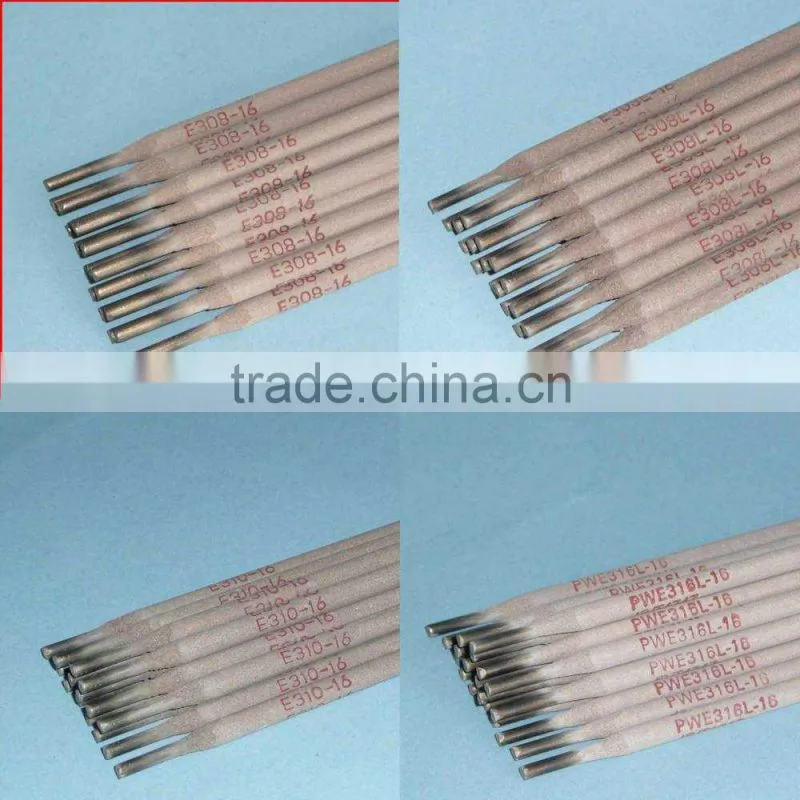

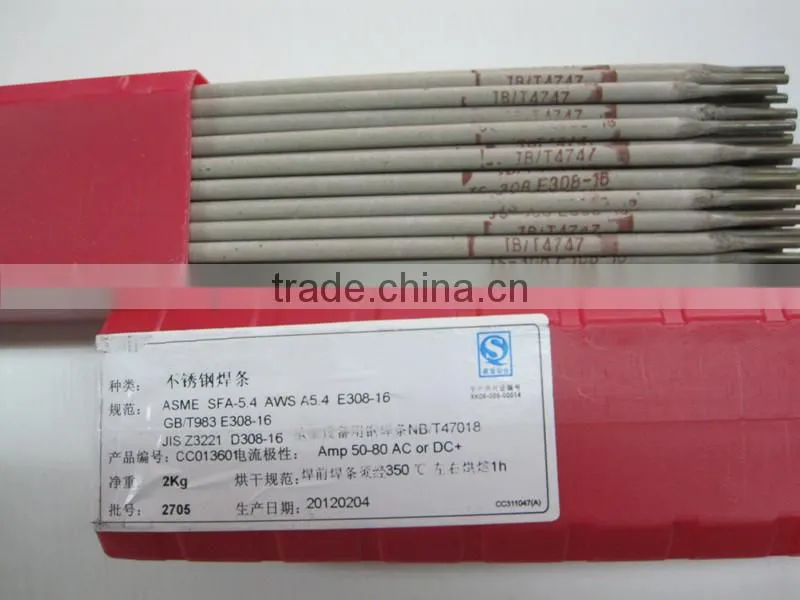

AWS E308-16 stainless steel welding rod
- 1. Stainless steel weldin grods E308L
- 2. Sizes: 2.5mmX300mm-4.0mmX400mm
- 3. Packing : 20kf/carton or as required
Features about the E308-16 stainless steel welding rod
1. Model: A102, AWS 308-16
2. Usage:Used for welding corrosion-resistant 0Cr19Ni9 and 0Cr19Ni11Ti stainless steel structures below 300°C.
3. Introduction: A102 is a kind of Cr19Ni10 stainless steel electrode with lime-titania type coating. The weld metal has excellent mechanical properties and intercrystalline corrosion-resistance. It has excellent welding performance and blowhole-resistance. The coating is red-resistant and crack-resistant. AC/DC.
Chemical Composition of Deposited Metal (%)
Chemical Composition |
C |
Mn |
Si |
S |
P |
Cu |
Ni |
Mo |
Cr |
Guarantee Value |
≤0.08 |
0.5~2.5 |
≤0.90 |
≤0.030 |
≤0.040 |
≤0.75 |
9.0~11.0 |
≤0.75 |
18.0~21.0 |
Mechanical Properties of Deposited Metal
Test Item |
Rm(MPa) |
A(%) |
Guarantee Value |
≥550 |
≥35 |
Reference Current(AC, DC+)
Electrode Diameter(mm) |
φ2.0 |
φ2.5 |
φ3.2 |
φ4.0 |
φ5.0 |
Welding Current (A) |
40~80 |
50~100 |
70~130 |
100~160 |
140~200 |
Inner packing:
1) 2.5mm x 300mm,1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
2) 3.2mm x 350mm, 1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
3) 4.0mm x 350mm, 1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
