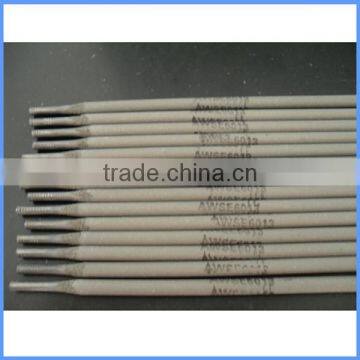

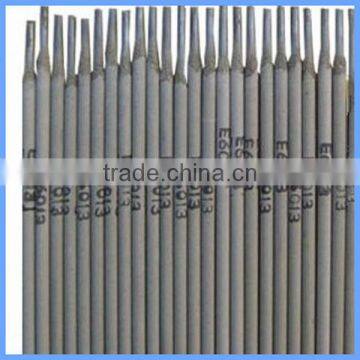

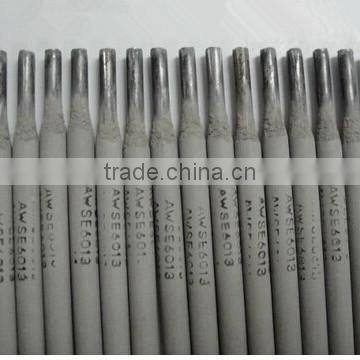

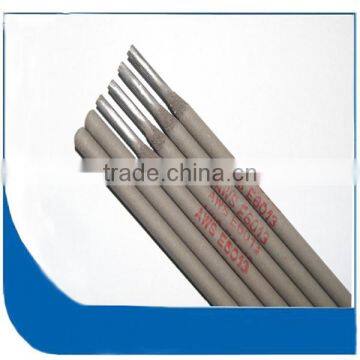

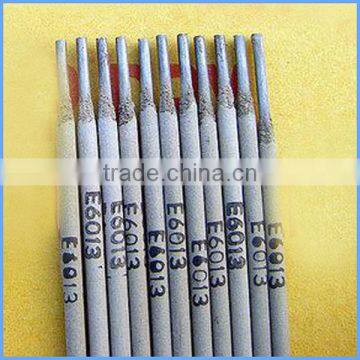

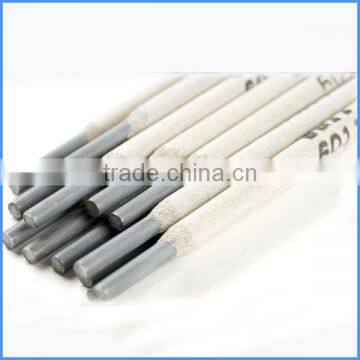

Low Carbon E6013 Welding Rod 2.5mm/3.2mm/4.0mm
Description for e6013 welding rod
1, Model:GB/T E4313;JIS D4313AWS E6013
2, Available size: 2.5mm x 300/350mm;3.2mm x 350mm;4.0mm x 400mm; 5.0mm x 500mm
3, Chemical Composition: C ≤0.12, Mn 0.30--0.60, Si≤0.35, S≤0.035, P≤0.040
4, It is suitable for all position welding of steel sheets and irregular joints even under unfavorable
conditions.
5, It has excellent welding technological performances
6, The arc is stable and the spatter loss is negligible
7, The slag is fluid and when hardened it is compact and easy to remove
8, It is better for welding structures of steel sheets. Vehicles, buildings, machinery-manufacture,
vessels and various structures of low carbon steel
9, Packing in 2.5kg or 5kg as one box, 20kg per one carton
10.Application:Used for welding in all position, it has excellent weldability and is suitable for welding low carbon
steel light-gauge sheet or light structrues where beautiful bead apperance is requested. such as vehicles,building and mechinery etc.
Specfication
| Main information | |||
| Power:AC,DC/electrode negative or positive | |||
| Standard(mm) | Current Range(A) | ||
| Diameter | Length | Downward Welding | vertical up welding |
| 2 | 250 | 30-50 | 20-40 |
| 2.5 | 300 | 60-100 | 50-90 |
| 3.2 | 350 | 100-140 | 90-120 |
| 4 | 400 | 140-190 | 120-170 |
| 5 | 400 | 190-250 | 140-210 |
| Deposited metal chemical compositions(%) | |||||
| C | Mn | Si | S | P | |
| ≤0.12 | 0.30-0.60 | ≤0.25 | ≤0.035 | ≤0.040 | |
| Deposited metal mechanical property | |||||
| Text Items | Rm(Mpa) | Rel(Mpa) | A(%) | KV2(J) | |
| Guarantee Value | ≥420 | ≥330 | ≥22 | ||
Electric Shock can kill. Do not permit electrically live parts or electrodes to contact skin, clothing
or gloves if they are wet. Insulateyourself from work and ground.
Fumes and Gases can be dangerous to your health. Keep fumes and gases away from your
breathing zone and general area. Keep your head out of fumes.Use enough ventilation or exhaust
at the arc or both.
Arc Rays can injure eyes and barn skin. Wear correct eye, ear. And body protection.
Product show for electric welding rod aws e6013
Service we can provide
1. Good after sales service: Any small problem happening will be solved at the most prompt time
2. We have many years of experience, we have specializing in fastener
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price.
