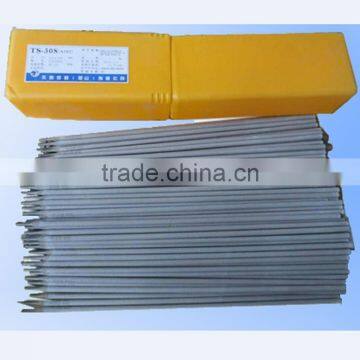

SS Welding rod welding electrodes AWS E308 , E308L
- 1. Stainless steel weldin grods E308, E308L , E308L-16
- 2. Sizes: 2.5mmX300mm-4.0mmX400mm
- 3. Packing : 20kf/carton or as required
Features about the SS welding rod welding electrode E308, E308L
1. Model: A102, AWS 308-16
2. Usage:Used for welding corrosion-resistant 0Cr19Ni9 and 0Cr19Ni11Ti stainless steel structures below 300°C.
3. Introduction: A102 is a kind of Cr19Ni10 stainless steel electrode with lime-titania type coating. The weld metal has excellent mechanical properties and intercrystalline corrosion-resistance. It has excellent welding performance and blowhole-resistance. The coating is red-resistant and crack-resistant. AC/DC.
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P | Cu | Ni | Mo | Cr |
Guarantee Value | ≤0.08 | 0.5~2.5 | ≤0.90 | ≤0.030 | ≤0.040 | ≤0.75 | 9.0~11.0 | ≤0.75 | 18.0~21.0 |
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | A(%) |
Guarantee Value | ≥550 | ≥35 |
Reference Current(AC, DC+)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 40~80 | 50~100 | 70~130 | 100~160 | 140~200 |
Inner packing:
1) 2.5mm x 300mm,1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
2) 3.2mm x 350mm, 1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
3) 4.0mm x 350mm, 1-5kg/inner box + plastic bag, 20kg/ctn,1ton/pallet
