aluminium scaffold plank steel scaffolding walk boards

By steel pallet or according to your request

Specifications

1.aluminium plank have good quality
2.The most competitive price
3.Raw material Q234 Q345
4.Our best service

aluminium scaffold plank steel scaffolding walk boards

The general single-tube column scaffold bears capacity of up to 10kN ~ 35kN ,when the scaffolding geometry and structure is compliant with the relevant requirements. Steel walk board planks easy disassembly, erection and flexible .Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold. Steel walk board planks compare with the economy.Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry, focus on improving working capital utilization rate of steel, the material consumption can be achieved better economic results. Fastening steel frame construction steel per square meter equivalent to about 15 kg.

Our Advantages:

1. Have larger capacity . The general single-tube column scaffold bears capacity of up to 10kN ~ 35kN ,when the scaffolding geometry and structure is compliant with the relevant requirements.

2. Steel walk board planks easy disassembly, erection and flexible .Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.

3. Steel walk board planks compare with the economy.Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry, focus on improving working capital utilization rate of steel, the material consumption can be achieved better economic results. Fastening steel frame construction steel per square meter equivalent to about 15 kg.





Product	aluminium scaffold plank steel scaffolding walk boards
Material	Q195-Q235
Width	210,225,240,250,420,480,500mm
Thickness	1.0-4.0mm
Surface	black phosphating,pear nickel,bright chrome plated,black electrophoresis,black sand powder coated or customized
Techincal	Heat treatment . Forged ,Cold-Forming .Polishing.Grinding.Chrome plating
Length	as customer's requirement
Terms of payment	30% deposit then pay balance after received copy of B/L or L/C at sight
Delivery	within 20 days after received deposit or L/C
Package	packed in bulk or in bundles, as per client's request (generally in 40'HQ)
Production capacity	5,000 tons per month



 Specifications

210mm Plank	Weight(kg)	240mm Plank	Weight(kg)
210*45*1.0*1000mm	3.15	240*45*1.0*1000mm	3.65
210*45*1.0*2000mm	5.96	240*45*1.0*2000mm	6.49
210*45*1.0*3000mm	8.78	240*45*1.0*3000mm	9.55
210*45*1.0*4000mm	11.59	240*45*1.0*4000mm	12.61
210*45*1.1*1000mm	3.41	240*45*1.1*1000mm	3.72
210*45*1.1*2000mm	6.49	240*45*1.1*2000mm	7.06
210*45*1.1*3000mm	9.56	240*45*1.1*3000mm	10.41
210*45*1.1*4000mm	12.63	240*45*1.1*4000mm	13.75
210*45*1.2*1000mm	3.67	240*45*1.2*1000mm	4.01
210*45*1.2*2000mm	7.01	240*45*1.2*2000mm	7.63
210*45*1.2*3000mm	10.35	240*45*1.2*3000mm	11.26
210*45*1.2*4000mm	13.68	240*45*1.2*4000mm	14.89
250mm Plank	Weight(kg)	Plank with hook
250*50*1.0*1000mm	3.69	Specification	Weight(kg)
250*50*1.0*2000mm	6.92
250*50*1.0*3000mm	10.15	420*45*1.1mm	12.75
250*50*1.0*4000mm	13.38	420*45*1.2mm	13.68
250*50*1.1*1000mm	6.96	450*45*1.0mm	11.1
250*50*1.1*2000mm	7.52	450*45*1.1mm	12.75
250*50*1.1*3000mm	11.05	480*45*1.0mm	12.56
250*50*1.1*4000mm	14.58	480*45*1.1mm	13.64
250*50*1.2*1000mm	4.29	480*45*1.2mm	14.64
250*50*1.2*2000mm	8.12	500*50*1.0mm	13.1
250*50*1.2*3000mm	11.95	500*50*1.1mm	14.26
250*50*1.2*4000mm	15.78	500*50*1.2mm	15.29



Galvanized walk board

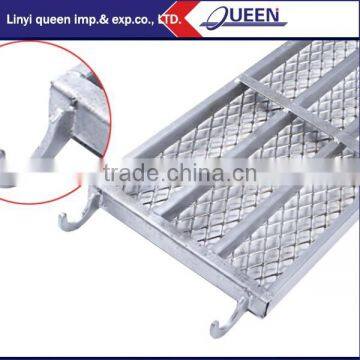

Walk board with hooks

We are producing

Walk board used in ringlock

Our package show



Three modes of transportation can be available: land transportation, railway transportation

and sea transportation (shipping at Qingdao).
