Construction Scaffold heavy Duty Walking Plank with Hook
The general single-tube column scaffold bears capacity of up to 10kN ~ 35kN ,when the scaffolding geometry and structure is compliant with the relevant requirements. Steel walk board planks easy disassembly, erection and flexible .Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold. Steel walk board planks compare with the economy.
Feature
1. Have larger capacity . The general single-tube column scaffold bears capacity of up to 10kN ~ 35kN .
2. Steel walk board planks easy disassembly, erection and flexible .Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.
3. Steel walk board planks compare with the economy.Processing is simple, a relatively low investment costs
Description
| Product | Construction Scaffold heavy Duty Walking Plank with Hook |
| Material | Q195-Q235 |
| Width | 210,225,240,250,420,480,500mm |
| Thickness | 1.0-4.0mm |
| Surface | black phosphating,pear nickel,bright chrome plated,black electrophoresis,black sand powder coated or customized |
| Techincal | Heat treatment . Forged ,Cold-Forming .Polishing.Grinding.Chrome plating |
| Length | as customer's requirement |
| Terms of payment | 30% deposit then pay balance after received copy of B/L or L/C at sight |
| Delivery | within 20 days after received deposit or L/C |
| Package | packed in bulk or in bundles, as per client's request (generally in 40'HQ) |
| Production capacity | 5,000 tons per month |
Specifications
| 210mm Plank | Weight(kg) | 240mm Plank | Weight(kg) |
| 210*45*1.0*1000mm | 3.15 | 240*45*1.0*1000mm | 3.65 |
| 210*45*1.0*2000mm | 5.96 | 240*45*1.0*2000mm | 6.49 |
| 210*45*1.0*3000mm | 8.78 | 240*45*1.0*3000mm | 9.55 |
| 210*45*1.0*4000mm | 11.59 | 240*45*1.0*4000mm | 12.61 |
| 210*45*1.1*1000mm | 3.41 | 240*45*1.1*1000mm | 3.72 |
| 210*45*1.1*2000mm | 6.49 | 240*45*1.1*2000mm | 7.06 |
| 210*45*1.1*3000mm | 9.56 | 240*45*1.1*3000mm | 10.41 |
| 210*45*1.1*4000mm | 12.63 | 240*45*1.1*4000mm | 13.75 |
| 210*45*1.2*1000mm | 3.67 | 240*45*1.2*1000mm | 4.01 |
| 210*45*1.2*2000mm | 7.01 | 240*45*1.2*2000mm | 7.63 |
| 210*45*1.2*3000mm | 10.35 | 240*45*1.2*3000mm | 11.26 |
| 210*45*1.2*4000mm | 13.68 | 240*45*1.2*4000mm | 14.89 |
| 250mm Plank | Weight(kg) | Plank with hook | |
| 250*50*1.0*1000mm | 3.69 | Specification | Weight(kg) |
| 250*50*1.0*2000mm | 6.92 | ||
| 250*50*1.0*3000mm | 10.15 | 420*45*1.1mm | 12.75 |
| 250*50*1.0*4000mm | 13.38 | 420*45*1.2mm | 13.68 |
| 250*50*1.1*1000mm | 6.96 | 450*45*1.0mm | 11.1 |
| 250*50*1.1*2000mm | 7.52 | 450*45*1.1mm | 12.75 |
| 250*50*1.1*3000mm | 11.05 | 480*45*1.0mm | 12.56 |
| 250*50*1.1*4000mm | 14.58 | 480*45*1.1mm | 13.64 |
| 250*50*1.2*1000mm | 4.29 | 480*45*1.2mm | 14.64 |
| 250*50*1.2*2000mm | 8.12 | 500*50*1.0mm | 13.1 |
| 250*50*1.2*3000mm | 11.95 | 500*50*1.1mm | 14.26 |
| 250*50*1.2*4000mm | 15.78 | 500*50*1.2mm | 15.29 |
Galvanized walk board
Walk board with hooks
We are producing

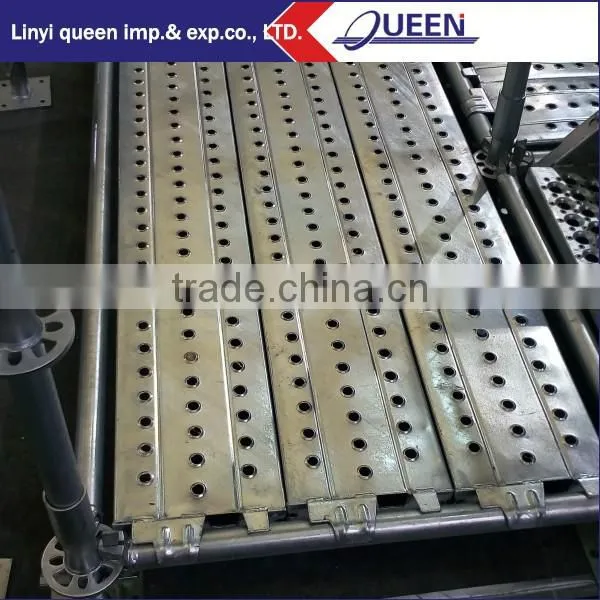

Walk board used in ringlock
Our package show
