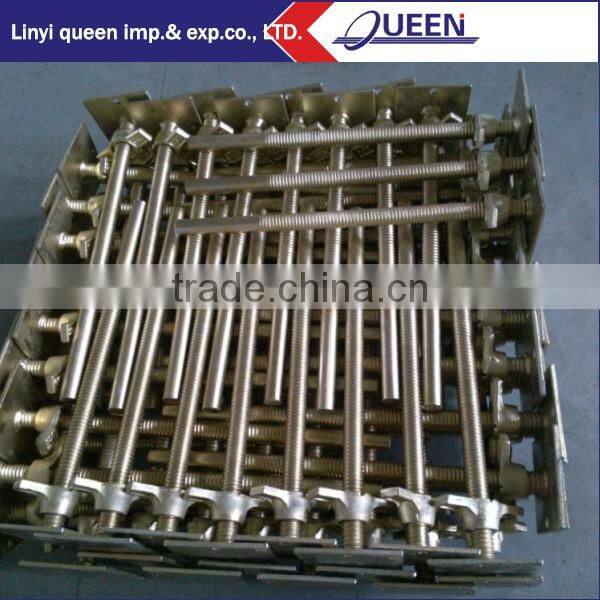

Painted solid or Hollow Adjustable Jack Base/u head jack base/moving U-head base
Base jack usually used as the base which holds the standard or the formwork of the scaffold,adjusting the height of the scaffold as well as making the whole scaffolding more stable.
Manufacturer | QUEEN | Size of Plate | 120x120x4mm 140x140x6mm 150x150x6mm |
Available Material | Stainless Steel/Steel/Brass/Bronze/Iron/Carbon Steel/Alloy Steel | U head Size | 100*100*45*3.5mm/165*165*100*4mm or customized |
certificate | ISO9001:2000 SGS | Dimensions | Hollow type 48X4.0mm 38X4.0 mm Solid type Diameter 32mm/34mm |
Height | 300mm/450mm/500mm/600mm /750mm/950mm/1000mm | Heat Treatment | Tempering,Hardening, Stress Relieving,etc. |
Carton Size | 25cmx25cmx13cm | Packing | Regular and Strong Packing |
Lead Time | 20 Working Days | Warranty | 100% |
Surface | Hot-dip galvanization, electro galvanization | ||
Applicable Scope | Transportation Facilities,Electro-mechanical Equipment,Building,Machine, Automotive Industry,etc. | ||
Manufacture Process | Heading/washer assembly/Threading/Secondary machine/heat treatment/plating/Anti-slipping/Baking/QA/Package/Shipping | ||
Delivery Time | 30 days upon prepayment | ||
Package | in steel pallet, or as your request | ||
Name | Type | Size | |
Screw rod | Base plate | ||
Adjustable Base Jack | Hollow | 38*4*600mm | 150*150*5mm |
42*4*600mm | 150*150*5mm | ||
48*4*600mm | 150*150*5mm | ||
38*5*400mm | 150*150*5mm | ||
38*5*500mm | 150*150*5mm | ||
38*5*600mm | 150*150*5mm | ||
42*5*500mm | 150*150*5mm | ||
42*5*750mm | 150*150*5mm | ||
48*5*400mm | 150*150*5mm | ||
48*5*500mm | 150*150*5mm | ||
48*5*600mm | 150*150*5mm | ||
Adjustable Base Jack | Solid | 30*400mm | 120*120*5mm |
30*600mm | 120*120*5mm | ||
32*400mm | 120*120*5mm | ||
32*600mm | 120*120*5mm | ||
34*400mm | 120*120*5mm | ||
34*600mm | 120*120*5mm | ||
35*400mm | 150*150*5mm | ||
35*500mm | 150*150*5mm | ||
35*600mm | 150*150*5mm | ||
38*500mm | 150*150*5mm | ||
38*750mm | 150*150*5mm | ||
45*400mm | 150*150*5mm | ||
45*500mm | 150*150*5mm | ||
45*600mm | 150*150*5mm | ||
Adjustable U-head Jack | Solid | 30*400mm | 150*120*50*5mm |
30*600mm | 150*120*50*5mm | ||
32*400mm | 150*120*50*5mm | ||
32*600mm | 150*120*50*5mm | ||
34*400mm | 150*120*50*5mm | ||
34*600mm | 150*120*50*5mm | ||

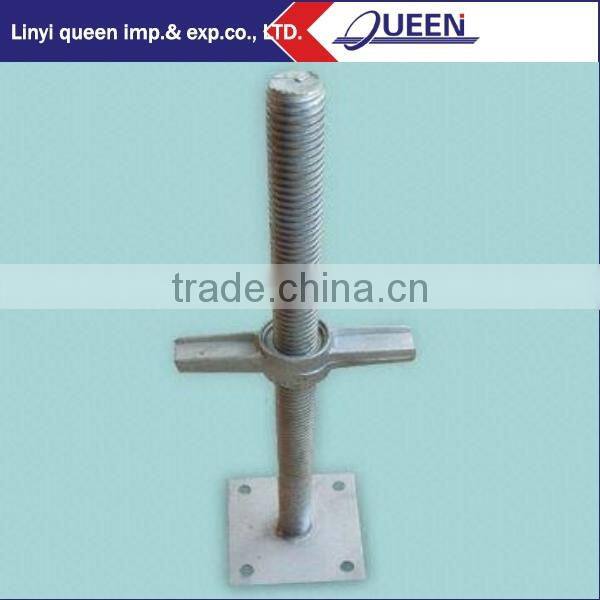

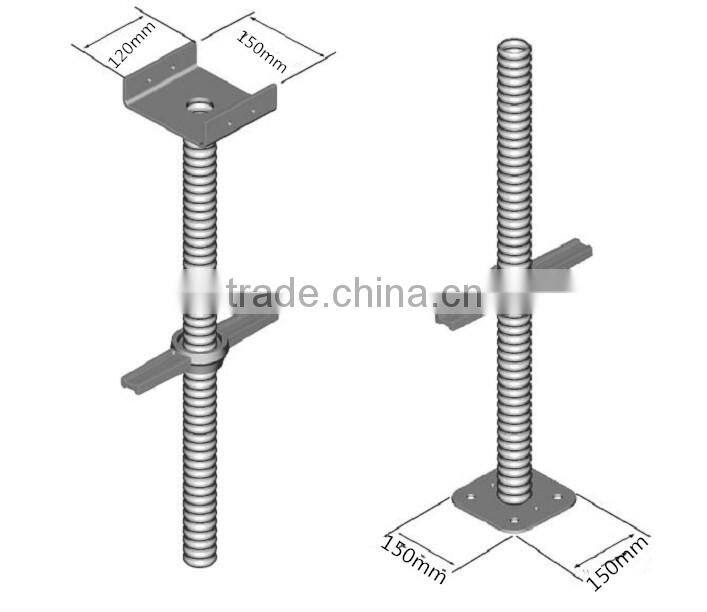

U-head screw jack
Widely used many place,this base jack very flexible,add galvanized surface.
Hollow screw base jack
Hollow jack,have nice surface and highly cost effective .

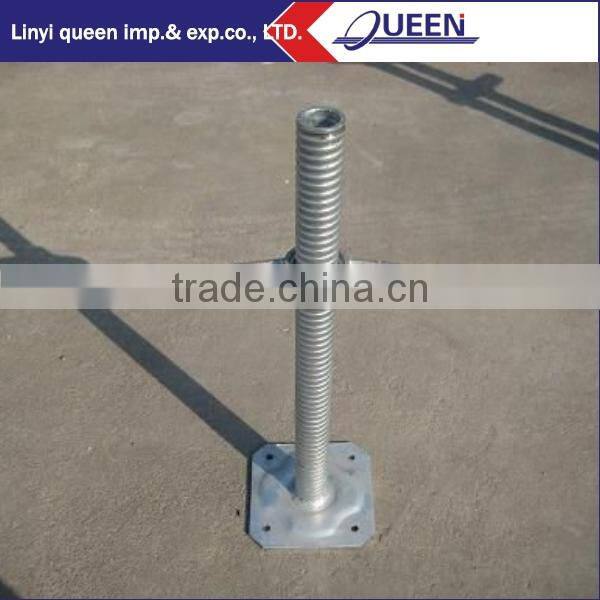

Solid screw base jack
This base jack have higher strength loading capacity.
Base jack used in scaffolding system
Base jack package
Our Main Business:
(1). System scaffolding:
Include: Kwikstage system scaffolding and accessories; Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Haki system scaffolding and accessories.
(2). Couplers/Clamps:
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frames
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.
(5). Planks/ Toe Board:
Both aluminum and steel planks can be manufactured in our factory.
(6). Others
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
