Home > Products > Screw Jack > stainless steel removable metal base jack post with base plate
stainless steel removable metal base jack post with base plate
- 100000 Piece / Pieces per Month
- QingDao
- T/T Credit Card
You May Like
-
adjustable base jack/leveling screw jack/base plate
-
adjustable U head screw jack base for scaffolding formwork accessories
-
Scaffolding Adjustable Screw jacks DIA 38 or 48mm hollow base jack with swivel plated
-
U-head base jack,leveling jack ,adjustable screw base jack for scaffolding
-
Base Jack Used In Frame Scaffold System Leveling Jack with Swivel Base Plate
-
Painted solid or Hollow Adjustable Jack Base/u head jack base/moving U-head base
Product Details
Place of Origin | Shandong, China | Brand Name | QUEEN | |
Model Number | stainless base jack |
By carton,box or according to your request
Product Description

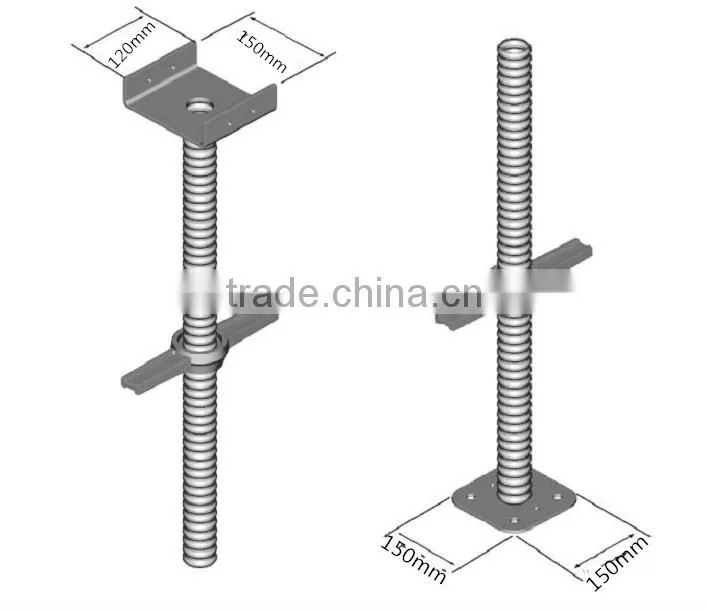

stainless steel removable metal base jack post with base plate
Base jack usually used as the base which holds the standard or the formwork of the scaffold,adjusting the height of the scaffold as well as making the whole scaffolding more stable.
Manufacturer | QUEEN | Size of Plate | 120x120x4mm 140x140x6mm 150x150x6mm |
Available Material | Stainless Steel/Steel/Brass/Bronze/Iron/Carbon Steel/Alloy Steel | U head Size | 100*100*45*3.5mm/165*165*100*4mm or customized |
certificate | ISO9001:2000 SGS | Dimensions | Hollow type 48X4.0mm 38X4.0 mm Solid type Diameter 32mm/34mm |
Height | 300mm/450mm/500mm/600mm /750mm/950mm/1000mm | Heat Treatment | Tempering,Hardening, Stress Relieving,etc. |
Carton Size | 25cmx25cmx13cm | Packing | Regular and Strong Packing |
Lead Time | 20 Working Days | Warranty | 100% |
Surface | Hot-dip galvanization, electro galvanization | ||
Applicable Scope | Transportation Facilities,Electro-mechanical Equipment,Building,Machine, Automotive Industry,etc. | ||
Manufacture Process | Heading/washer assembly/Threading/Secondary machine/heat treatment/plating/Anti-slipping/Baking/QA/Package/Shipping | ||
Delivery Time | 30 days upon prepayment | ||
Package | in steel pallet, or as your request |
Name | Type | Size | |
Screw rod | Base plate | ||
Adjustable Base Jack | Hollow | 38*4*600mm | 150*150*5mm |
42*4*600mm | 150*150*5mm | ||
48*4*600mm | 150*150*5mm | ||
38*5*400mm | 150*150*5mm | ||
38*5*500mm | 150*150*5mm | ||
38*5*600mm | 150*150*5mm | ||
42*5*500mm | 150*150*5mm | ||
42*5*750mm | 150*150*5mm | ||
48*5*400mm | 150*150*5mm | ||
48*5*500mm | 150*150*5mm | ||
48*5*600mm | 150*150*5mm | ||
Adjustable Base Jack | Solid | 30*400mm | 120*120*5mm |
30*600mm | 120*120*5mm | ||
32*400mm | 120*120*5mm | ||
32*600mm | 120*120*5mm | ||
34*400mm | 120*120*5mm | ||
34*600mm | 120*120*5mm | ||
35*400mm | 150*150*5mm | ||
35*500mm | 150*150*5mm | ||
35*600mm | 150*150*5mm | ||
38*500mm | 150*150*5mm | ||
38*750mm | 150*150*5mm | ||
45*400mm | 150*150*5mm | ||
45*500mm | 150*150*5mm | ||
45*600mm | 150*150*5mm | ||
Adjustable U-head Jack | Solid | 30*400mm | 150*120*50*5mm |
30*600mm | 150*120*50*5mm | ||
32*400mm | 150*120*50*5mm | ||
32*600mm | 150*120*50*5mm | ||
34*400mm | 150*120*50*5mm | ||
34*600mm | 150*120*50*5mm |
U-head screw jack
Widely used many place,this base jack very flexible,add galvanized surface.

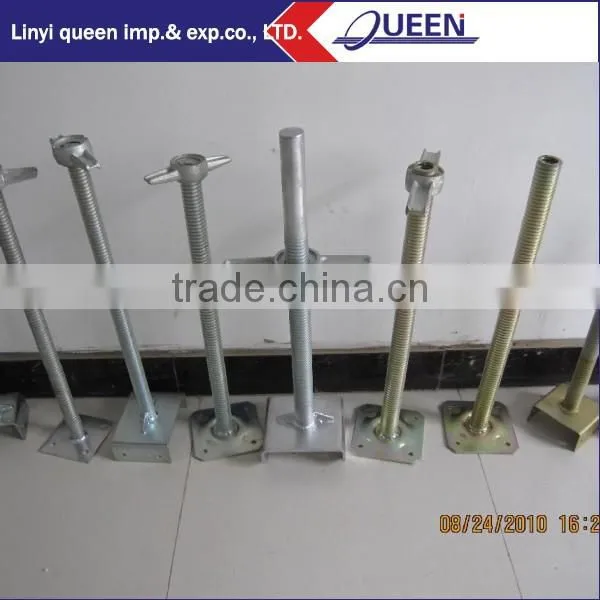

Hollow screw base jack
Hollow jack,have nice surface and highly cost effective .

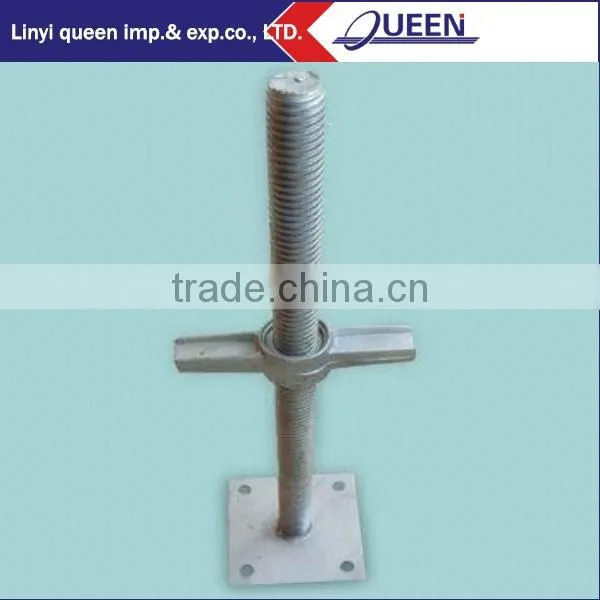

Solid screw base jack
This base jack have higher strength loading capacity.

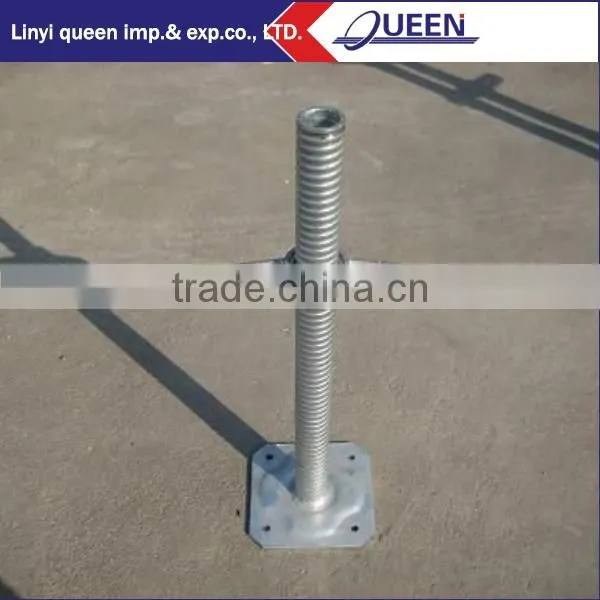

Base jack used in scaffolding system

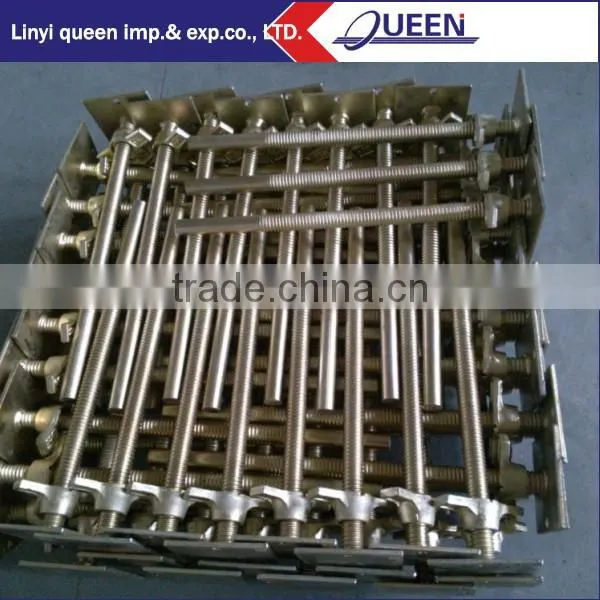

Base jack package
Our Main Business:
(1). System scaffolding:
Include: Kwikstage system scaffolding and accessories; Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Haki system scaffolding and accessories.
(2). Couplers/Clamps:
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frames
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.
(5). Planks/ Toe Board:
Both aluminum and steel planks can be manufactured in our factory.
(6). Others
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
Company Profile

Since 2000, we has been specialized in manufacturing scaffoldings, kwik stage/ringlock/cuplock/frame scaffoldings, steel planks, couplers, accessories & formwork parts, and hardware, ratchet wrench tools, garden tools, sockets and accessories. We expand our products to hand tools, automotive tools, etc. We have more than 10 years of production and export experience. Each tool produced by Queen is in the best quality, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We have a highly experienced producing team, which maintains top level of every stage of the producing progress. Each team of workers is led by supervisor who monitors day to day works. Automated welding and robot systems are widely used. Today, we have customers in over 35 countries around the world. Our products are engineered for safety, strength and flexibility to meet international standards within this industry. It is important for structural engineers, scaffolding factories and formwork specialists. In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We have a complete quality control system, which guarantees the high quality of our products and makes sure all progress is made to schedule. With all our technical knowledge and capacity, if you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
