Scaffolding Layher System Ringlock Scaffolding
- 100000 Piece / Pieces per Month
- QINGDAO
- T/T
- Andamios de Ringlock Scaffolding
- Steel Ringlock Scaffold Pipe Rosettes for construction
- 2000mm China Ringlock scaffold standard/False timbering
- Ringlock Scaffolding Rosettes for Highest Scaffolding System
- High quality Building Steel Ringlock Scaffold Rosette for sale
- Construction ringlock scaffolding rosette and diagonal brace
Product Details
Place of Origin: | Shandong, China | Brand Name: | QUEEN | Model Number: | 48 |
Packaging Details
BY STEEL PALLE
Product Description
Specifications
Layher System1) Raw materil:Q235&Q345
2)Surface finish:painted .HDG
3)Pipe:48.3*3.2mm/3.8m

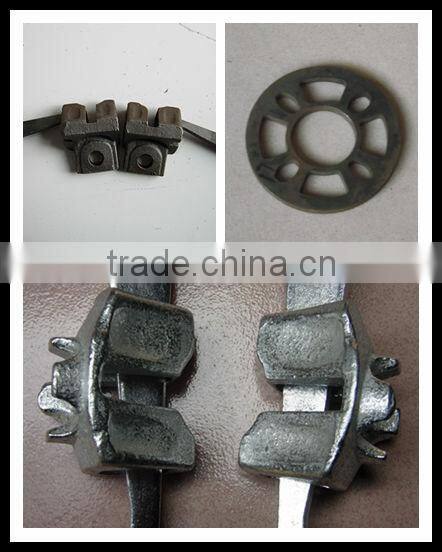

Ringlock Accessoires:Ledger end/Right and Left Diagonal brace end/ Layher System
Raw material | Casted steel |
Item Name | Casting Ledger/Left and right diagonal brace end for Ringlock scaffolding |
Weight | 0.3-0.8kg Size:50x50x63mm 0.85kg Size:42x50x69mm 0.45kg Left/Right diagonal brace 0.75kg |
Surface finish | Natural color.Galv. HDG |
Standard | En74 AS1576 |
Certificate | SGS ,ISO9001:2000 |
Usage | Welded in Ringlock system |
Package | Pvc bag with pallet |
Service | OEM is offered |
Payment term | T/T L/C |
Delivery time | 28days upon prepayment |
|
|
Rosette for Ringlock | Q345 raw material |
Size | 128x8mm 0.48kg |
| 123x9.5mm 0.42kg |
| 134x8mm 0.48kg |
Standard
Use: Standards are the vertical members of ringlock scaffolding. They provide the
vertical support for scaffolding.
ledger
Use: Ledgers are the horizontal members of Ringlock scaffolding. They provide
horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails
Base collar
Use: The base collar is designed to “base out” the Ringlock scaffolding system sitting on top of the screw jack creating a lower node point.

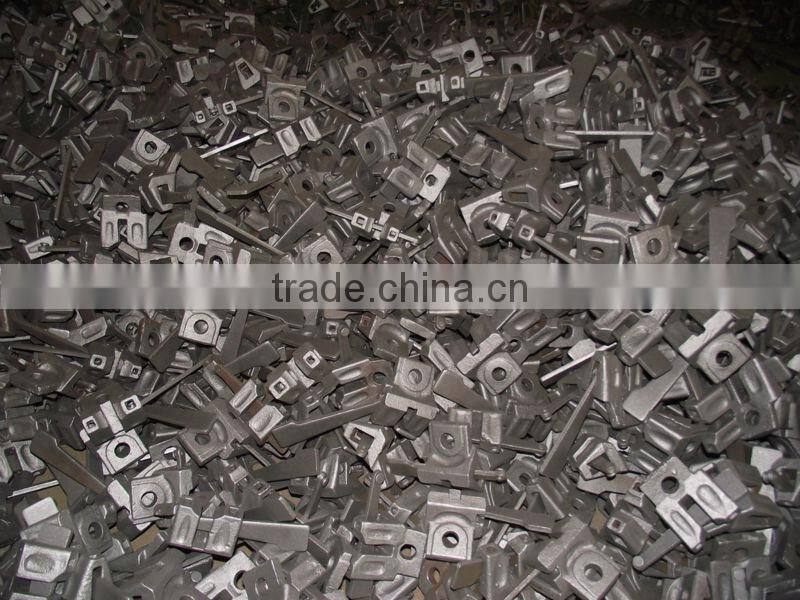

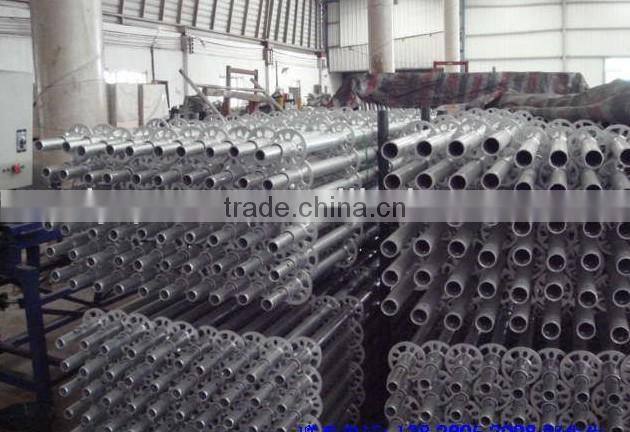

Production work shop and Packing photos
Future of the Ringlock scaffolding systems :

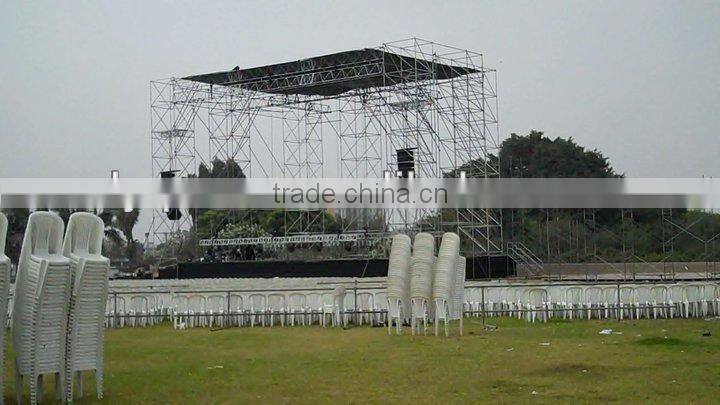

1.Ring lock scaffoldingis a multi-purpose modular scaffold system, application in all forms of working platform and support structures in the building and construction industries, ship buliding, offshore construction and industrial maintennace, bridge tunnel, and other projects.
2.Ringlock scaffoldingsystem inlculdes: standard, ledger, diagonal brace, steel boards, steel ladder, jack base, base collar, etc.
3. Ringlock scaffolding is the latest wedge lock system which is easy assembly and time saving, just need to insert the ledger blade into standard plate, it only need a hammer to connect and seprate, cost you 5 seconds to finish the work, thus saves you a lot of time and effort.
4. Ringlock scaffolding has high bearing capactity, as steel pipe material is Q235, thickness can be 2.75mm to 3.25mm, diameter 48.3mm. According to SGS test report and EN12810 certified, the whole Ringlock scaffolding with 3.25mm of thickness can load 32tons, 7tons for every standard.
5. Ringlock scaffolding can be surface treatment red oil painting or Hot dip galvanized to further resist rust, cracking and corrosion, has no pollution or harm to the evironment and people, which make sure of its low damage and longer life span.
6. Ringlock scaffoldingstandard and ledger can be packed by steel wiress in steel pallet that occupy less space, it is easy to shipping and special suitable for container packing.
About us
We specialized in the filed of the hardware and scaffolding systems for10 years time and we dealing with many kinds of the Scaffolding .like Ringlock.Cuplock.Kwikstage scaffolding .frame systems. Shoring propsystems. hardware like handtools, Auto Tools. Building tools, such as the ratchet wrench.Pickaxe, Firmer chisel,shovel, pickaxe,various hammers,Triangle bricklayer,Scraper and so on. We want to emphasize that our goods get the reputation in the market due to the competitive price with the high quality. please do not hesitate to contact us meanwhile we will offer you the best with the quality you satisfied.
Company Profile
Since 2000, we has been specialized in manufacturing scaffoldings, kwik stage/ringlock/cuplock/frame scaffoldings, steel planks, couplers, accessories & formwork parts, and hardware, ratchet wrench tools, garden tools, sockets and accessories. We expand our products to hand tools, automotive tools, etc. We have more than 10 years of production and export experience. Each tool produced by Queen is in the best quality, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
We have a highly experienced producing team, which maintains top level of every stage of the producing progress. Each team of workers is led by supervisor who monitors day to day works. Automated welding and robot systems are widely used.
Today, we have customers in over 35 countries around the world. Our products are engineered for safety, strength and flexibility to meet international standards within this industry. It is important for structural engineers, scaffolding factories and formwork specialists. In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We have a complete quality control system, which guarantees the high quality of our products and makes sure all progress is made to schedule.
With all our technical knowledge and capacity, if you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
