Specifications
Ringlock scaffold standard1) Raw materil:Q235&Q345
2)Surface finish:painted .HDG
3)Pipe:48.3*3.2mm/3.8mm
4)Standard.Ledger

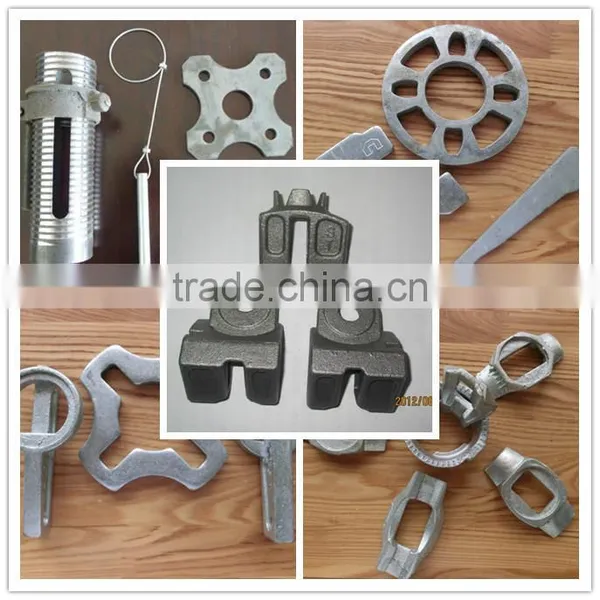

Ringlock scaffolding Component

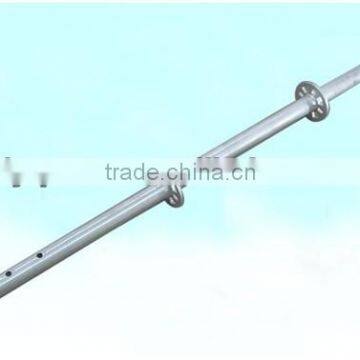

Standard
Use: Standards are the vertical members of ringlock scaffolding. They provide the
vertical support for scaffolding.

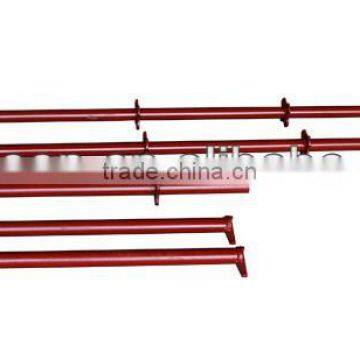

ledger
Use: Ledgers are the horizontal members of Ringlock scaffolding. They provide
horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails

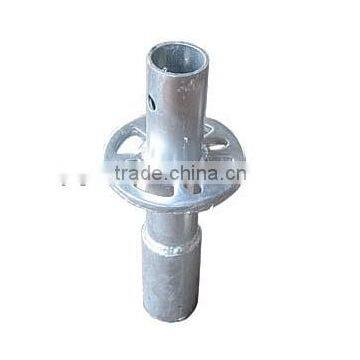

Base collar
Use: The base collar is designed to “base out” the Ringlock scaffolding system sitting on top of the screw jack creating a lower node point.

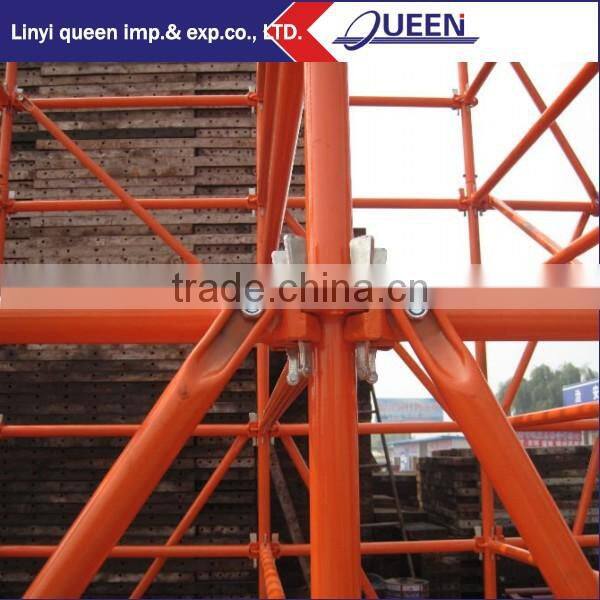

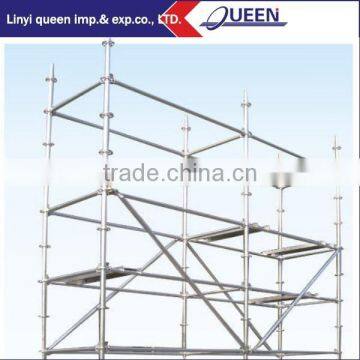

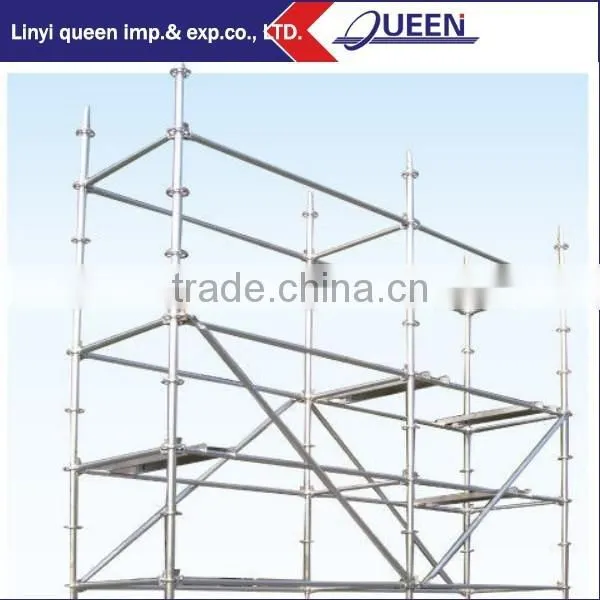

Ringlock scaffolding
1. Ringlock Scaffolding has fewer components, easy and quick assembly.
2. Advanced structural design, heavy load bearing capacity.
3. Overcome the difficulty of non-standard construction, suited to diverse range of on-site scaffold operations.
4. Single scaffold kit, no extra clamps or accessories required, no small parts
5. Individual scaffolding parts can be packed in bundles for easy storage and transportation.
6. Scaffolding Finish: Electric/hot galvanized or plastic coated

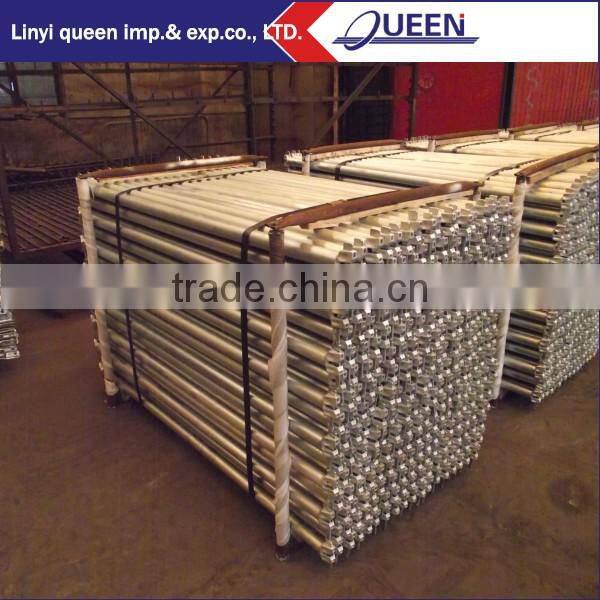

7. Scaffolding Packing: Palletized in steel pallet and baled with steel tape
8. Producing process: Cutting, forged, casted, pressed, welding, pained.

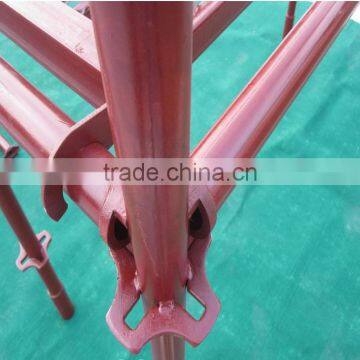

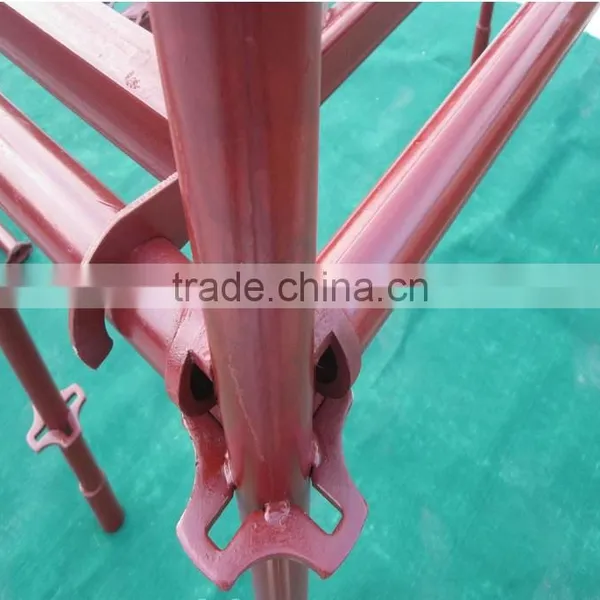

9. Installation: a. put the plug into the disc
b. tighten the insert with hammer
10. Widely uesd: can be widely applied to construction, bridge tunnel, equipment installation, decoration, shipbuilding and other projects.
11. Components: ledger, standard, brace, base jack, joint stick and pin, connect pin, transom.
12. Export market: Middle East, Asia, Africa, West Europe, South America.
13. Quality control: certificate JOD1996, OD15001-1205 and ISO9001-2008
13. Advanced structural design and heavy load bearing capacity.
| Scaffolding parts | Specification(mm) | Weight(kg) | Load capacity(KN)/squ |
| BS1139, EN74, ISO9001-2000 Scaffolding system | |||
| 500*48.3*3.2 | 2.83 | 48.15 | |
| 1000*48.3*3.2 | 5.07 | 40.75 | |
| 1500*48.3*3.2 | 7.31 | 34.35 | |
| Hot dip galvanized | 2000*48.3*3.2 | 9.55 | 29.75 |
| Vertical/Standard | 2500*48.3*3.2 | 11.79 | 26.85 |
| 3000*48.3*3.2 | 14.03 | 24.75 | |
| Materials Q345,Q235 Thickness 3.2mm Surface HDG, electroplated, painting | |||
| Base collar | 4000*48.3/60*3.2 | 1.98 | 51.23 |
| Adjust base jack | 350*36 | 2.87 | 53.25 |
| Adjust U head | 600*36 | 5.65 | 49.65 |
| 600*48.3*3.2 | 2.62 | 50.15 | |
| 900*48.3*3.2 | 3.93 | 48.35 | |
| 1200*48.3*3.2 | 5.58 | 46.55 | |
| Q235 | 1800*48.3*3.2 | 7.26 | 44.95 |
| Hot dip galvanized | 2000*48.3*3.2 | 8.01 | 44.55 |
| Ledger/Horizontal | 2500*48.3*3.2 | 9.51 | 30.25 |
| 3000*48.3*3.2 | 11.29 | 28.65 | |
| 3000*200*40*1.5 | 13.51 | 28.65 | |
| 2000*200*40*1.5 | 9.42 | 44.55 | |
| Q235 | 3070*300*50*1.8 | 21.05 | 28.25 |
| Hot dip galvanized | 2570*300*50*1.8 | 17.75 | 30.25 |
| Plank, platform, deck | 2070*300*50*1.8 | 14.46 | 44.55 |
| 390*48*3 | 3.81 | 50.85 | |
| Q235 | |||
| Hot dip galvanized | 730*48*3 | 5.88 | 48.75 |
| Side bracket | 1090*48*3 | 7.68 | 46.15 |
| 2000*1200*48*2.5 | 6.32 | 43.65 | |
| 2000*1800*48*2.5 | 6.71 | 42.35 | |
| Q235 | 2000*2000*48*2.5 | 7.89 | 41.25 |
| Hot dip galvanized | 2000*2500*48*2.5 | 8.88 | 39.55 |
| Scaffolding brace | 2000*3000*48*2.5 | 10.37 | 36.75 |
| Materials Q235, Q345 surface treatment hot dip galvanized | |||
Ringlock Scaffolding Standard:48.3x3.25mm
Ringlock Scaffoling Ledge 48.3x3.25/2.5mm

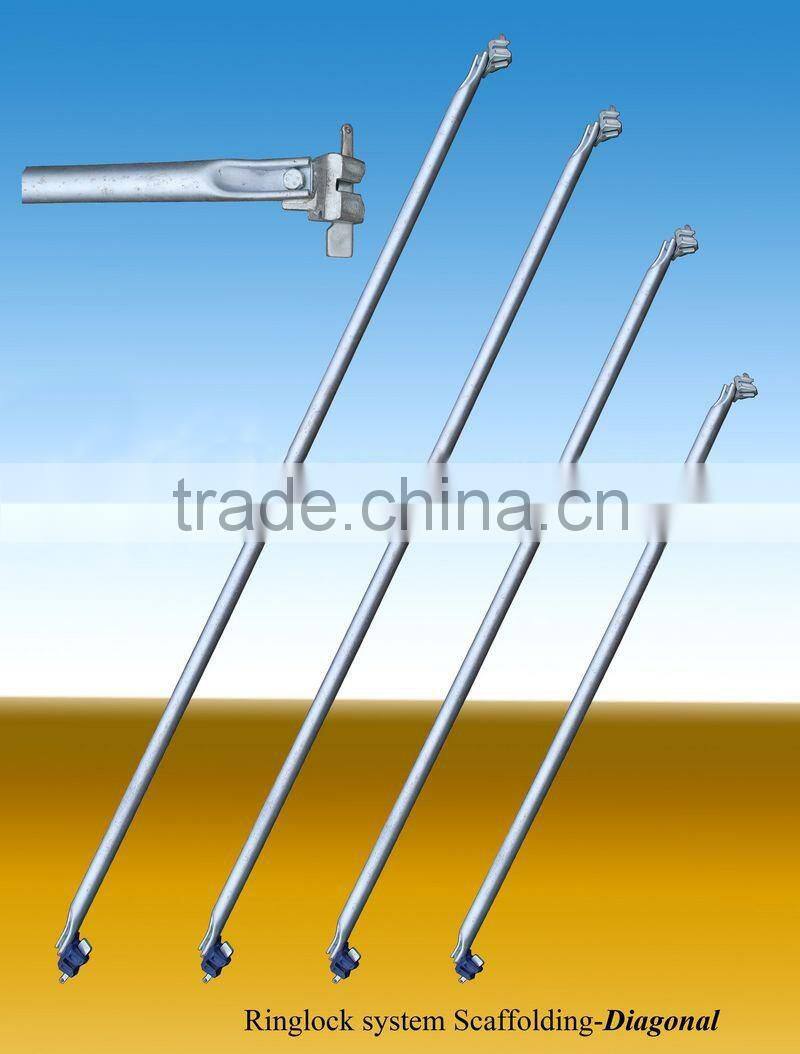

Ringlock Diagonal Brace 48.3x3.25/2.5mm
Ringlock Scaffolding Briger Ledger
Our Service:
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• Working time: 8:00am - 5:30pm, Monday to Friday.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back if you got question.

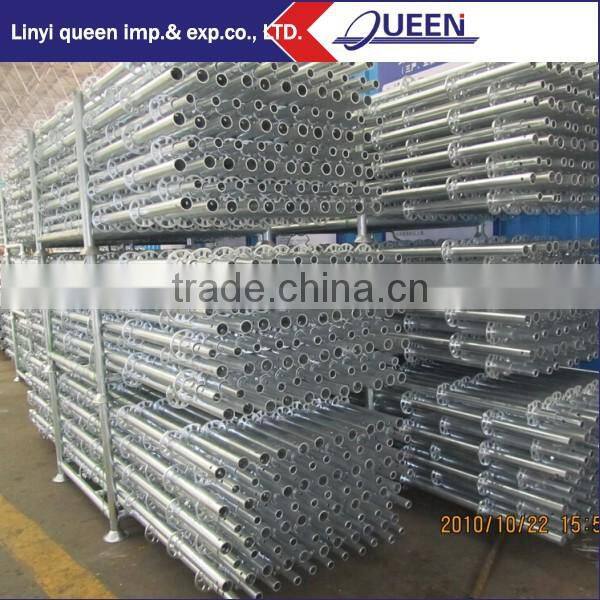

Workshop of the Ringlock Scaffolding
