New Style Metal Construction Scaffolding

Specifications

Telescopic Welded FrameType Scaffolding Set/  Metal Construction Scaffolding

1)Shoring frames are used to support the imposed loads. Cross braces are used to connect the frames together, forming a rigid tower to provide maximum stability and strength in virtually any shoring application.

2)Frame scaffolding is very popular both in home and abroad market. Walhthrough, ladder, Mason, Apartment. Its have American type, layher type, China type, Plettac type and so on. They are easy to set up and disassemble. As to surface treatment have hot dip galvanized, electroplated, power and painting. These type scaffolding used to construction, repairment, decroration and so on.

 Specification of the Frame Scaffolding

Product features:

Scaffold Name	Ladder Frame Scaffolding	Walk Through Frame
Item No	LY-21	LY-22
Size(L*W*H)	914*914*1850mm 1524*914*1850mm 1829*914*1850mm 2000*1000*1850mm	1700*950*1850mm 1900*950*1850mm 1900*1250*1850mm 1000*950*1850mm
Diameter of main tube	42mm	42mm
Thickness of main tube	2.2mm	2.2mm
Steel Grade of Tube	Q235	Q235
Weight	about 45kg	about 45kg
Accessory	one walking board	one walking board

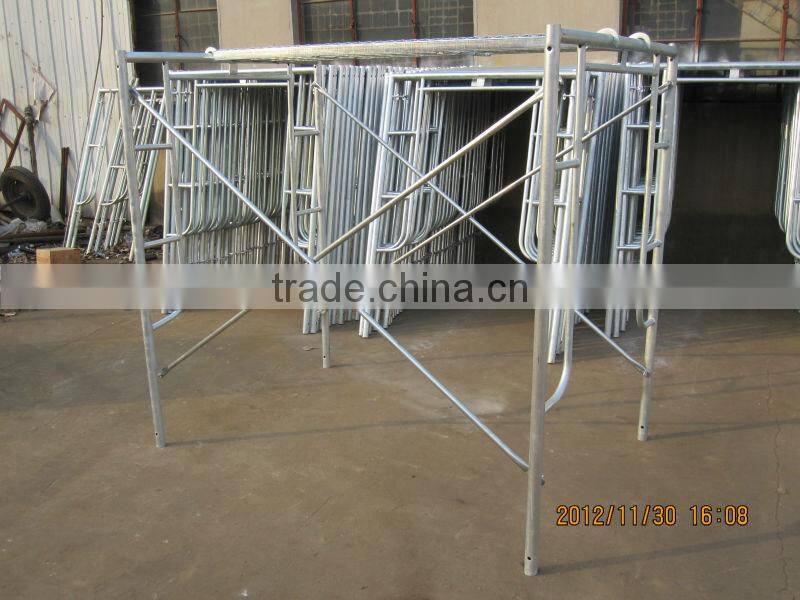

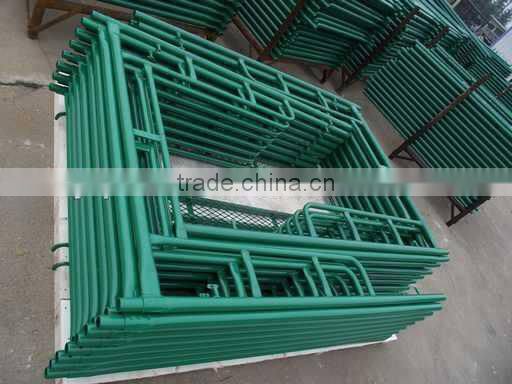

Products Display

Application of frame scaffolding:

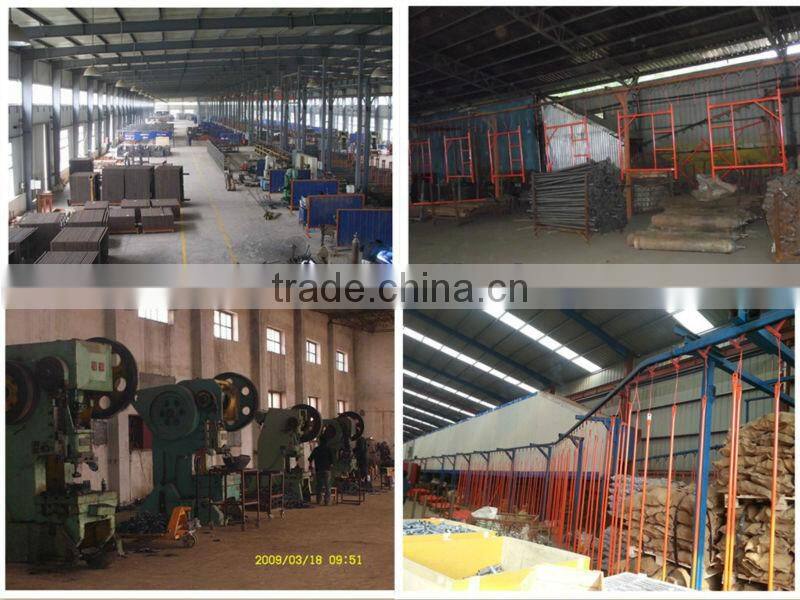

 Workshop for the Prductions

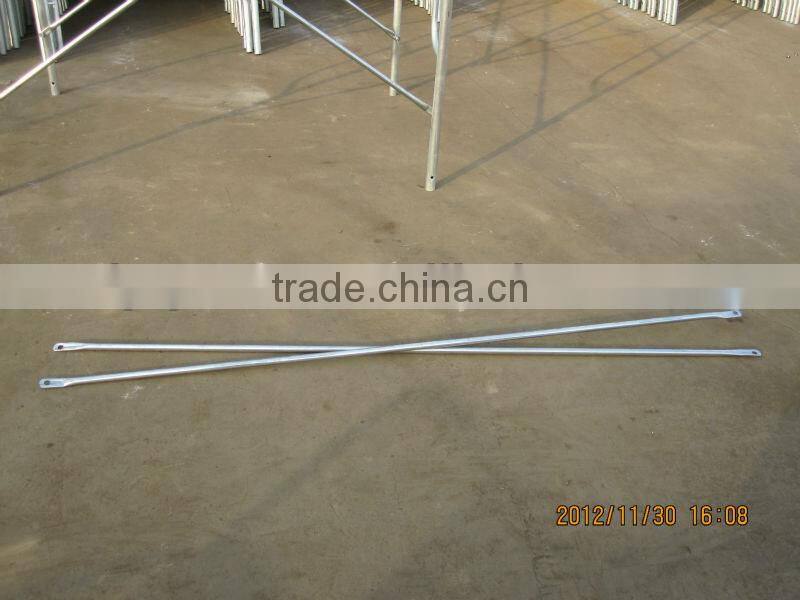

The Accessories of the Frame Scaffolding

Application:

1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.

2. Apply to inside and outside scaffolding fence.

3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.

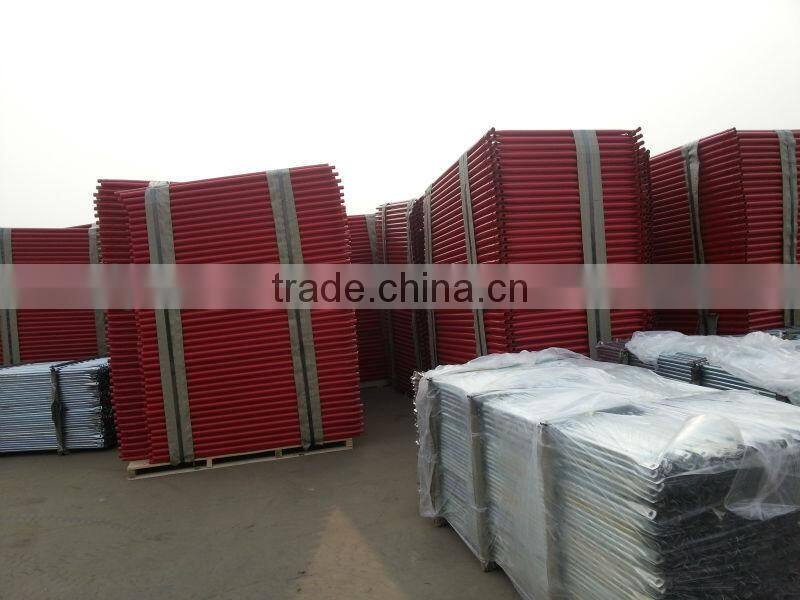

Package of the Frame Scaffolding
