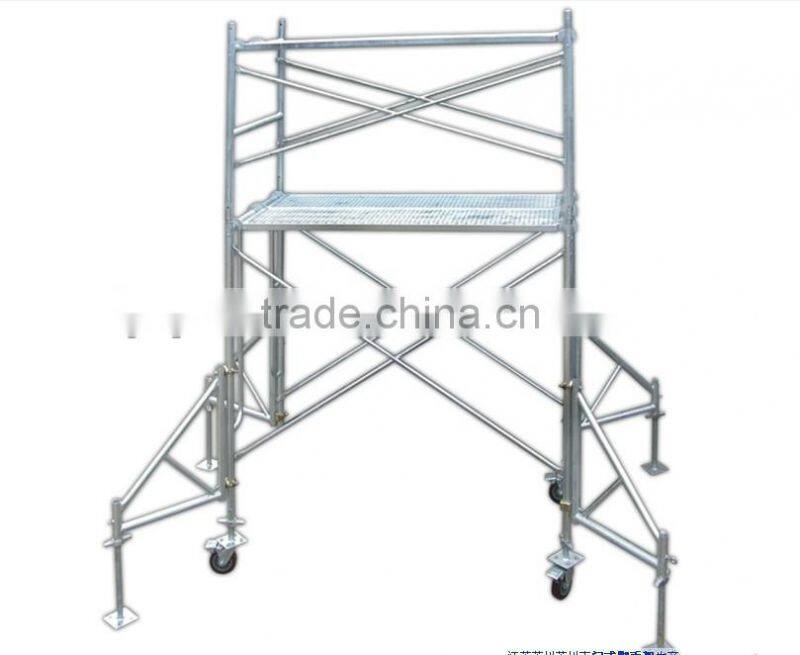

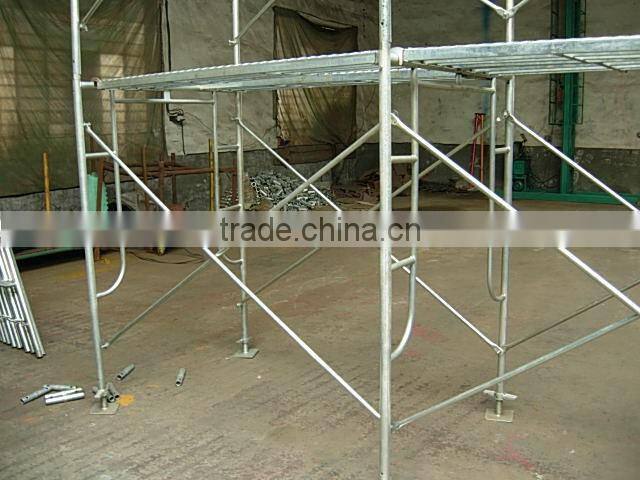

Frame system Scaffolding Rental used in constructions

by steel pallet

Specifications

Scaffolding Rental
1)Material:Q235,Q195
2)Size:1219x1700x1800mm
3)pipe:42*2.2mm/48*2.5mm
4)Aviliable height 20M

Frame   Scaffolding Rental

Features



Shoring frames Scaffolding are used to support the imposed loads. Cross braces are used to connect the frames together, forming a rigid tower to provide maximum stability and strength in virtually any shoring application.aslo could be rental for the builders.



1) System scaffold: ringlock system, kwikstage system, cuplock system.

2) Scaffold couplers: drop forged, and steel pressed clamps.

3) Frame scaffolding: plattec, mansion, other frames.

4) Scaffold tubes: galvanized, and black ones.

5) Off-shore props, screw jack and guardrail.

6) Base plate and fork head.

7) Tube and pipes.

8) Haki system scaffold.

9) Brazilian type couplers: fixed coupler and swivel coupler

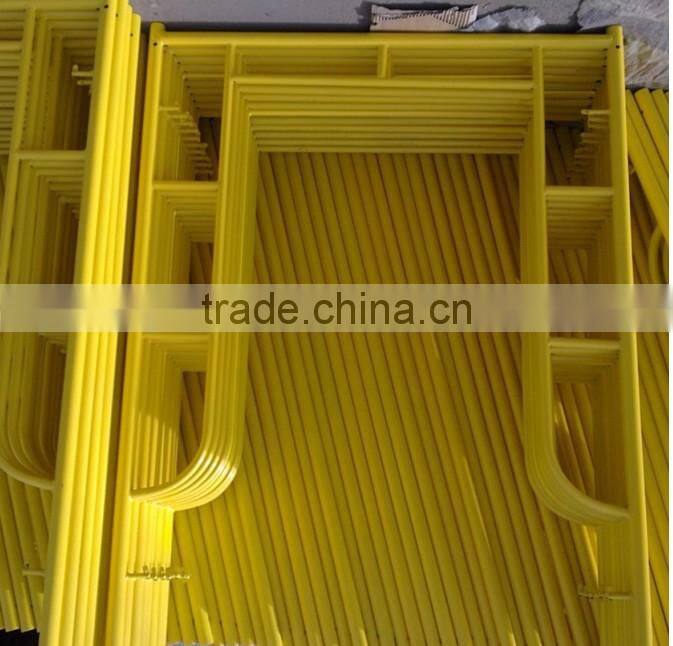

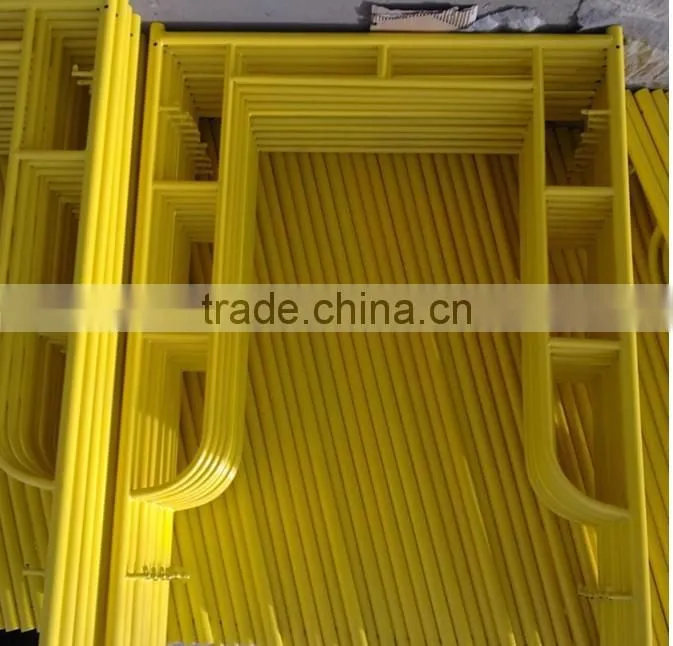

Specification of the Frame Scaffolding





Item Name	Width*Height(mm)	Weight(kg)
Walk Through Frame	1524*1930	21.24
	1219*1930	19.77
	914*1930	18.31
	1524*1524	17.83
	1219*1524	16.37
	914*1524	14.9
Ladder Frame	914*1219	12.75
	1219*914	11.12
	1524*914	12.58
Single box frame	1524*1930	20.66
	1524*1219	15.24
	1219*1219	13.78

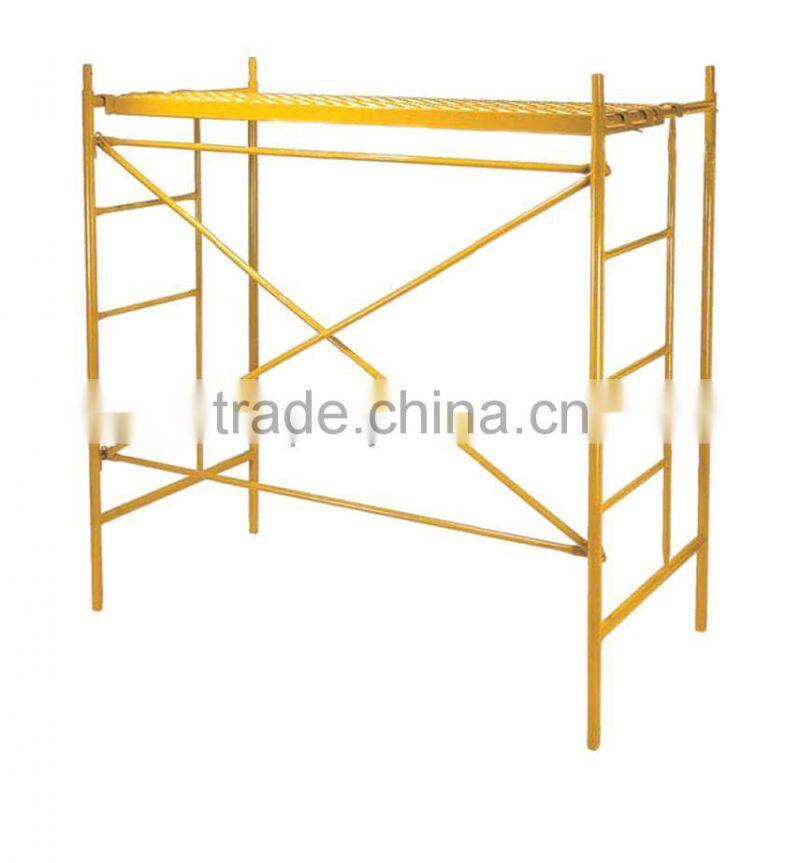

Frame Scaffolding wit Different Types







  Specifications of frame scaffolding:

1.       1. One set of frame scaffolding system consists of two H type frame scaffolding, two pairs of cross bar, four piece of joint pins, additional steel plank, jack base, caster wheels, etc.
2.       2. Frame scaffolding system is widely use as movable platform, install the caster wheels at the bottom tube, for inside wall painting and decoration; also applicated in build constrution ourside working platform system; in some country, frame scaffolding is for inside suport system, which connect U jack on the top, for concere, slab support.
3.       3. Frame scaffolding system is easy assembly and time saving, just need to connect two H frame by cross bar, and up together by joint pins.
4.       4. Frame scaffolding can be surface treatment red oil painting or Hot dip galvanized to further resist rust, cracking and corrosion, has no pollution or harm to the evironment and people, which make sure of its low damage and longer life span.
5.       5. Frame scaffolding can be packed by steel wiress or in bulk, which is easy to ship.
6. 1.
   2. The Accessories of Frame Scaffolding and The Production Workshop &Packing and Loading
   3.

   4. Application:

      1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.

      2. Apply to inside and outside scaffolding fence.

      3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.
