SF5545-A film wrapping machine for book food
It is suitable for high speed shrink wrap packing of any packages.such as books,magazine,food and so on.
It’s formed by four units of automatic book loading unit,automatic cutting and sealing unit,heat circulating shrink stove and automatic book unloading units.
This composition has the advantage of high efficiency and low cost,should be an ideal production machine for and packing industry.
Packing example
Video
http://youtu.be/s4czErctAxU
Features
Automatic book loading,avoiding mistake led by manual operation.Four units could be moved separately according to production layout.
Automatic film feeding at any step.Adjusted by electric eyes (switching between horizontal and vertical group)and timing device,to guarantee
Stable packing,cutting and sealing process,Continuous hot cutting by Teflon coated constant temperature blade at any step,transferring speed is 1m/sec.high quality,high speed,no adhesion,no breakage,zero consumption.
Integrated heat controlling system,heat circulating shrink stove,free adjusted wind direction,double layers.
Technical parameters
| Packaging size range (mm) | (L)unlimited×(W)60-450×(H)5-150 |
| Max Mechanical speed | 0-60m/min |
| Outline sizes(mm) | 6680×1580×1430 |
| Total power | 17kw |
Sealing and cutting part technical parameter
| Name | Instruction/brand |
PLC |
panasonic |
| contactor | Schneider |
| intermediate relay | Schneider |
| thermostat | OMRON |
| power | Tend |
| emergebcy switch | Schneider |
| motor | TPG |
| frequency converter | Panasonic |
Heat shrink tunnel
| Name | Instruction/brand |
| Temperature control system | OMRON |
| Motor | CPG reduction box |
| Frequency converter | Panasonic |
| Power switch | Tend |
| Contactor | Schneider |
| Intermediate relay | Schneider |
| Thermostat | OMRON |
| Emergency stop | Schneider |
CE
Factory

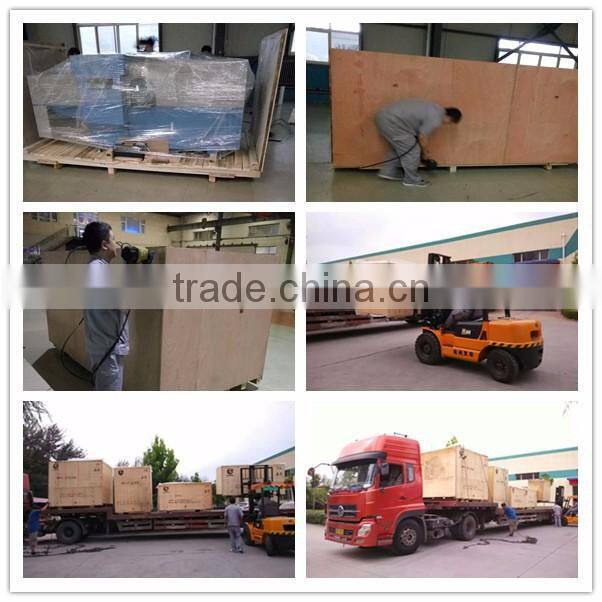

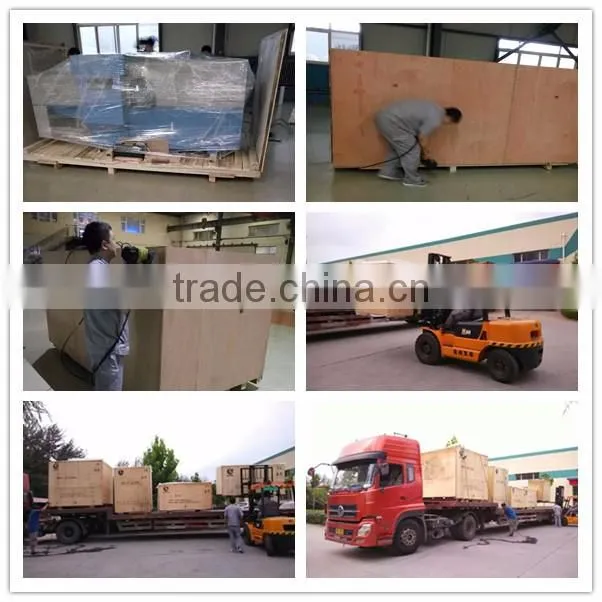

Package and delivery
FAQ
Q:when you delivery the machine?
A: we have storck.we will delivery the machine once we get prepayment
Q: What is the quality of your products?
A: Our machine assembly by high quality accessory of well-known brand and with our perfect control system,to insure the machine permanent stability .
Q:How about the after sale service?
A: You can send email or call us when have problem,also we will arrange our engineer make door-to-door service.
Contact
Mrs Anny
Mobile/Whatsapp:0086-13811440176
Skype:Anny wang
QQ:370650942
Your's visiting is our best pleasure,welcome to our factory!
