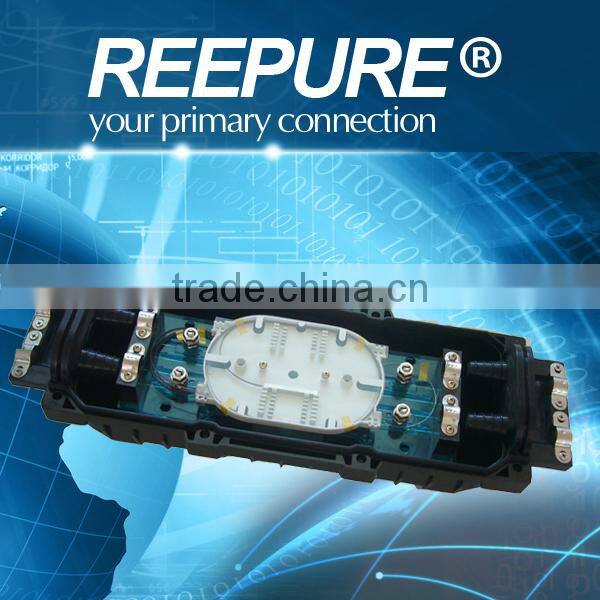

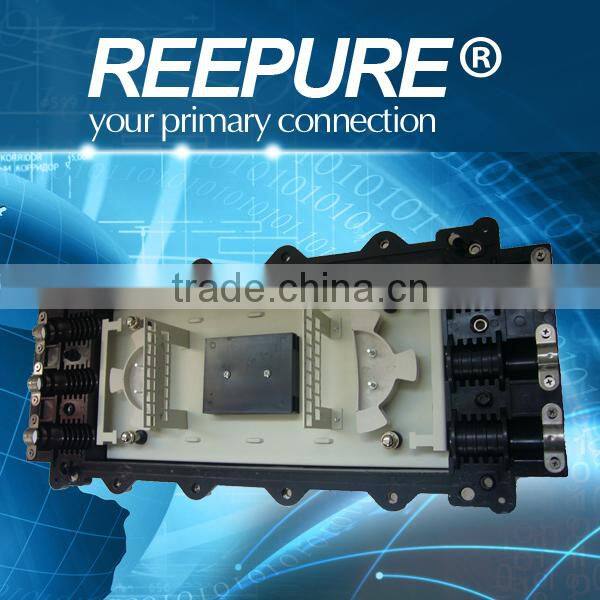

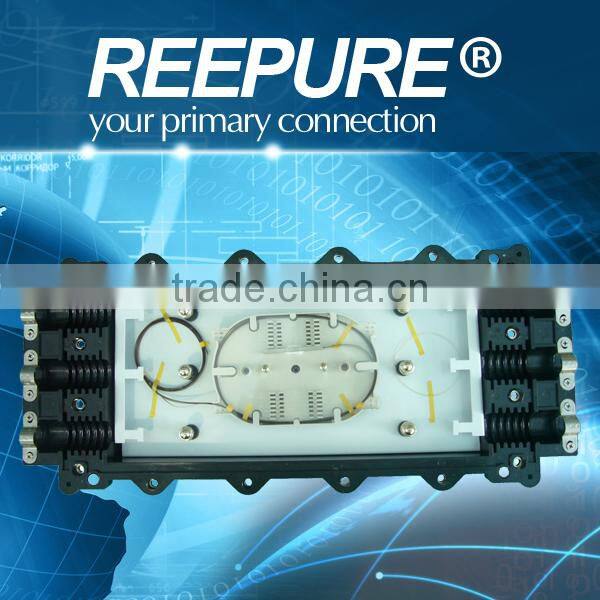

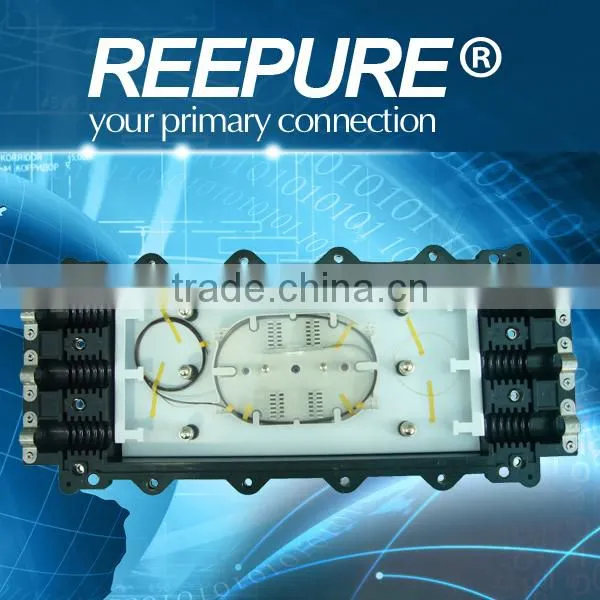

Splitter Fiber Distribution Closure

Splitter Fiber Distribution Closure with 3 inlet & 3 outlets

Splitter Fiber Distribution Closure is a compact and flexible closure that provides for connections between fiber optic cables and passive optical splitters in the inside Plant. The closure can be mounted to support aerial applications. It offers a robust, user-friendly and cost effective solution for connecting feeder and distribution cables via optical splitters in FTTP networks and is distinctive for such applications as rural and brownfield deployments.

Purpose: aerial, wall-mounting, Pipeline laying way

Material: PC

Dimension (mm): 580*255*140mm

Cables Entry & Exit: 3Entry 3Exit

Support PLC splitter

Splitter types supported:1×16, 1×32, 2×32, dual 1×16, dual 1×8, dual 1×4, dual 1×2

Connector type: SC, FC

Environmental temperature: -40°C to +65°C

Atmospheric pressure: 70~106KPa

Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.

Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.

Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation

Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

Insulation resistance: ≥2X10⁴MΩ

It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
