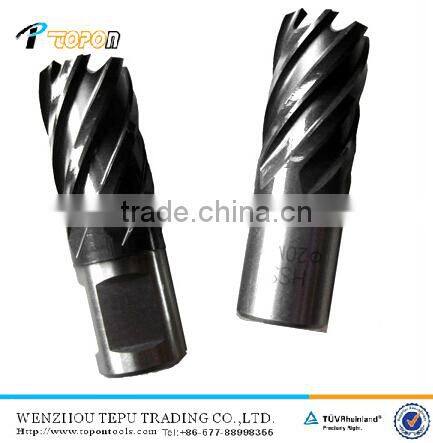

TiAlN Coating HSS annular cutter
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
You May Like
- 2 7/8"-5" VBR Ram assembly for shaffer or cameron ram BOP
- packing element for MSP 29.5"-500PSI Diverter
- drill bit 26"
- ZY SUPER HARD PCD Twist Drill Bits
- ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
- BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Topon | Type: | Other, Annular cutter |
Material: | High Speed Steel | Use: | Metal Drilling |
Product Description
Specifications
HSS annular cutter1,Material:HSS M2
2,CNC Machined fully ground
3, Depth Of Cut:12mm-50mm
4, Surface: TiAIN Coated
HSS Annular cutter
1, Material: HSS M2 , HSS Cobalt
2, Adapter: 19mm weldon shank
3, D.O.C:25,50,75,100mm
4, Diameter: 12-60mm
5, Manufacturing: Fully-ground with 5 axes CNC machine
6, Samlpe can be sent freely !
- 20% Thinner Wall Construction - Faster Cutting due to less material being removed for the same size hole.
- Duel Alternating Tooth Geometry - More aggressive cutting as well as increased chip ejection. Cuts up to 15% faster.
- Proprietary Steel and 3 Hardness Zones - Makes the bit less susceptible to breakage.
- One Centering pin size for all 1" depth cutters.
- 3/4" Weldon Shank - Fits most small magnetic drill presses
PART NO. | Ømm | PART NO. | Ømm | PART NO. | Ømm | PART NO. | Ømm |
25mm cutting depth | 25mm cutting depth | 50mm cutting depth | 50mm cutting depth | ||||
TPH10212 | 12 | TPH10232 | 32 | TPH10512 | 12 | TPH10532 | 32 |
TPH10213 | 13 | TPH10233 | 33 | TPH10513 | 13 | TPH10533 | 33 |
TPH10214 | 14 | TPH10234 | 34 | TPH10514 | 14 | TPH10534 | 34 |
TPH10215 | 15 | TPH10235 | 35 | TPH10515 | 15 | TPH10535 | 35 |
TPH10216 | 16 | TPH10236 | 36 | TPH10516 | 16 | TPH10536 | 36 |
TPH10217 | 17 | TPH10237 | 37 | TPH10517 | 17 | TPH10537 | 37 |
TPH10218 | 18 | TPH10238 | 38 | TPH10518 | 18 | TPH10538 | 38 |
TPH10219 | 19 | TPH10239 | 39 | TPH10519 | 19 | TPH10539 | 39 |
TPH10220 | 20 | TPH10240 | 40 | TPH10520 | 20 | TPH10540 | 40 |
TPH10221 | 21 | TPH10241 | 41 | TPH10521 | 21 | TPH10541 | 41 |
TPH10222 | 22 | TPH10242 | 42 | TPH10522 | 22 | TPH10542 | 42 |
TPH10223 | 23 | TPH10243 | 43 | TPH10523 | 23 | TPH10543 | 43 |
TPH10224 | 24 | TPH10244 | 44 | TPH10524 | 24 | TPH10544 | 44 |
TPH10225 | 25 | TPH10245 | 45 | TPH10525 | 25 | TPH10545 | 45 |
TPH10226 | 26 | TPH10246 | 46 | TPH10526 | 26 | TPH10546 | 46 |
TPH10227 | 27 | TPH10247 | 47 | TPH10527 | 27 | TPH10547 | 47 |
TPH10228 | 28 | TPH10248 | 48 | TPH10528 | 28 | TPH10548 | 48 |
TPH10229 | 29 | TPH10249 | 49 | TPH10529 | 29 | TPH10549 | 49 |
TPH10230 | 30 | TPH10250 | 50 | TPH10530 | 30 | TPH10550 | 50 |
TPH10231 | 31 | TPH10531 | 31 |
carota carotatrice carotteuse carottage carotter kernbohrung kernbohrer kern bohrer
