310mm standard sds tungsten carbide drill bits

Specifications

310mm standard sds tungsten carbide drill bits
40Cr steel and YG8 carbide
for granite,concrete,stone,masonry,tile
sand-blast,

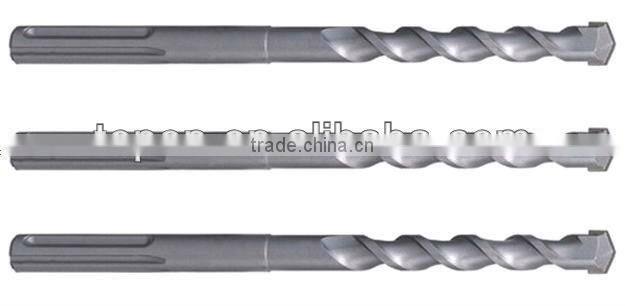

310mm  standard sds tungsten carbide drill bits



The following electric hammer drill bits are machined from chrome steel fitted with carbide insert brazed at a very high temperature to withstand severe heating when drilling hard materials.

 L-shaped flute profile improves dust discharge. Sand blasted surface. Other industrial surface finish available.
For drilling in granite, concrete, stone, masonry, tiles and marble.
Ø4.0-30.0mm, Total length: 110-1000mm
Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co., AEG. Co.,

 BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key way.



STANDARD SDS-PLUS DRILL BITS
Part NO	Diameter (mm)	Length (mm)
TP0101	4	110
TP0102	4	160
TP0103	5	110
TP0104	5	160
TP0105	5	210
TP0106	6	110
TP0107	6	160
TP0108	6	210
TP0109	6	310
TP0110	8	110
TP0111	8	160
TP0112	8	210
TP0113	8	260
TP0114	8	450
TP0115	10	110
TP0116	10	160
TP0117	10	210
TP0118	10	260
TP0119	10	310
TP0120	10	350
TP0121	10	400
TP0122	10	450
TP0123	12	160
TP0124	12	210
TP0125	12	350
TP0126	12	400
TP0127	12	450
TP0128	12	800
TP0129	12	1000
TP0130	14	160
TP0131	14	210
TP0132	14	260
TP0133	14	350
TP0134	14	400
TP0135	14	450
TP0136	14	1000
TP0137	16	210
TP0138	16	350
TP0139	16	450
TP0140	16	600
TP0141	16	800
TP0142	16	1000
TP0143	16	1200
TP0144	22	260
TP0145	22	350
TP0146	22	450
TP0147	22	600
TP0148	22	800
TP0149	22	1000
TP0150	22	1200
TP0151	25	260
TP0152	25	800
TP0153	25	1000
TP0154	25	1200
TP0155	28	600
TP0156	28	800
TP0157	28	1000
TP0158	28	1200
TP0159	30	600
TP0160	30	800
TP0161	30	1000
TP0162	30	1200

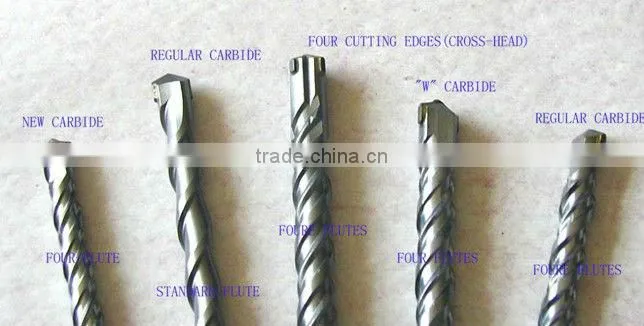

Different cutting edges:

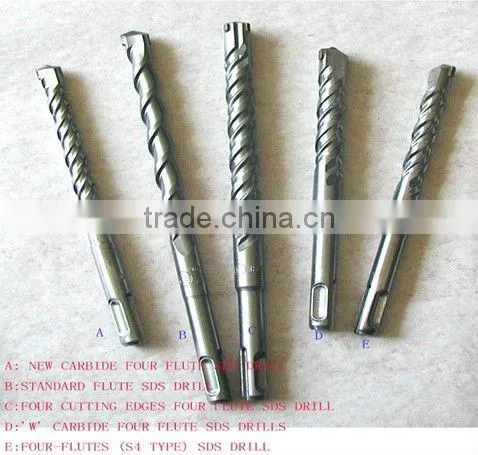

Differnent flute types:



Packing:
