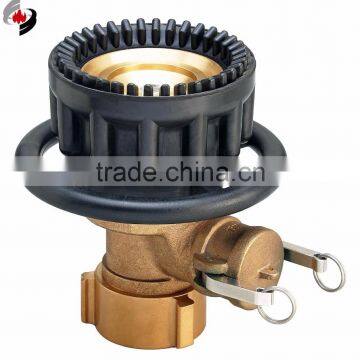

Fire Fighting Water Curtain Foam Nozzle

FOB Price

Negotiable / Piece

16 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China		Brand Name	Ally Fire Tech
Model Number	2625

[ Fire fighting water curtain foam nozzle ]

Product Description

Model number: 2625

Inlet size: 2.5 inch

Flow setting: 350, 500 or 750 GPM

Proportioning: 0.5%, 1%, 3%, 6%

Hose diameter: 1.5 inch (38mm)

118" pick up hose

Length: 230 mm

Weight: 7.52 kg

___________________________________________________________________________________________________

> Master stream nozzle with self eductor

> Designed to used with Class A or B foam, including AAAF or fluoroprotein.

> Include a set of calibrated foam orifice plates. The plates are easily interchangeable to adjust foam proportioning.

> The attached in-line eductor converts water into foam.

> Combination of foam and water stream.

> Baffle is easily removed for flushing debris.

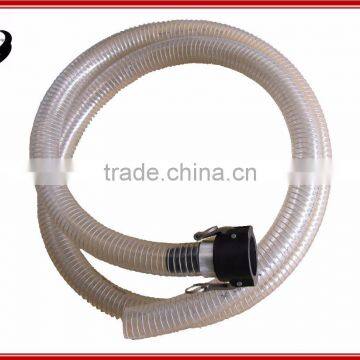

> Length of Pick-up hose is 118"(3m) and the hose diameter is 1.5"(38mm).

> Hard coat anodized brass

> For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need.
