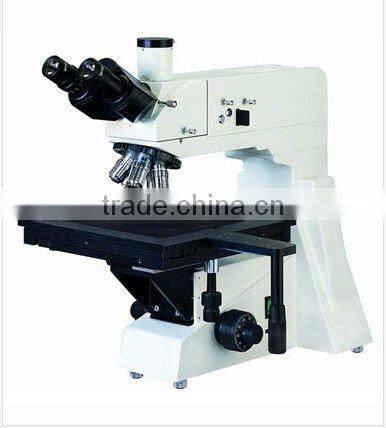

.XJP-11 Series metallographic microscopes are suitable for observing non-transparent objects.XJP-11 Series metallographic microscopes are suitable for observing non-transparent objects. It is equipped with large moving mechanical loading tables, drop-shot lighting system, built-in polarized light observing device. It features clear image, nice contrast, elegant appearance, convenient operation etc. It is the ideal instrument for research in metal science, mineralogy, precision engineering & electronics sciences. It can also be widely used in schools, factories and researching institutes.
Technical specifications
| Eyepiece | Wide view WF 10X (Ø18mm) |
| Objective lens | Anomaly field length achromatic lens (without coverslip) PL 5X / 0.12 |
| Anomaly field length achromatic lens (without coverslip) PL 10X / 0.25 | |
| Anomaly field length achromatic lens (without coverslip) PL 20X / 0.40 | |
| Anomaly field length achromatic lens (without coverslip) PL 40X / 0.60 | |
| Anomaly field length achromatic lens (without coverslip) PL 80X / 0.80 | |
Head tube | Three eyepiece Tilting angle: 30° built-in frederick polarizer can be switched |
Drop-shot lighting system | 6V, 20W halogen lamp, brightness adjustable |
| Drop-shot field lighting device with light field, aperture optical fields, polarizing plate, (yellow, blue, green) filter and frosted glass | |
Focus system | elevating loading table, rough and micro coaxial focusing, grid value 0.7um, adjustable elasticity , locking and limiting device |
Converter | 5-hole extraversion style ball bearing inner positioning |
Loading table | Three layers mechanical moving dimensions: 250 x 230 mm, moving range: 154 x 154mm |
