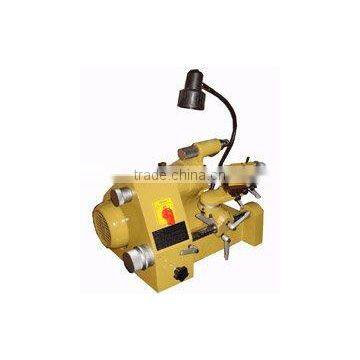

UNIVERSAL CUTTER GRINDER
- SHANGHAI
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Universal | |
| CNC or Not | Normal | Place of Origin | Jiangsu, China | |
| Brand Name | MY | Model Number | 30A |
Product Description
Specifications
OUR FACTORY MANUFACETURE ALL KINDS OF CUTTER GRINDERFor grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills、Twist Drill、Lathe Tools, only replace the attachment to the index head without any complex setup.
Specification
1. Max. collet capacity: Φ25 mm
2. Max. grinding dia.: Φ25 mm
3. Taper angle: 0~ 180 (degree)
4. Relief angle: 0~ 45 (degree)
5. Negative angle: 0~ 25 (degree)
6. Grinding spindle: 5200 r.p.m.
7. Cup grinding wheel: 100x50x20
8. Motor: 1/3HP 220V 50/60HZ
9. Net weight: 55 kgs
10. Gross weight: 65 kgs
11. Machine dimensions: 45x40x35 cm
12. Packing dimensions: 56x47x47 cm
Standard Accessory
· Diamond Wheel Dresser
· Collets five:4/6/8/10/12mm (or inch)
· Wrench & Spanner Set
· Grinding Wheel
· Wheel Mount
· Aligning Finger
· Lock Pin
· Drive Belt
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills、Twist Drill、Lathe Tools, only replace the attachment to the index head without any complex setup.
Specification
1. Max. collet capacity: Φ25 mm
2. Max. grinding dia.: Φ25 mm
3. Taper angle: 0~ 180 (degree)
4. Relief angle: 0~ 45 (degree)
5. Negative angle: 0~ 25 (degree)
6. Grinding spindle: 5200 r.p.m.
7. Cup grinding wheel: 100x50x20
8. Motor: 1/3HP 220V 50/60HZ
9. Net weight: 55 kgs
10. Gross weight: 65 kgs
11. Machine dimensions: 45x40x35 cm
12. Packing dimensions: 56x47x47 cm
Standard Accessory
· Diamond Wheel Dresser
· Collets five:4/6/8/10/12mm (or inch)
· Wrench & Spanner Set
· Grinding Wheel
· Wheel Mount
· Aligning Finger
· Lock Pin
· Drive Belt
