metallography specimen cutting machine is a metallographic cutter with automatic manual function.

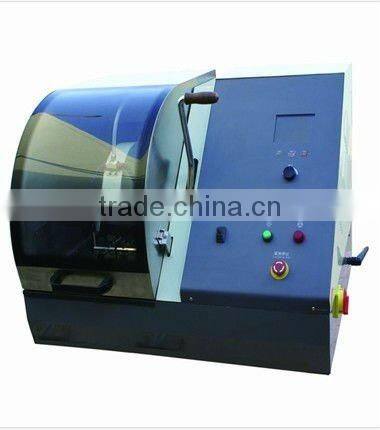

Model Q-100C Automatic/Manual metallography specimen cutting machine is a metallographic cutter with automatic/manual function.
It introduces Siemens programmable controllers with very high reliablility, strong controlling ability, and it also introduces LED in human-computer interaction aspects, percisie stepper motor in controlling aspects. It is suitable for cutting all kinds of metal, non-metallic materials, samples in order to observe the material microstructure, lithofacies organization. The cutting process can be changed from automatic to manual type. It features low noise, simple operation and safe reliability. The machine is one of the important equipments in the modern laboratory.
* Auto / Manual cutting machine
* Cutter blade is 350mm, equipped with a large cutting table of 400x280mm
* With strong cutting capacity, the maximum cutting diameter is 100mm
* It is easy to use the joystick and turn/push knob
* Constant feed rate make sure minimum deformation
* It has the fundtion of automatic feed and cutting hard materials quickly
* Equipped with the function of quick positioning and free option of stop position
* T-slot is easy to install various fixtures
* Corrosion resistant cutting room
* The cover open-stopping function guarantees the safety of operator
Technical specifications
1. Cutting wheel size: 350x2.5x32mm
2. Rotating speed: 1000-3000 rpm continuous adjustable
3. Cutting table size: 400x280mm, moving distance 150mm
4. Equipped with 60L cooling liquid water tank.
5. Power supply: 380V, three-phase, 4KVA
6. Dimensions: 1050x950x710mm
7. Weight: 350KG
