Help CenterDigital Laminating Machine 1600mm ADL-1600H1
US$ 1,200 - 1,400
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Cold & Hot Laminator
Paper Size:
Other, 1.6 meter
Brand Name:
Audley
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Motor Laminations ADL-1600H1NegotiableMOQ: 1 Set -
Laminating Equipments Manufacturer ADL-1600H1NegotiableMOQ: 1 Set
-
Hot Laminator With Auto Cutting / Trimmer 1600H8+NegotiableMOQ: 1 Set
-
Electric Cold Film Laminating Machine ADL-1600A3+NegotiableMOQ: 1 Set
-
Hot Laminator Auto Lamination 5ftNegotiableMOQ: 1 Set
Type
Other, Cold & Hot Laminator
Paper Size
Other, 1.6 meter
Brand Name
Audley
Model Number
ADL-1600-H1
Place of Origin
Henan, China
digital laminating machine 1600mm ADL-1600H1:
| Technical Parameters | |||||||
| Model | ADL-1600H1 (hot) | ADL-1600H5+ (hot) | ADL-1600C5+ (cold) | ||||
| Max Width | 1600mm | 1600mm | 1600mm | ||||
| Max Thickness | 20mm | 65mm | 65mm | ||||
| Speed | 0--7m/min | 0--7m/min | 0--7m/min | ||||
| Temp Range | room temp-120℃ | room temp-120℃ | room temp-60℃ | ||||
| Lifting Way | unilateral ascension | Pneumatic(air pump) | Pneumatic(air pump) | ||||
| Heating Way | infrared heating | infrared heating | infrared heating | ||||
| Preheating Time | 10-15min | 10-15min | 5-10min | ||||
| Rated Input Power | 2200W | 2200W | 1200W | ||||
| Power | 0.8-1kw/h | 0.8-1kw/h | 0.3-0.5kw/h | ||||
| Rated Input Voltage | 110/220V | 110/220V | 110/220V | ||||
| Weight | 230/180kg | 255/205kg | 215/165kg | ||||
| Packing Size | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | ||||

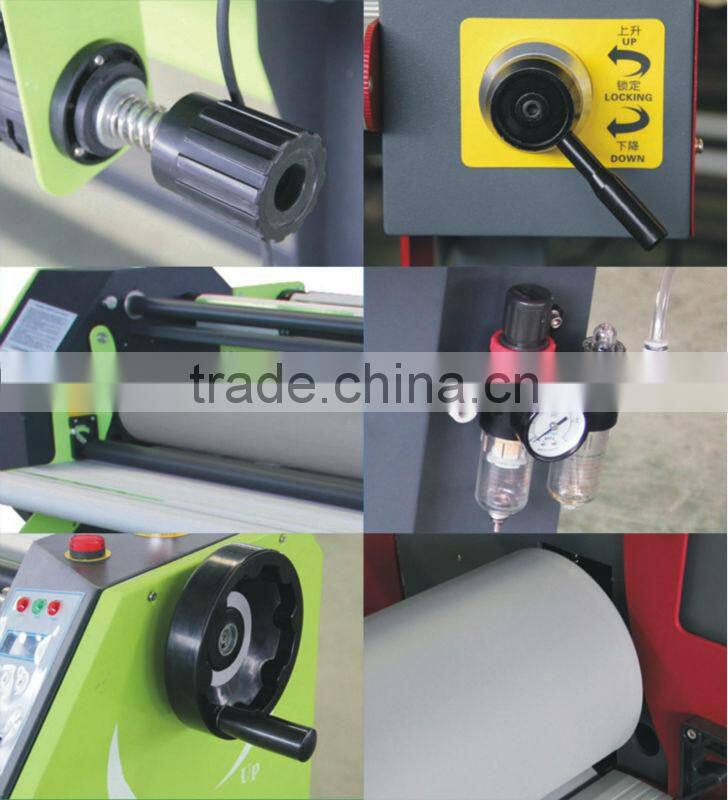

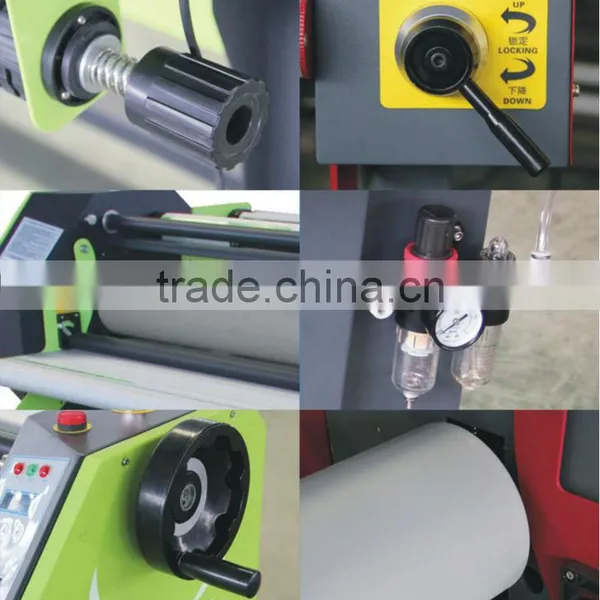

Description:
1. Motor
2. Turn-over aluminium alloy front working platform.
3. 130mm-diameter high-temperature resisting silica gel upper-roller.
4. 130mm- diameter anti-adhesive silica gel lower-roller.
5. Automatic product rolling structure.
6. Crikle-resistant and anti-slided paper advancing structure.
7. Unilateral balanced voltage controlled hand wheel.
8. Non-contact infrared temp-measuring system.
9. Pedal switch
Hot Cold Films: Size: 914mm, 1070mm, 1270mm, 1520mm;
