Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth

Zhengzhou Audley Digital Control Equipment Co., Ltd.
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-1
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-2
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-3
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-4
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-5
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth thumbnail-6
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-1
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-2
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-3
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-4
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-5
Audley QS8000 Professional Manufacturer 1.9m Two 5113 Heads Dye Sublimation Ink Jet Printer Machine for Cloth photo-6
US$ 10,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Henan, China
Brand Name Audley
Model Number QS8000
Usage Cloths Printer, Other, Cloths Printer, Sublimation ink jet Printer
Automatic Grade Automatic
Voltage AC 220V,50Hz/AC 110V 60Hz
Gross Power 6000W( Heater on) /1800W ( Heat off )
Dimensions(L*W*H) 340*86*83cm (LxWxH)
Weight 600kg
Certification CE SGS MSDS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

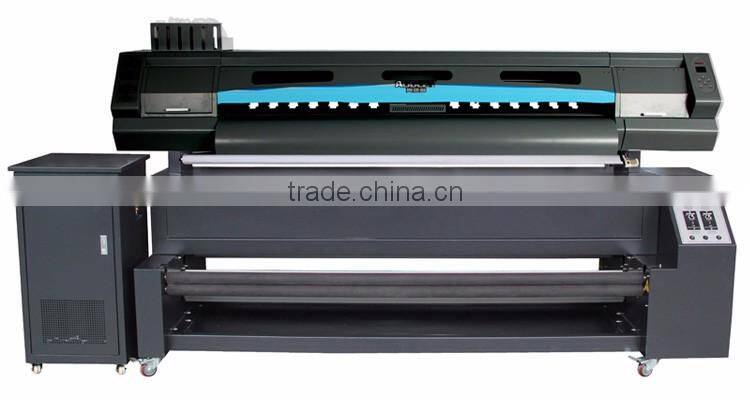

Audley QS8000 Professional Manufacturer 1.9m two 5113 heads Dye Sublimation ink jet Printer Machine for cloth is suitable for producing multi color fabric in all materials. It is widely used to produce flag textile, ribbon T-shirt printing, car sticker etc. Automatic printing and dye make colors more bright, more fantastic, more beautiful.

SPECIFICATIONS FOR Audley QS8000 Professional Manufacturer 1.9m two 5113 heads
Dye Sublimation ink jet Printer Machine for cloth


Power
Power supply
AC/HZ
220V/50

Power consume
Heater on
6000W
Heat off
Power connector
Three Socket





Print Head
Brand
Epson
Japan
Type of print head
5113
No. of print head
2
Head nozzle
Nozzle
8*600
Resolution
DPI
1440*1440
Printhead Height
0-30mm above media adjustable
Cleaning system for print head
Automatic cleaning device/ scraping ink device



INK
Ink Level
High
Ink Type
Sublimation ink
Ink Color
4 (C/M/Y/K)
Ink Capacity
1500ml of each ink cartridge
Ink Supply System
Negative Pressure Continuous Ink Supply System
Consumable ink
100Sqm/L, 13USD/L


Print speed
Sketh Type
2 pass
75 m2/h
Production Type
4 pass
55 m2/h
Precision Type
6 pass
45 m2/h
Quality Type
8 pass
30 m2/h

Drying System
Heating
Front ,midel ,back three sections heating system,PID temperature controller
Fanning
Optional


Medium
Max medium width
cm
185
Medium compatibility
General width(630-3200mm) inkjet medium
Medium Type
Dye sublimation textile
Medium dipose
General width inkjet medium







Technical parameters

Operation Environment
Temperature
18°C-35°C
Humidity
40RH-70RH
Stoving method
Forepart and back two stages heating
Connector
USB2.0/3.0
Operation Language
Chinese/English
Printing software
Maintop 5.3(Free)/Ultraprint(200USD)/photo print (300USD)
Working computer require
Charge (4GB RAM, 100G ROM, 512M Discrete Graphics, Inter I7)

Noise
Stand-by
<32dB
Working
<65dB


Package
Machine Dimension
cm (LxWxH)
340*86*83
Package Dimension
cm (LxWxH)
335*104*113
NW/GW
KG
600/700
Warranty
One year for body frame

Main Features

1) Simple structure in separable ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

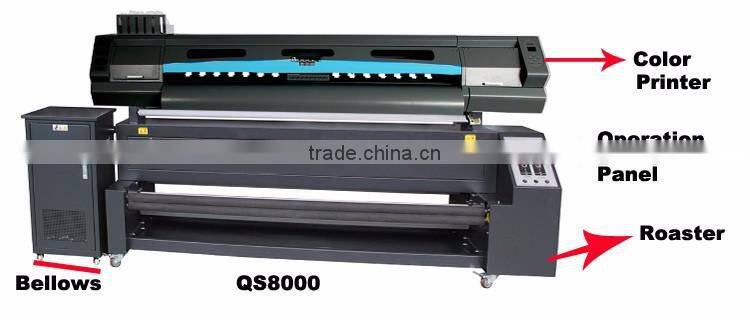

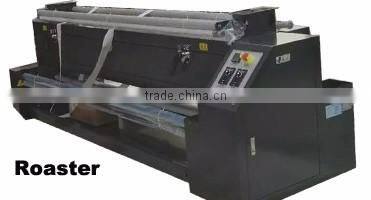

3) Automatic Printer and Roaster in Integrated design ,save cost and worker.
4) Different print speed is not only suitable for Industrial production ,but also supplied to high quality printing.

5) Connect with computer or laptop ,easy to operate by single person.

Certifications
Detailed Images

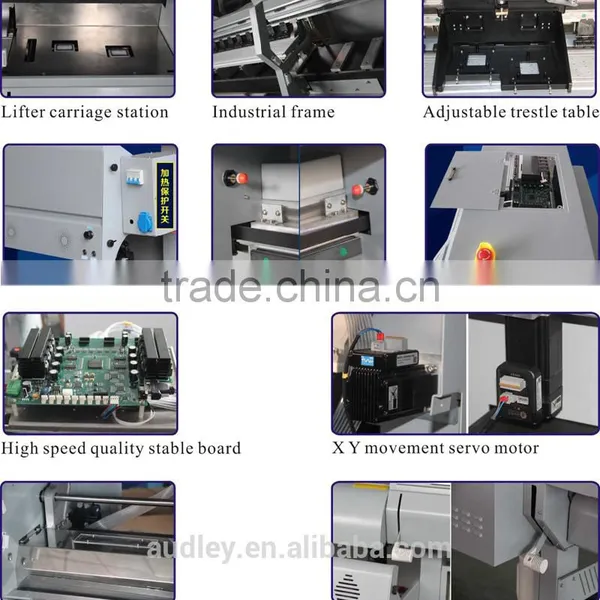

Machine Parts

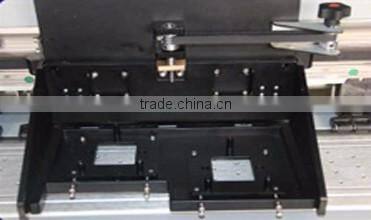

Name: Print head box
Brand: Audley
Original: China
Independent design fixes print head perfectly. It realizes fast speed print for industrial production.

Main parts

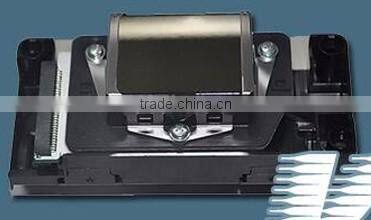

Name: Print head
Brand: EPSON
Original: Japan
Imported famous Print head, hold 8*600 nozzle, could realize high speed industrial production and high quality printing.

Machine Parts

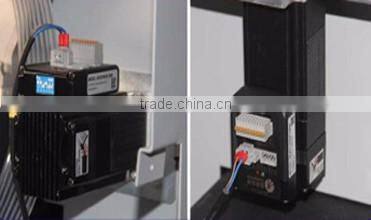

Name: X Y movement servo motor
Brand: Audley
Original: China
Keep the work more stable last longer.

Main Parts

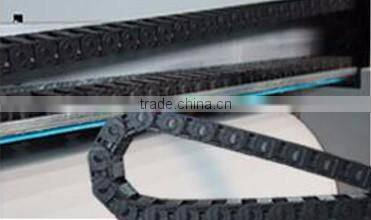

Name: Towline
Brand: IGUS
Original: Germany
Imported towline from Germany, ensure printing stable, reduce the press of ink supply system.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
machine Size
340*86*83cm
Weight
700KG

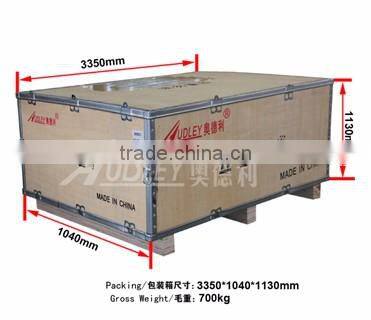

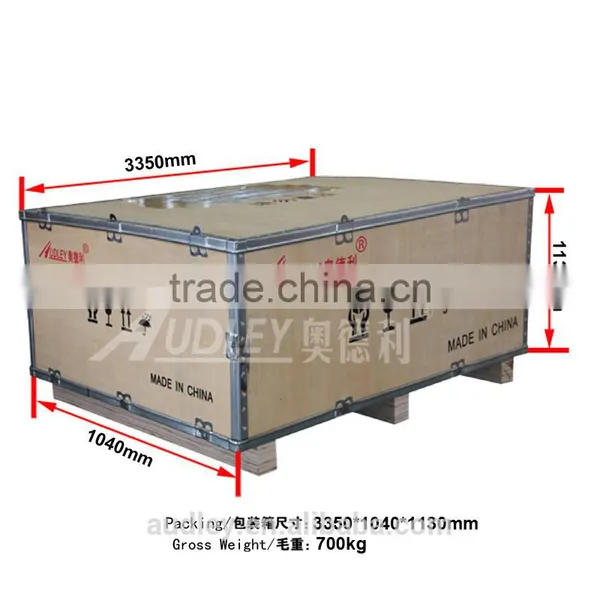

Packaging Details
The normal package is wooden box(Size: 335*104*113cm (LxWxH)). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
Shipment



Shipment


Ocean shipping is the best transport, if the product is urgent, contact us to check the best freight for reference.
