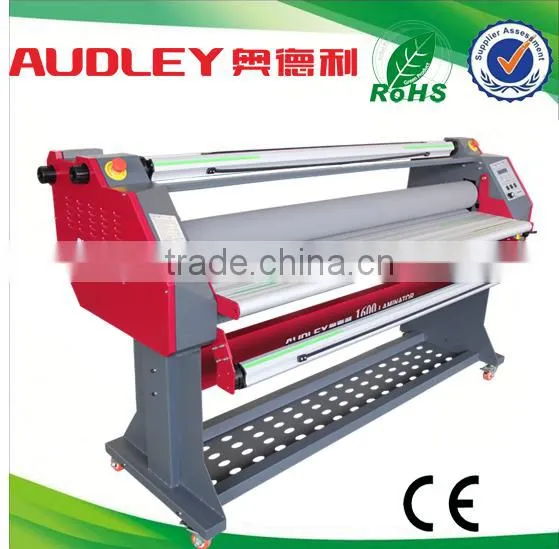

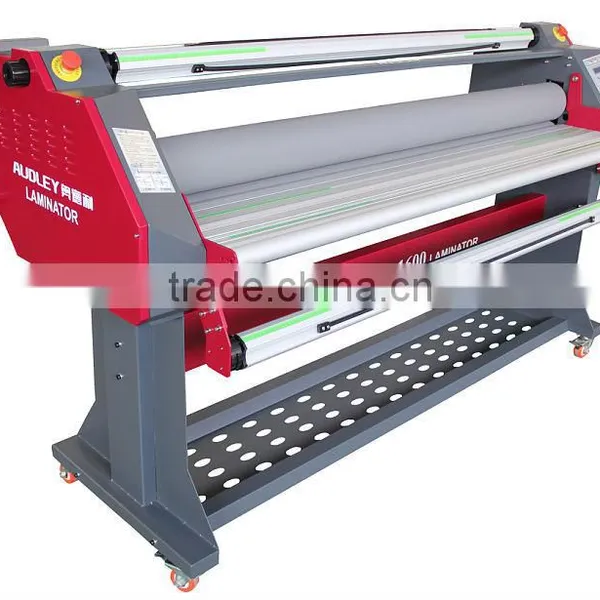

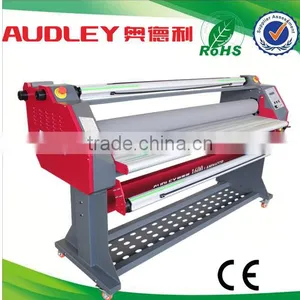

Heated Roll Laminator Type and 62'' Paper Size Roll Laminator System
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- any port
- T/T Credit Card PayPal
You May Like
-
Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
-
1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
-
220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
-
400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
-
400mm 600w infrared quartz heating element carbon fiber quartz tubes
-
230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
| Condition: | New | Application: | Other, Film Laminating | Packaging Type: | Film |
| Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Pneumatic |
| Voltage: | 220V | Power: | 2200W | Place of Origin: | Henan, China |
| Brand Name: | Audley | Model Number: | ADL-1600H5+ | Dimension(L*W*H): | 215*80*74cm |
| Weight: | 205/255KG | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Heated Roll Laminator Type and 62'' Paper Size Roll Laminator System:
| Technical Parameters | |||||||
| Model | ADL-1600H1 (hot) | ADL-1600H5+ (hot) | ADL-1600C5+ (cold) | ||||
| Max Width | 1600mm | 1600mm | 1600mm | ||||
| Max Thickness | 20mm | 65mm | 65mm | ||||
| Speed | 0--7m/min | 0--7m/min | 0--7m/min | ||||
| Temp Range | room temp-120℃ | room temp-120℃ | room temp-60℃ | ||||
| Lifting Way | unilateral ascension | Pneumatic(air pump) | Pneumatic(air pump) | ||||
| Heating Way | infrared heating | infrared heating | infrared heating | ||||
| Preheating Time | 10-15min | 10-15min | 5-10min | ||||
| Rated Input Power | 2200W | 2200W | 1200W | ||||
| Power | 0.8-1kw/h | 0.8-1kw/h | 0.3-0.5kw/h | ||||
| Rated Input Voltage | 110/220V | 110/220V | 110/220V | ||||
| Weight | 230/180kg | 255/205kg | 215/165kg | ||||
| Packing Size | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | ||||
