Home > Products > Laminating machine > Automatic Low Temperature Roll Laminator ADL-1600C5+

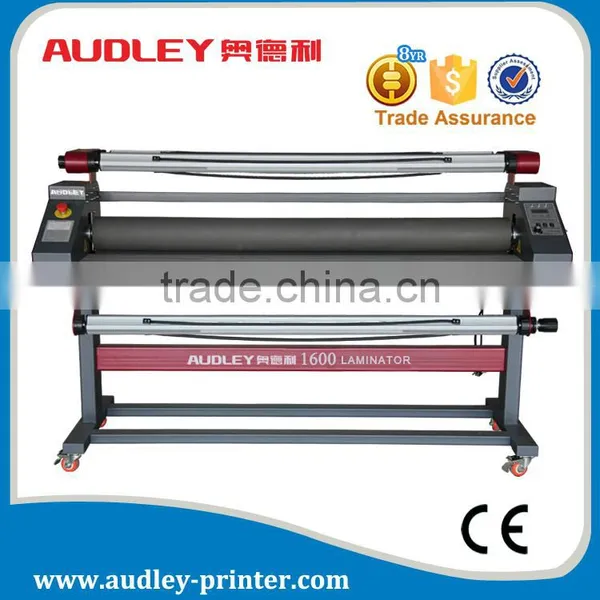

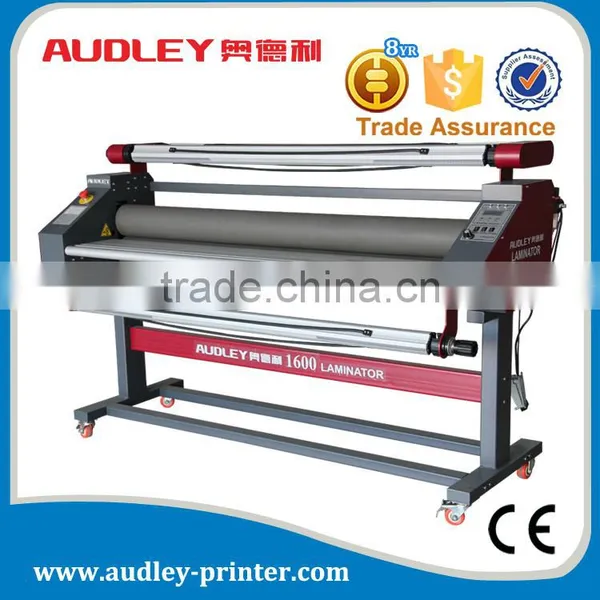

Automatic Low Temperature Roll Laminator ADL-1600C5+
Negotiable
/ Set
1 Set(Min. Order)
- any port
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, film laminating | |
| Packaging Type | Film | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 220V | Power | 1200W | |
| Place of Origin | Henan, China | Brand Name | Audley | |
| Model Number | ADL-1600C5+ | Dimension(L*W*H) | 215*80*74CM | |
| Weight | 165/215KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
automatic low temperature roll laminator ADL-1600C5+:
| Technical Parameters | |||||||
| Model | ADL-1600H1 (hot) | ADL-1600H5+ (hot) | ADL-1600C5+ (cold) | ||||
| Max Width | 1600mm | 1600mm | 1600mm | ||||
| Max Thickness | 20mm | 65mm | 65mm | ||||
| Speed | 0--7m/min | 0--7m/min | 0--7m/min | ||||
| Temp Range | room temp-120℃ | room temp-120℃ | room temp-60℃ | ||||
| Lifting Way | unilateral ascension | Pneumatic(air pump) | Pneumatic(air pump) | ||||
| Heating Way | infrared heating | infrared heating | infrared heating | ||||
| Preheating Time | 10-15min | 10-15min | 5-10min | ||||
| Rated Input Power | 2200W | 2200W | 1200W | ||||
| Power | 0.8-1kw/h | 0.8-1kw/h | 0.3-0.5kw/h | ||||
| Rated Input Voltage | 110/220V | 110/220V | 110/220V | ||||
| Weight | 230/180kg | 255/205kg | 215/165kg | ||||
| Packing Size | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | 215*80*74cm(1.273m3) | ||||
