digital printing plotter
Negotiable
/ Set
1 Set(Min. Order)
- shanghai/qingdao
- T/T L/C Credit Card PayPal
You May Like
-
3.2m outdoor and indoor dx7 head solvent printer price ,cheap solvent printer ADL-3200
-
Original DX5 Eco Solvent large format Printer/outdoor/indoor 8520
-
S7000-X5 car sticker printing machine
-
DX5 head wallpaper/cloth/pvc printer
-
fast speed solvent printer
-
Automatic inkjet printer, solvent printer, ink printing machine ADL-8520
Product Details
| Condition | New | Plate Type | Flatbed Printer | |
| Brand Name | audley | Model Number | 8520 | |
| Usage | Bill Printer, Card Printer, Label Printer, Paper Printer, Other, Bill Printer, Card Printer, Label Printer, Paper Printer, flex banner car sticker, | Automatic Grade | Semi-Automatic | |
| Voltage | AC220 | Gross Power | 1700w | |
| Dimensions(L*W*H) | 2900x770x790 | Weight | 270kg | |
| Certification | iso ce | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

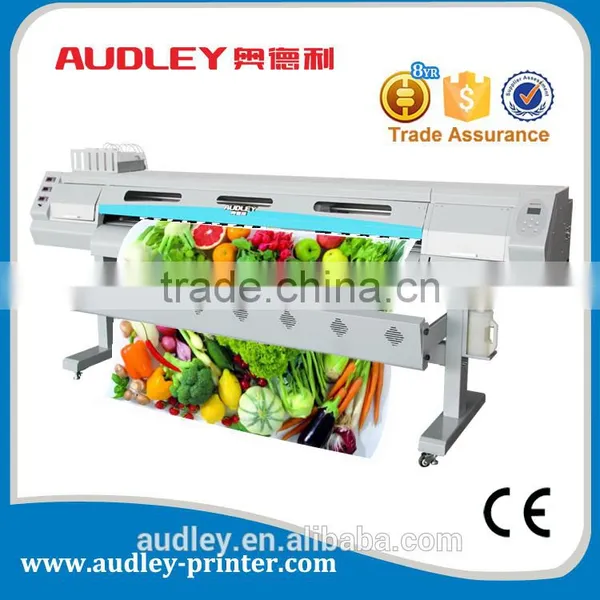

1.6m /1.9m digital printing plotter
Technical parameters
| Printhead | EPSON DX5 Piezo-Electric Prinhead | |
| Number of Printhead | ONE | |
| Print Resolution | 1440dpi | |
| Maximum Print Width | 1850mm/1550mm | |
| Print Speed | Draft Model 2pass:16m2/h | |
| Production Model 4pass:12m2/h | ||
| Quality Model 6pass:10m2/h | ||
| High-resolution Model 8pass:6m2/h | ||
| Ink | Type | Water-basedink/Eco-solvent ink/Sublimation ink |
| Color | Double 4 colors(KCMY) | |
| Capacity | 450ml of each ink cartridge | |
| Ink Supply System | Negative Pressure Continuous Ink Supply System | |
| Media | Maximum Width | 1900mm/1600mm |
| Feeding System | Maximum Weigh 25KG | |
| Take up Device | Optional | |
| Type | Indoor PP,PP sticker, Photo paper, Backlit film,PVC film,etc. | |
| Printhead Height | Adjustable | |
| Printhead Clean | Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function | |
| Driver System | windows XP | |
| Heating System | Tri-stage Heating System Control By PID Temperature Control System | |
| Drying System | External Drying Fan (Optional) | |
| Language | English/Chinese | |
| Operation System | WindowsXP | |
| Print Interface | USB2.0 | |
| RIP Software | MainTop 5.3(Free)Ultraprint(Charge) | |
| Working Enviroment | Temperature:18°- 35° Humidity:40RH - 70RH | |
| Power Supply | AC_110V/220V, 50/60HZ | |
| Power(W) | Stand-by Power 400W,Maximum Power 1500W | |
| Noise | Stand-by<32dB ,Working<65dB | |
| Package Dimension | 2650mmx810mmx1260mm(LxWxH)/2350mmx810mmx1260mm | |
| Package Weight | 230kg/200kg | |
Detailed Product Description:
1 dx5 printhead,printing color c/m/y/k/,greatly improve the printing speed
2advanced micro piezo technology,realized 1440 dpi perfect printing effect
3 stable mute linear Guide will improve the printing speed and resolution
4convenience high speed USB inter face ,plug and play
