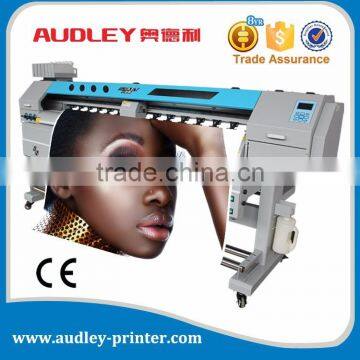

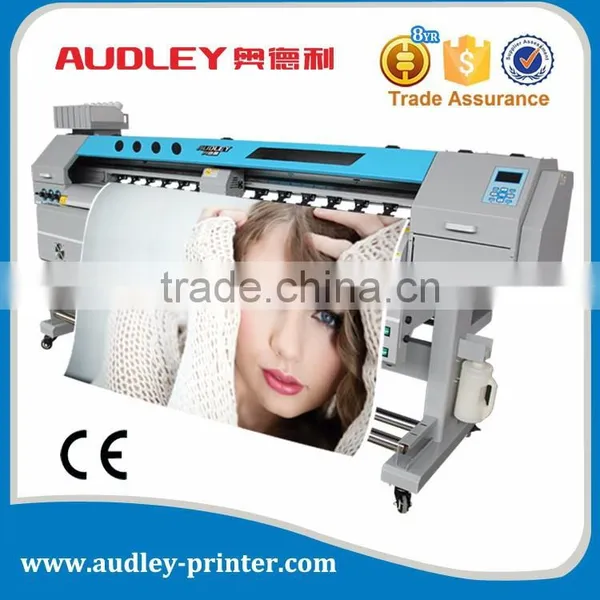

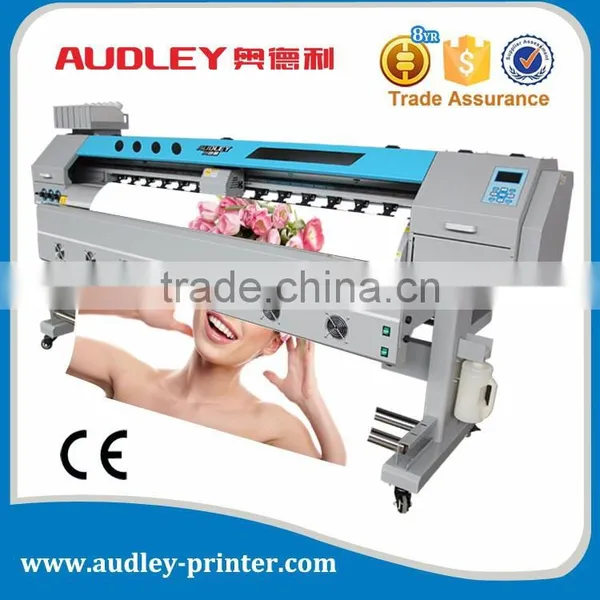

DX5 HEAD Large Format Vinyl Plotter Printer

Name: DX5 HEAD Large Format Vinyl Plotter Printer
Brand: AUDLEY
SKU: 143350446
Availability: InStock

Zhengzhou Audley Digital Control Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Henan, China

Payment & Shipping

Payment Methods:

Port of Shipment:

any port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Flatbed Printer

Place of Origin Henan, China

Brand Name AUDLEY

Model Number ADL-A1951

Usage Paper Printer

Automatic Grade Automatic

Voltage 220V

Gross Power 1500W

Dimensions(L*W*H) 290*80*77CM

Weight 220*270KG

Certification CE,SGS

After-sales Service Provided Engineers available to service machinery overseas

DX5 HEAD large format vinyl plotter printer:

Technical Parameters:
Model	ADL-A1951 / ADL-A1971	ADL-A1651 / ADL-A1671
Printhead	EPSON DX5 / DX7 1printhead
Print Resolution	1440*2880dpi
Max Print Width	1850mm // 1550mm
Print Speed	Draft Model 2pass: 30m2/h (1printhead)
	Production Model 4pass: 20m2/h (1printhead)
	Quality Model 6pass: 15m2/h (1printhead)
	High-resolution Model 8pass: 10m2/h (1printhead)
Ink	Type: Eco-solvent,water-based ink,dye sublimation
	Color: C M Y K
	Capacity: 450ml per cartridge
	Ink Supply System: Negative pressure CISS
Media	Feeding System: Roll to Roll,Pieces
	Type: PP,Photo paper, backlit film, PVC etc.
Printhead Height	Adjustable
Printhead Clean	Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function
Heating System	Tri-stage Heating System Control By PID Temperature Control System
Drying System	External Drying Fan (Optional)
Language	Chinese/English
Operation System	WindowsXP/Win7
Print Interface	100M/Network Interface
Compatibility	Support LAN Print
RIP Software	MainTop 5.3(free)/ photoPRINT & Ultraprint (charge 300USD)
Working Enviroment	Temperature:15°- 35° Humidity:35RH - 65RH
Power Supply	AC_110V/220V, 50/60HZ
Power(W)	Stand-by Power 32W,Maximum Power 1500W
Noise	Stand-by<32dB ,Working<65dB
Packing Size	2908077cm // 2547775cm
NW/GW	220kg/270kg // 200kg/242kg
