Home > Products > Inkjet Printer > 3.2m high speed digital large format flex banner/vinyl ECO solvent inkjet printing machine

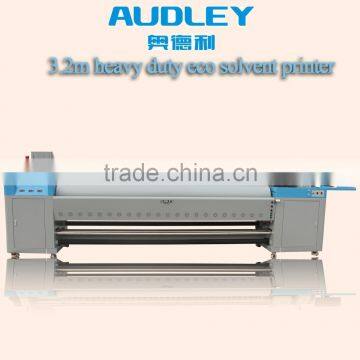

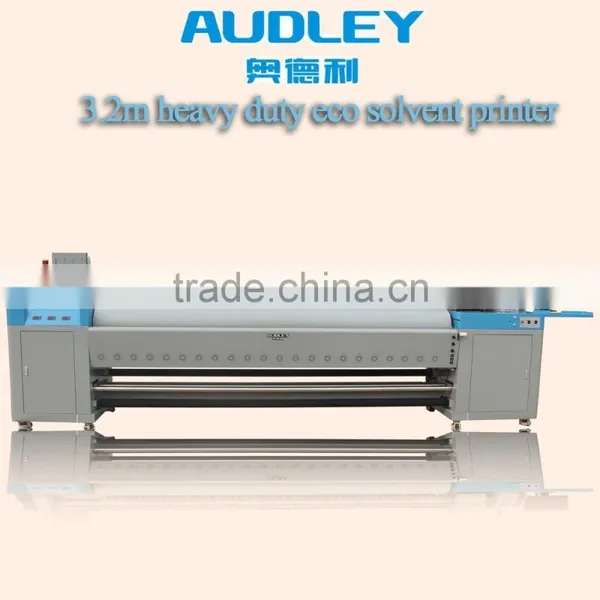

3.2m high speed digital large format flex banner/vinyl ECO solvent inkjet printing machine
USD $8,300 - $8,300
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Shanghai Qingdao Ningbo etc.
- T/T Credit Card PayPal
You May Like
- Flatbed UV Printer 9060 6090 Flatbed Printer with Ricoh Heads
- Diagraph TJ500/TJ1000 THERMAL INKJET PRINTERS
- Yaomatec Maunfacture Handheld Printer 50.8mm Expiry Date Industrial Hand Inkjet Printer
- Yaomatec Manufacture Handheld Printer 10CM Industrial Inkjet Printer Expiry Date Production Date Printer
- Yaomatec Maunfacture Handheld Printer 25.4mm Metal Wood Plastic Industrial Inkjet Printer Expiry Date printer
- Yaomatec Maunfacture Handheld Printer D30 Model English 12.7mm Logo Printer Handheld Inkjet Expiratio
Product Details
Condition: | New | Plate Type: | Flatbed Printer | Place of Origin: | Henan, China |
Brand Name: | Audley | Model Number: | ADL-H3200 | Usage: | Paper Printer |
Automatic Grade: | Automatic | Voltage: | 220V | Gross Power: | 5000W-7500W |
Dimensions(L*W*H): | 520*110*160CM | Weight: | 1200KG | Certification: | CE, ISO, SGS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Technical parameters | ||
Model | ADL-3200 | |
Printhead | EPSON DX5 / DX7 Piezo-Electric Prinhead | |
Number of Printhead | TWO | |
Print Resolution | 1440dpi * 2880dpi maximum | |
Maximum Print Width | 3200mm | |
Print Speed | Draft Model 2pass:65m2/h | |
Production Model 4pass:45m2/h | ||
Quality Model 6pass:35m2/h | ||
High-resolution Model 8pass:20m2/h | ||
Ink | Type | Water-based ink/Eco-solvent ink |
Color | Double 4 colors(KCMY) | |
Capacity | 1000ml of each ink cartridge | |

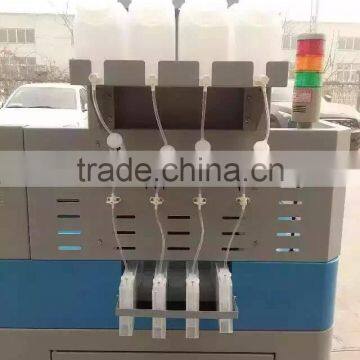

Ink Supply System | Negative Pressure Continuous Ink Supply System | |
Media | Maximum Width | 3500mm |

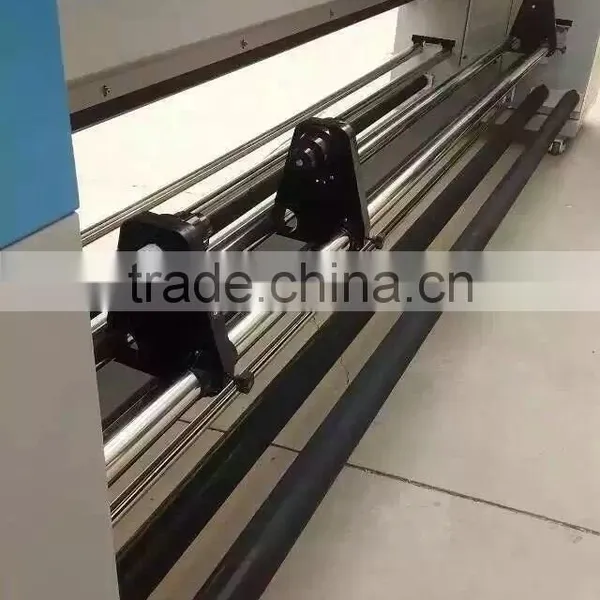

Feeding System | Maximum Weight 50KG | |
Take up Device | Optional | |
Type | Car sticker,Canvas,Flex banner,One way vision,PP paper,PP sticker, Photo paper, Backlit film,PVC film,etc. | |
Printhead Height | Adjustable | |
Printhead Clean | Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function | |
Driver System | windows XP,WIN7,WIN8 | |
Heating System | Tri-stage Heating System Control By PID Temperature Control System | |
Drying System | External Drying Fan | |
Language | English/Chinese | |
Operation System | Windows XP,WIN7,WIN8 | |
Print Interface | USB2.0 | |
RIP Software | MainTop 5.3(free)/ photoPRINT & Ultraprint (charge 300USD) | |
Working Enviroment | Temperature:15°- 35° Humidity:40RH - 70RH | |
Power Supply | AC_110V/220V, 50/60HZ | |
Power(W) | Stand-by Power 400W,Maximum Power 5000W | |
Noise | Stand-by<32dB ,Working<65dB | |
Package Dimension | 520*110*160cm | |
Package Weight | 1200KG | |
Transaction information | ||
Delivery port | Shanghai/Tianjin/Qingdao/Gangzhou/Shengzheng/Ningbo | |
Min order | one set | |
Payment Method | 100% T/T in advance | |
Delivery Time | 5 working days after receiving payment | |
Gurantee Term | 1 year, with technical support lifelong and after-sale service |
