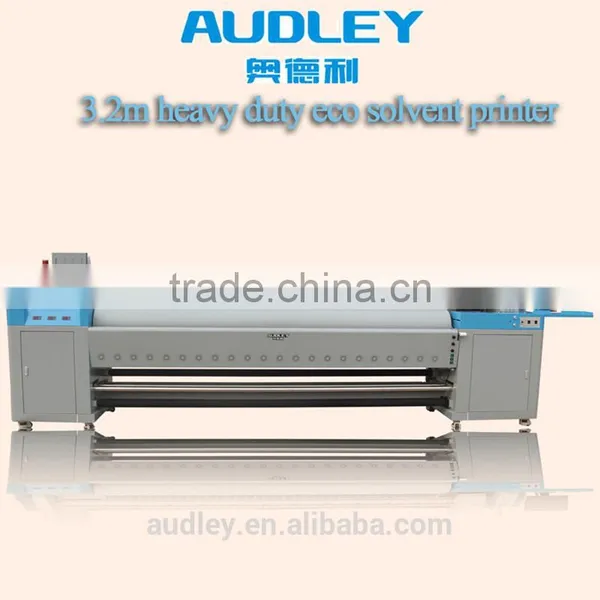

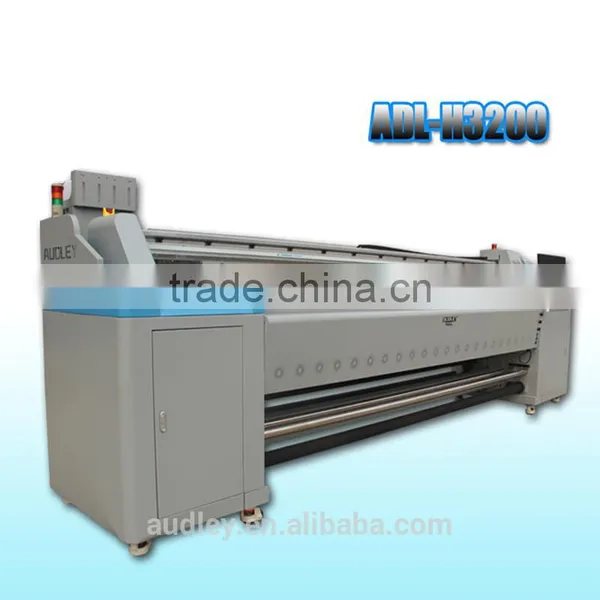

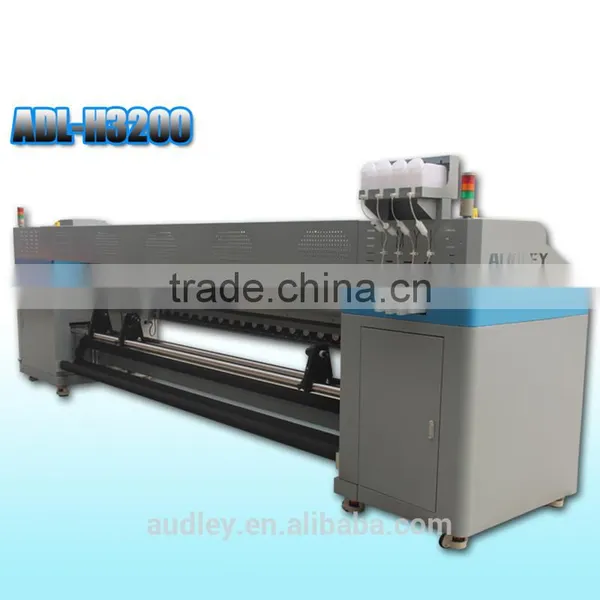

Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing

Zhengzhou Audley Digital Control Equipment Co., Ltd.
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-1
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-2
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-3
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-4
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-5
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing thumbnail-6
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-1
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-2
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-3
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-4
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-5
Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer With 2 DX5 Heads For Banner And Sticker Printing photo-6
US$ 8,500 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Henan, China
Brand Name Audley
Model Number H3200
Usage Paper Printer, Other, Paper Printer, Large Format Printer
Automatic Grade Automatic
Voltage AC 220V,50Hz/AC 110V 60Hz
Gross Power 5000w
Dimensions(L*W*H) 515*105*145cm (LxWxH)
Weight 780kg
Certification CE SGS MSDS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer with 2 DX5 heads For Banner And Sticker Printing is suitable for producing advertising and fabric printing in almost of material. It is widely used to produce the indoor and outdoor advertising, car and bus ribbon paper, heat transfer paper, etc with all kinds of ink.

SPECIFICATIONS FOR Audley H3200 3.2m or 10.5ft Cheap Large Format Eco Solvent Printer with
2 DX5 heads For Banner And Sticker Printing

Power
Power consume
W
5000
Power supply
AC
220V,50Hz/110V 60Hz
Power Connector
Three-Socket



Print head
Brand
Epson
Japan
Item No.
DX5, DX7
Number
2 heads
Print head Nozzle
nozzle
8*600
Printing Resolution
1440*1440 dpi


INK
Ink Type
water-based ink/eco-solvent ink
Ink Color
Double 4 colors(KKCCMMYY)
Ink Capacity
1500ml of each ink cartridge
Ink Supply System
Negative Pressure Continuous Ink Supply System


Print Speed
Sketh Type
2 pass
65 m2/h
Production Type
4 pass
45 m2/h
Precision Type
6 pass
35 m2/h
Quality Type
8 pass
20 m2/h

Drying System
Heating
Front ,midel ,back three sections heating system,PID temperature controller
Fanning
 Optional




Medium
Medium compatibility
General width(630-3200mm) inkjet medium
Medium dipose
General width inkjet medium
Medium Aquosity
PVC film,Wallpaper, Reflective film, Textile, fabrics, Canvas, Gum,etc
Medium Oiliness
Vinyl, Flex,Banner,Wallpaper,PP,Car sticker, Photo paper, Inkjet Light Box
Max medium width
mm
3200





Printing
Max printing size
mm
3150
Printing technology
Piezo-electric photo album machine with double DX5/DX7 generation Epson printing head
Printhead Height
1.5-3mm above media adjustable
Printing resolution
dpi
1440*1440
Printing software
Maintop 5.3(Free)/Ultraprint(Chareged)/photo print (charge)
Driven system
Windows XP, Windows 7
Noise
Stand-by<32dB ,Working<65dB
Connector
USB2.0

Package
Machine Dimension
mm (LxWxH)
5150*1050*1450
Package Dimension
mm (LxWxH)
5200*1150*1500
NW/GW
kg
780kg/800
Warranty
One year

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components ,electric parts and operation parts.
3) Automatic Printer and Body frame in integrated design ,save cost and worker.
4) Different print speed is not only suitable for Industrial production ,but also supplied to high quality printing.
5) Connect with computer or laptop ,easy to operate by single person.

Certifications
Detailed Images

Machine Parts

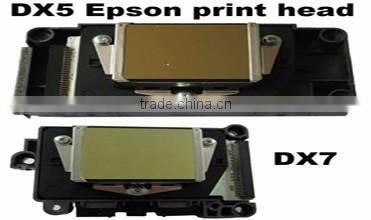

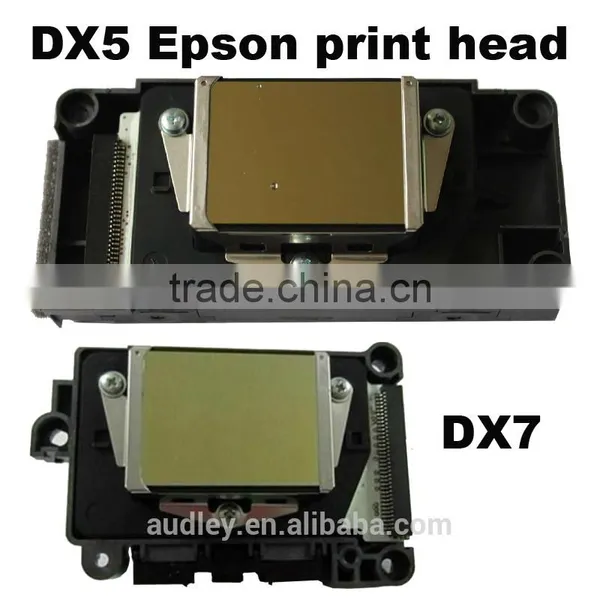

Name: Print Head

Brand: Epson

Original: Japan

Imported famous Print head, hold 8*600 nozzle, could realize high speed industrial production and high quality printing.

Main Features

Name: Print head box
Brand: Audley
Original: China
Independent design fixes print head perfectly. It realizes fast speed print for industrial production.

Machine Parts

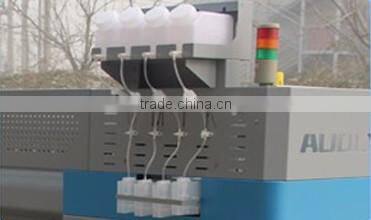

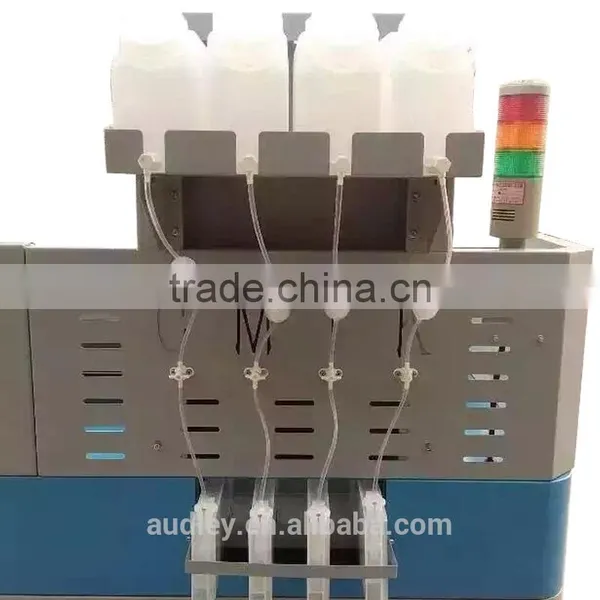

Name:  Ink Box
Brand: Audley
Original: China
One level and two level ink box ensure the ink gentle and stable offering to printer.

Main Features

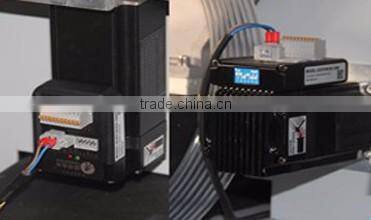

Name: X Y movement servo motor
Brand: Audley
Original: China
Keep the work more stable last longer.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Machine Size
515*105*145cm
N.W/G.W
780kg/800kg

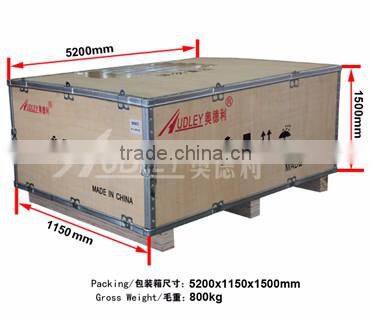

Packaging Details
The normal package is wooden box(Size:520*115*150cm). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special request.
Shipment



shipment



Ocean shipping is the best transport, if the product is urgent, contact us to check the best freight for reference
