Heracles china supplier best price poultry farm raw materials
Working principle:

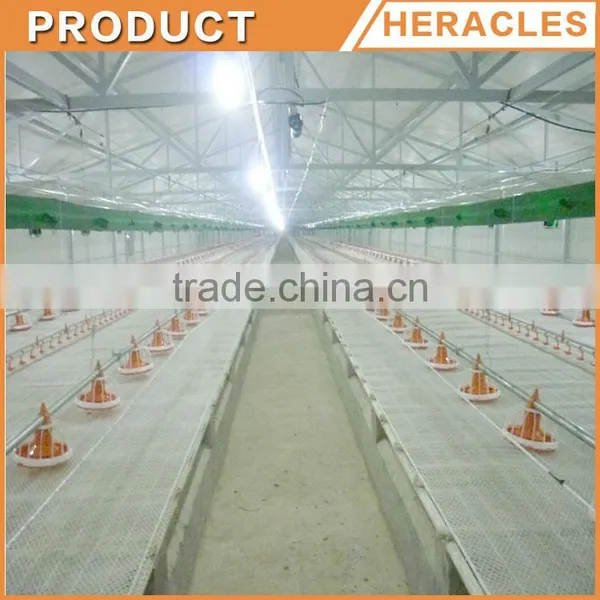

By using this system, the feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken houses. There is one feed sensor at the end of main feed line, which controls on/off of the motor automatically to achieve the aim of automatic feeding.The system can reduce labor intensity effectively, one chicken house just need one breeder/worker.
Automatic feeding broiler lines "from tray, tube, screw conveyor, Hopper, drive motor and other components, Heracles broiler main line high quality line, tray madeof pure raw material injection into feed tube with 275g hot dip galvanized material, and Auger with South Africa imported Auger drive motor Taiwan produces an almost pure copper wire motor, top quality. Performance parameters of Winbond feeding system for broiler feeding line pipes: hole 3 hole/3.4-meter/3 m diameter:¢ 45mm material: hot galvanized steel galvanized 275g/m2 thickness: 1.2mm spiral spring Auger: South Africa feed production capacity: 450kg/h v, driving motor power: 0.75kw voltage: 380V frequency: 50HZ AC
| Name | Specification |
| Feeding ability | 1400kg/h |
| Motor delivery capacity | ≥450g/h |
| Pan capacity | 300g |
| Auger | South Africa ,36’ 45’ 63’ 75’ |
| Feed pipe | PVC 45mm ,3-4 apertures |
| Motor | 0.75KW , 380v (220V) ,50HZ, (60HZ) |
| Sensor | IFM sensor |
| Hopper capacity | 80kg |
| Feed pan | 14 grills (16 grills) |
technical parameters of pan feeding system:
Container volume is 120 liters, V hopper
Diameter of pan:360mm,with 16 grills
Hot galvanized pipe's diameter: 45mm,with 3-4 aperture
Slowdown motor 50W,380V,conveying speed 450kg/h
Model 350 bi-directional pan
Special imported high-carbon manganese steel auger
Distribution system, electronic and mechanical level control
Convenient cleaning, as feed pan for brooder
W shaped pan base with 5.5cm height which is suitable for day one chick feeding. No feeding plate is required. Adopting high position of feed drop to ensure the feed to be dropped to W shaped base which offers better feeding positions
German imports of electronic material level contyoller
Pan Feeding Auger is designated for straight feeding transportation .
As the best Auger in the world that we are proud to recommend new developed Model Fatiqless TM .It has adopted revolutionary new materials during the production to offe invisiable Auger in reallity opearation.
