Heracles Trade Assurance Venlo Greenhouse

Greenhouse struture:

1.Use hot-dipped galvanized steel, a-shaped roof.
2.Covering material with a single layer of glass or hollow glass, glass can be fully tempered.

Technical parameters：

Characteristics of greenhouse：

1.Solve the contradictions of the greenhouse heat and light
2.Good winter insulation
3.Unique glass seal structure,really solve the roof leak problem.
4.Glass greenhouse with a beautiful appearance, light well, showing good results, long life and other advantages for low light, and where there is geothermal energy and waste heat from power plants, glass greenhouse is a better choice.
5.This type of greenhouse can realize automatic control, a complete alternative heating systems, sunshade systems, the cooling pad system, CO2 complementary system, light system, and spray, drip irrigation and fertilization systems, computer integrated control system, sprinkler system.

Using high quality galvanized steel,galvanized after welding of all component processing technology.
Quality assurance 20 years, zinc adhesion amount more than 490g/square meters, thickness greater than 70 microns.
Connectors and fasteners for 20 years does not rust.

Covering materials:

Shade material:

Curtain is divided into two types: breathable and insulating type according to need a different rate type and shade curtain.

Outside sheding system:

Removable seedbed:

1.Flat surface, solid welding, bearing good dimensional accuracy, installation convenience, corrosion-resistant and durable；
2.Main structure made of aluminium alloy frame, hot dip galvanized material, anti-corrosion properties, good load-carrying capacity and long service life
3.Prevent tilt caused by emphasis moving With roll-over limit device.
4.Connecting and sealing by alloy profiles or dedicated seals,beautiful appearance.
5.Improving area utilization could be over 90%
6.In addition to the fixed bed, the price is relatively low but low utilization ratio of greenhouse

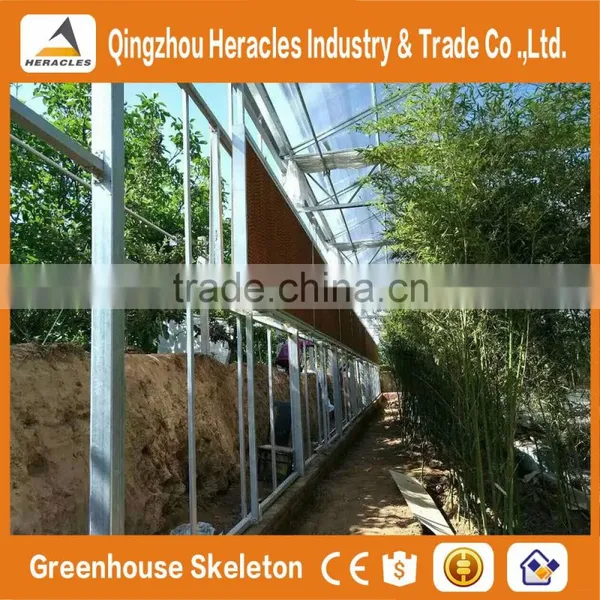

Fan-wet curtain cooling system:

Principle of evaporative cooling using water for cooling purpose, special water-repellent pad to ensure the water is evenly wet the entire cool wet curtain wall, air penetrating the media pad, pad heat exchange surface of the water, and thus the air humidification and cooling.

Irrigation system:

1.Designing reasonable irrigation and water treatment systems, improves the absorption of crop fertilizers, improved crop quality.
2.Particularly suitable for areas with poor water quality and plant requires high quality crop of greenhouse.
3.Advanced treatment processes and effective integration of greenhouse production technology.

Heating system:

1.Fully avoid the temperature of positive pressure combustion is not overflowing, combustion, flue gas, local burn and other defects. Multi-level circulating heat exchange technology, heat transfer around every corner, makes the heat more completely and more fully.
2.Fresh air, temperature uniformity, controllable; comfortable and warm environment. Specific forward-looking double fan design.
3.Using new boiler furnace with high temperature resistant special steel pipes, seamless pipes made, this machine uses the secondary heating, high thermal efficiency, heating, air cleaner, semi-automatic temperature control, easy to install and so on.
