Mini farm cultivator tiller
Mini farm cultivator tiller
Min tiller is mainly used to paddy field,dry field,orchard,greenhouse,nursery garden.Main functions are rotay tillage,mowing,ridging,and so on.Especiall suitable for small greenhouses,intensive orchards,hillsider plot.
Standard configuration:
1. Rotary blade 2pcs 2. Weeding wheel 2pcs
This machine can choose blades,as follows:
1. hoe blade 2.Ridging knife 3.Ridger
Feature:
1. The machine short,in a small space and slope land operation.
2.Stepless speed change,forward gear2.Working speed is controlled by the throttle and operation easy.
3.Safe and reliable,single set of the handle,when you loosen clutch of the handle which is stopping to forward to back.The elderly or women and children operational.
1WG-4 Min tiller teachnical date,as follows:
| NO. | Item | Unit | Teachnical date |
| 1 | Engine power | HP | 7.5hp,gasoline engine |
| 2 | Engine brand | Chongqing jiaoma | |
| 3 | Displacement | CC | 212 |
| 4 | Engine start way | Hand | |
| 5 | Overall size | LXWXH(mm) | 1640x650x550 |
| 6 | Weight | KG | 76 |
| 7 | Gear | foward 2 backward 1 | |
| 8 | Tiller deep | mm | 150-300 |
| 9 | Tiller width | mm | 500-1050 |
| 10 | Working efficiency | hm2/h |
Rotary1.2-3.0 Plow0.6-1.2 |

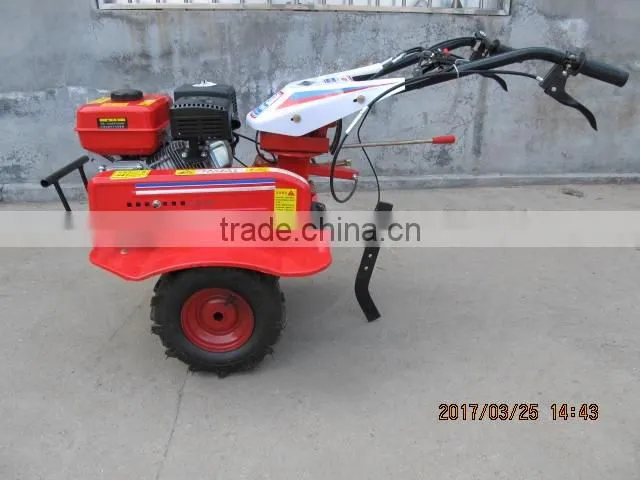

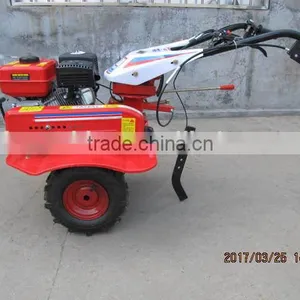

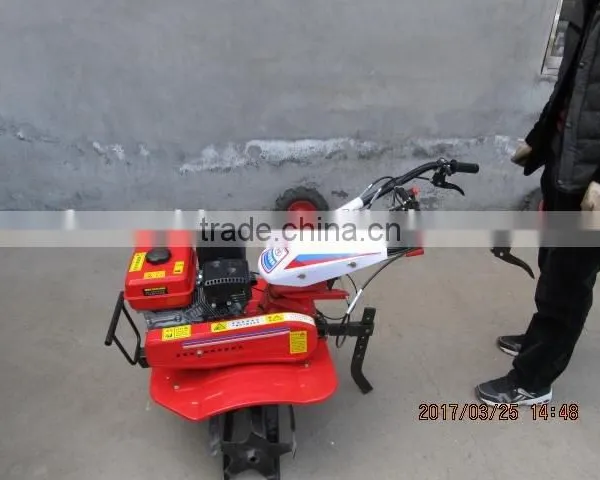

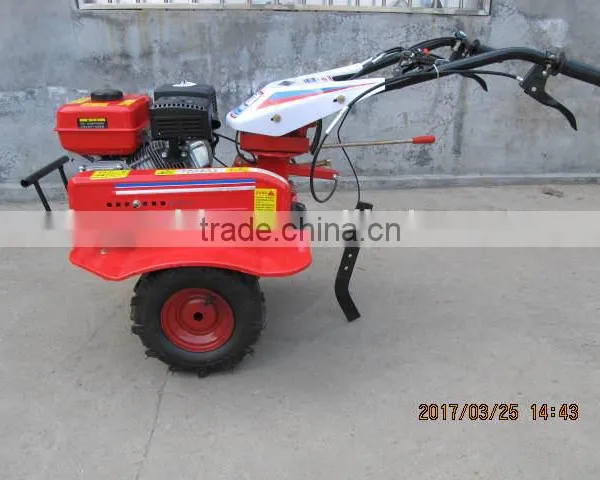

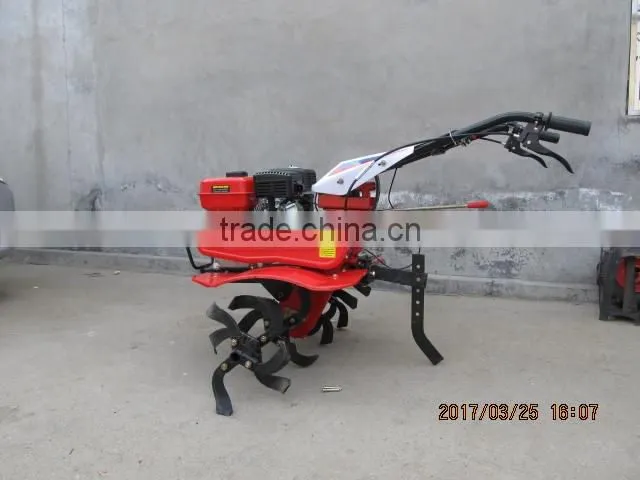

Picture detail:
Pre-Sales Service
1) Production arrangement.
2) Production planning provided.
3) Workshop visiting available.
4) Detailed specifications of machines provided.
5) Able to provide deatield Solutions.
After-Sales Service
2) Repairing and maintenance if any problem occur in warranty.
3) Installation and clerks training.
4) Spare and wearing parts for free or with discounts.
5) Inspections in factory.
