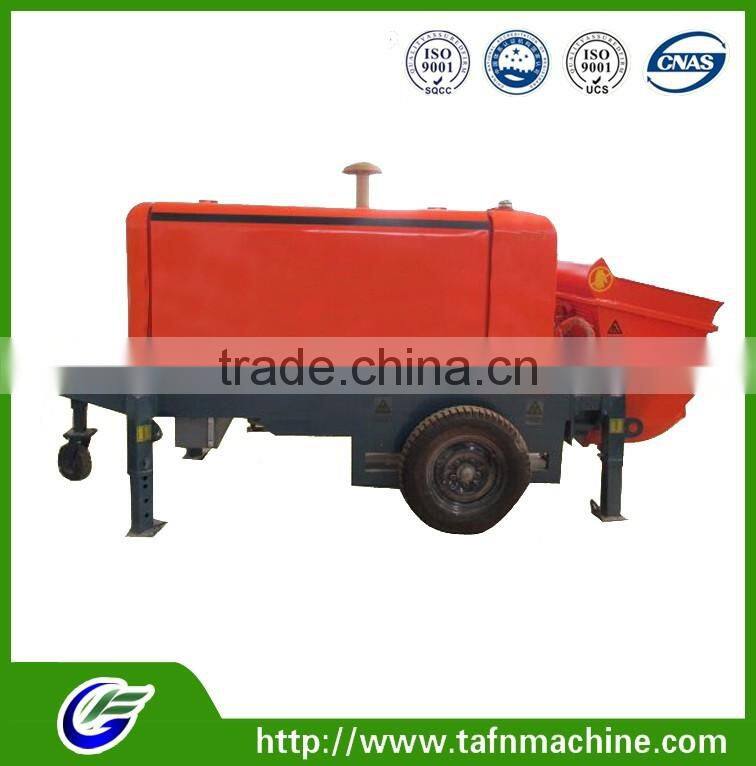

New condition and diesel power small portable concrete pump
New condition and diesel power small portable concrete pump
1.Diesel engine:Weichai,Germany Deutz,Janpan siemens,Mitsubishi etc..

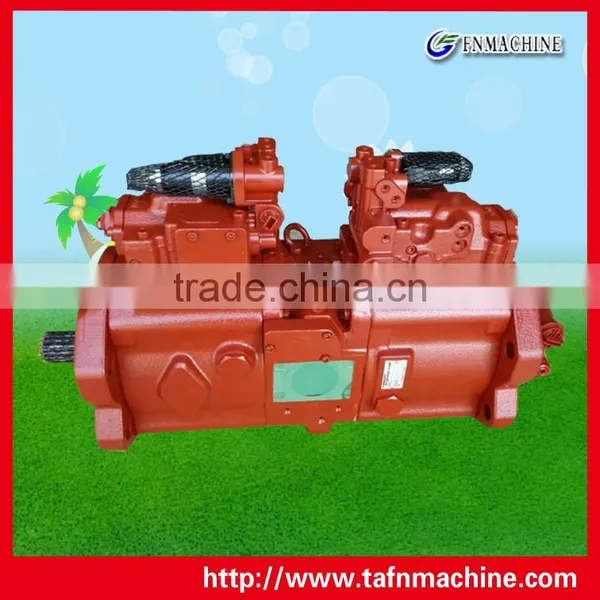

2.Hydraulic oil pump:Janpan Kawaski or German Rexroth etc..
Do you want to know diesel concret pump teachnical date?as follows:
| NO. | Item | Unit | Diesel concrete pump HBTS10 |
| 1 | Max Theoretical concrete output | m3/h | 10 |
| 2 | Max Concrete outlet pressure | MPA | 6 |
| 3 | Concrete slump | mm | 120-230 |
| 4 | Aggregate size | mm | Finestone 10 |
| 5 | Hydraulic oil pump | Kawasak | |
| 6 | Distributing valve | S | |
| 7 | Outlet Diameter | mm | 80 |
| 8 | Hydrualice valve | Beijing Huade | |
| 9 | Power | KW | 32 |
| 10 | Rotation rate | r/min | 1480 |
| 11 | Concrete cylinder | mm | ¢120/500 |
| 12 | Main hydraulic cylinder | mm | ¢80/500 |
| 13 | Fuel tank capacity | L | 100 |
| 14 | Hopper capacity | m3 | 0.2 |
| 15 | Feeding height | mm | 1100 |
| 16 | Theoretical delivery distance(Vertical height/horizontal distance) | m | 30/100 |
| 17 | Pipe washing way | Washing | |
| 18 | Dimension | mm | 2300x1400x1800 |
| 19 | Total weight | kg | 2100 |
| 20 | Chassis model | Trail | |
| 21 | Support way | The fixed support leg | |
| 22 | Hydraulic fluid raditation ways | The air cooling radistor |

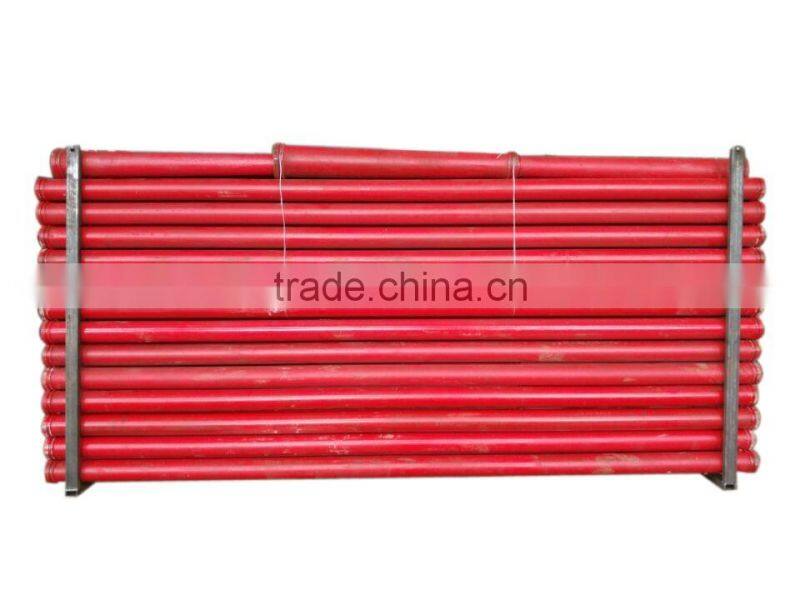

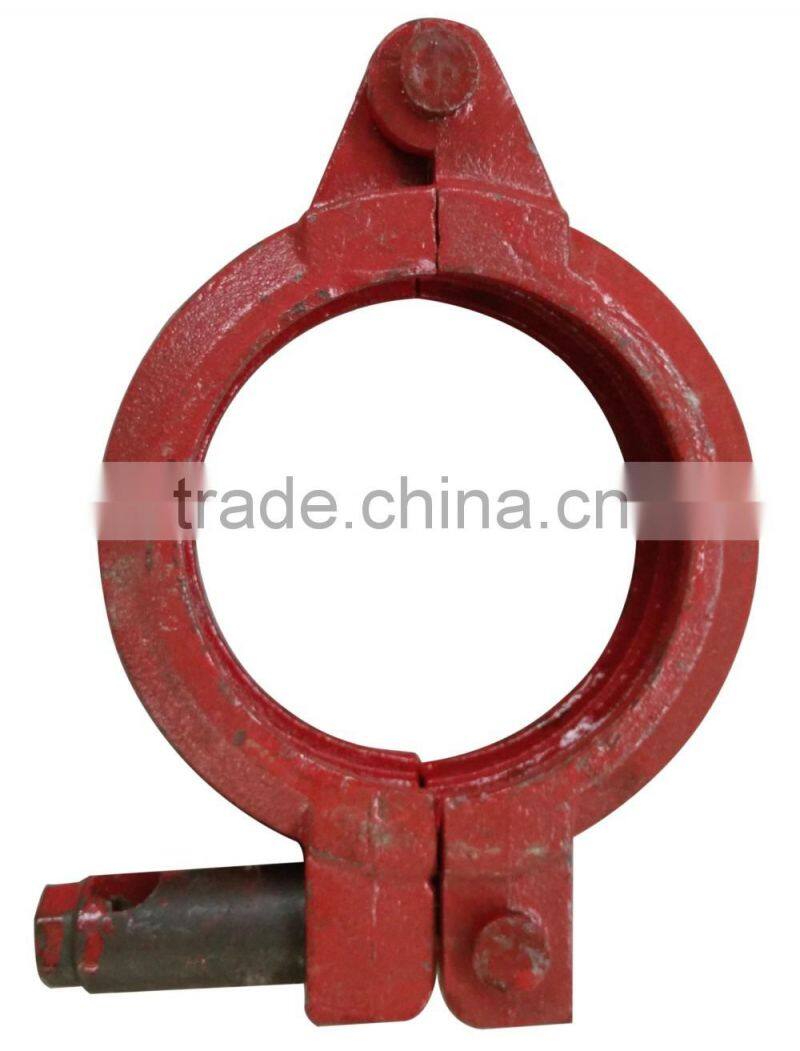

Spare parts:
Why choose our company?
1.High quality pipe with reasonable price.
2.Advanced test equipments and professional inspection measures to guarantee our quality.
3.Our products are widely used in construction, water supply and other fields.
4.The after-sale service is good, customers can buy our products without any worries.
5.We can produce different kinds of pipes according to customers’ requirements.
6.We have exported our products to many foreign countries. Our products are popular among these countries.
Please let us know which model of concrete trailer pump you need?
1. The motor (diesel or electric)?
2. The output?
3. The aggregate size that you usually use?
4. How long and high you want to pump?
With the above information, we could propose you the accordingly and exact model of concrete pump for you.
