Help CenterPolyisocyanurate (PIR) Insulation Board
Related Products
Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Panel Material: | Type: | PIR foam Density: | |||
| Thermal conductivity: | Comprssing Strength: | Aluminum Foil Thick: | |||
| Bending Strength: | Fire proof performance: |
Packaging & Delivery
| Packaging Details: | air duct panel export standard plastic bag and carton,10pcs per pack |
| Delivery Detail: | with 7 days after receivin the deposit money |
Specifications

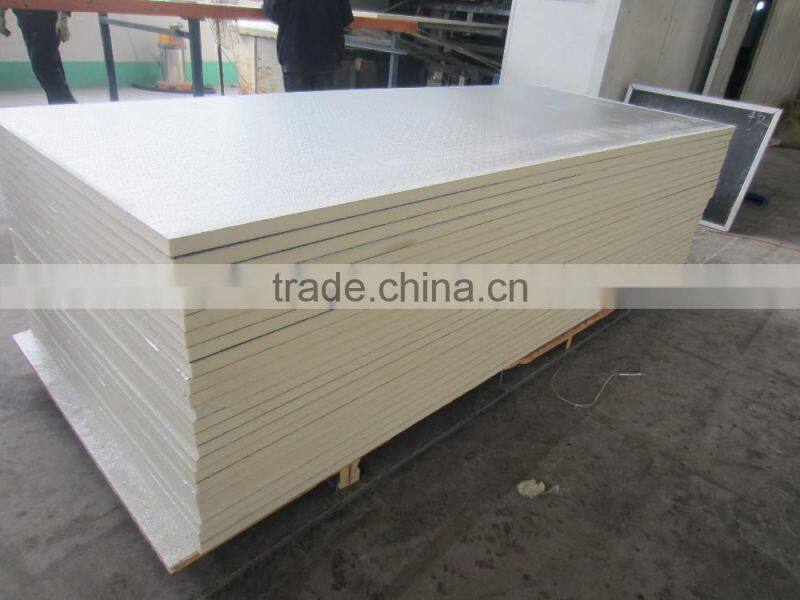

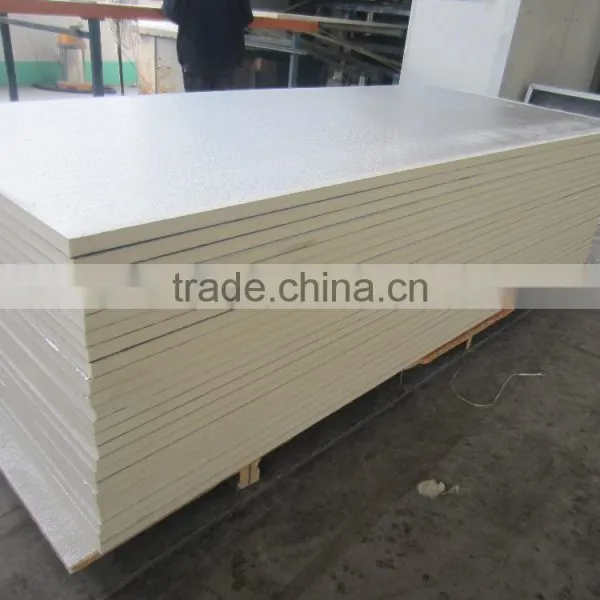

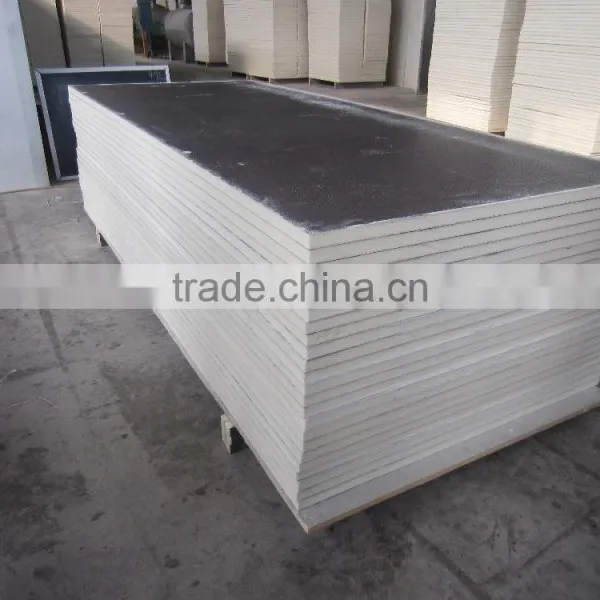

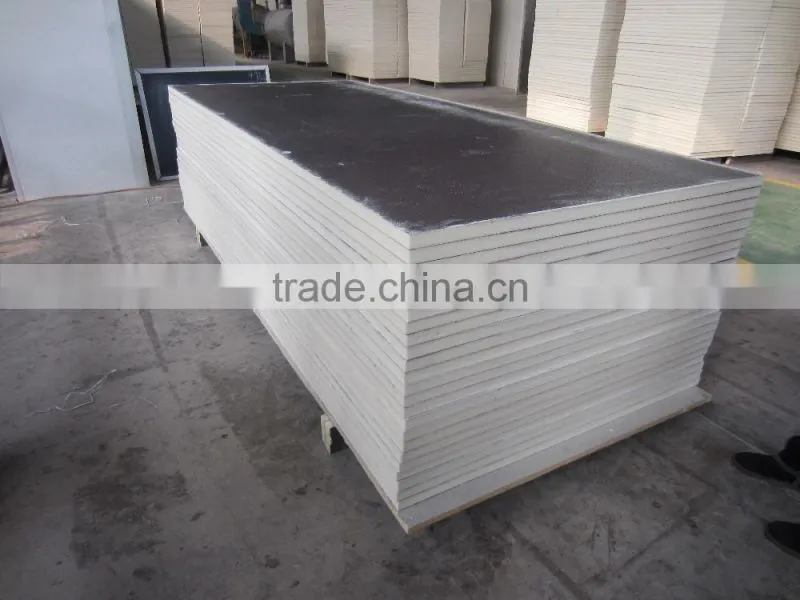

Polyisocyanurate (PIR) Insulation
1.light weight
2.highly thermal resistance
3.low vapour permeabil
Key Specifications
PU/PIR Foam Air Duct Panel
Fire Proof Performance: Class 'O'
ISO 9001:2008 ISO 14001:2004
Brief Introduction
Huahai PU Foam Pre-insulated Air Duct is used for air distribution in central air conditioning. The air ducts are made of PU Foam Sandwich Panels, the panels composite rigid polyurethane insulation foam faced on both sides with a protective low vapour permeability 80um aluminum foil.
PIR Foam pre-insulated Air Duct Panel is used for air distribution in central air conditioning, the panel is protected by aluminum foil,colored steel or iron sheet as protective layer, layer 70-220 micron thickness.
Huahai PIR panel is protected by 80 micron aluminum foil, embossed or smooth aluminum surface, light weight.
No benzene,no formaldehyde,no CFC.
Advantages
They are completely CFC and HCFC free, and are of highly thermal resistance.
Especially suit for using in air-conditioning and heating system installations.
Data Sheet of PU & PIR duct panel
Coating: aluminum foil/color steel/galvanized iron/
Core Material: polyurethane/polyisocyanurate foam
Thickness of aluminum foil: 60-80 micron
Density: 45-50kg/m3(PU) 50-55kg/m3(PIR)
Thermal Conductivity: 0.022-0.025w/m.k(PU) 0.019-0.022w/m.k(PIR)
Total thickness: 20/25/30mm
Size: 1.2m(w)x2.95/3.95m(L)
MOQ: 1000 square meters
You Should Choose Huahai:
We provide air duct panels to Qingdao International Sailing Center & Water Cube (2008 Beijing Summer Olympic Games National Swimming Center) and so on.
China Biggest & Earliest air duct manufacturer.
The Recommended Products of Olympic Construction Projects and Major National Construction Projects.
