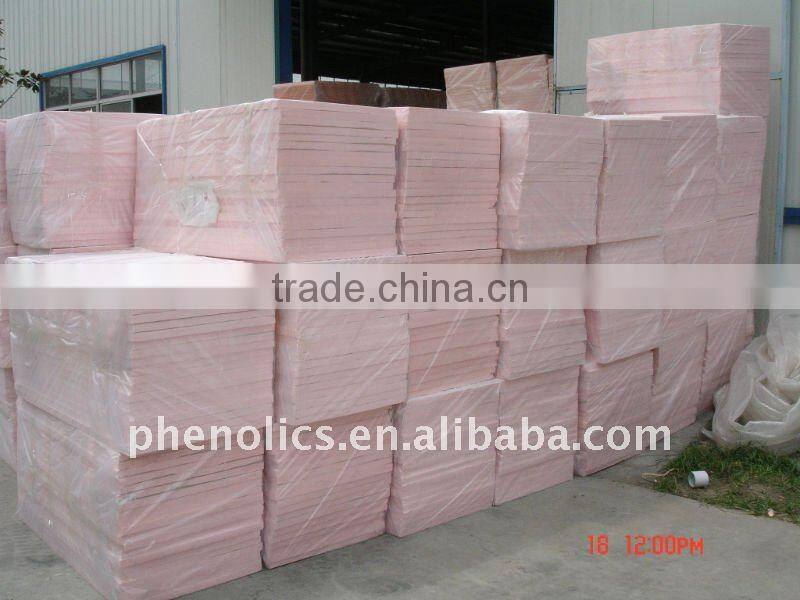

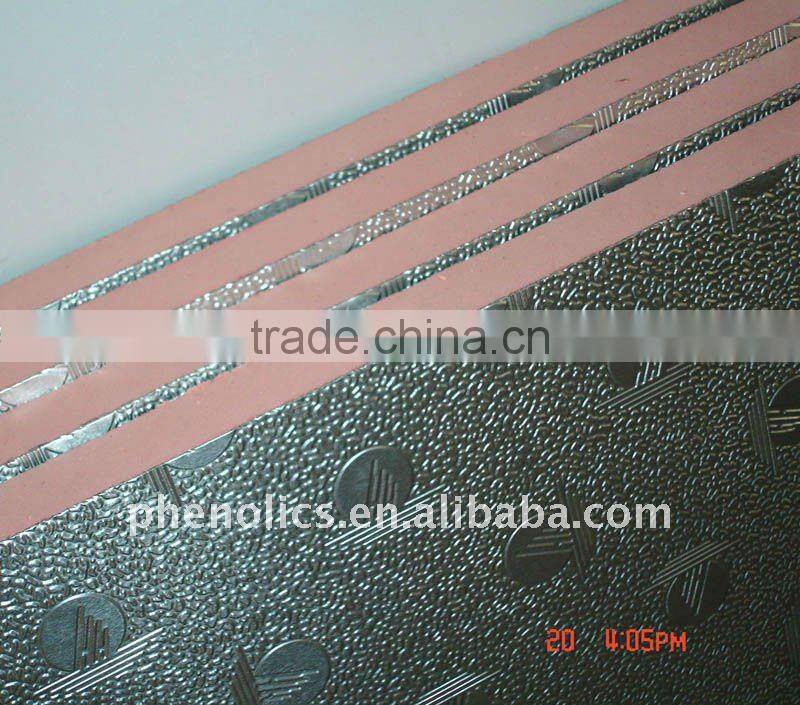

Phenolic foam Pre insulated exterior wall panel
ITEM | UNIT | SPECIFICATION |
Density | kg/m3 | over 60 |
Thermal Conductivity | w/m.k | 0.025 |
Bending Strength | Mpa | 1.05 |
combustion property | ~ | Non-combustible Class A |
Water Absorption Rate | % | 1.9 |
Max Smoke Density | % | 2 |
Dimension Change Rate | % | 0.3 |
Compressive Strength | Mpa | 0.25 |
Service Temperature | ° C | -250 - 150 |
Standard Size | mm | 3900*1200*20-100mm |
Advantage:
Ligh,fireproofing,not buring in the naked light,smoke-free,harmless,no dripping,widely temperature used(-196~+200ºC)not contract and not embrittle at low temperature,law thermal conductivity,good insulation,good waterproofing and steam penetrability,ideal heat insulting material.
Feature:

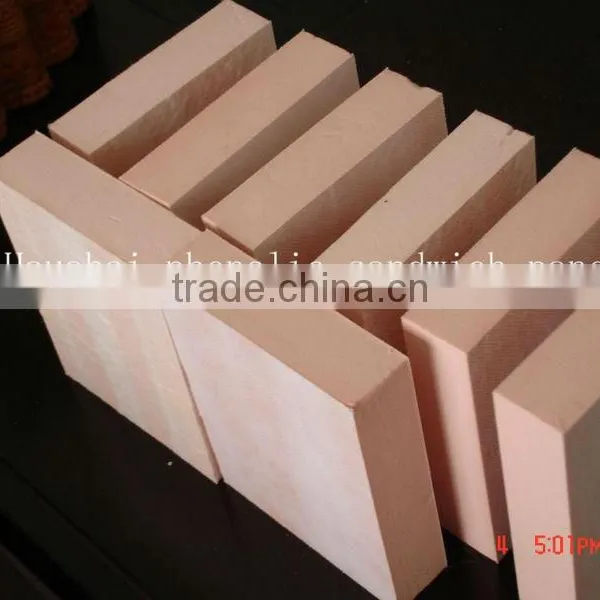

Good-quality of non-woven fabrics filled with high-density Phenolic,the thickness can make 20mm,30mm,40mm,50mm,
Application field :
Phenolic has good performance of fireproofing,sound and heat insulting .Widely used in wall,fireproof door and other buildings with high resisting requirements,places densely populated,large marketplaces and public places of entertainment.
The combustion process of Phenolic heating insulting materials:
150ºC Long-term use of the maximum temperature
400°C gradually oxidize and release CO,CO2
700°C Carbonized to form carbon-black
