Home > Products > PU Air Duct Panel > PU(Polyurethane) / PIR Sandwich Air Duct Panel for HVAC Ducting Work
PU(Polyurethane) / PIR Sandwich Air Duct Panel for HVAC Ducting Work
- Qingdao China
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HUAHAI | |
| Model Number | HHPU | Usage | Indoor | |
| Function | Antibacterial, Fireproof | Surface Treatment | Foil Decoration |
Product Description

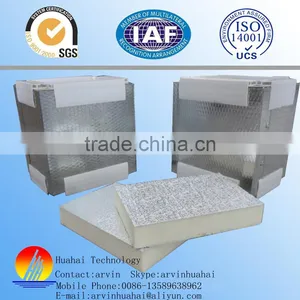

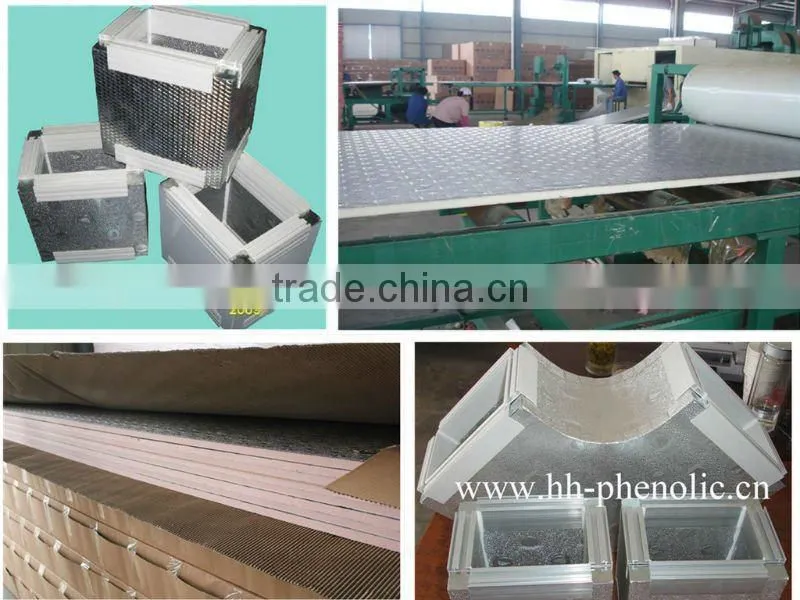

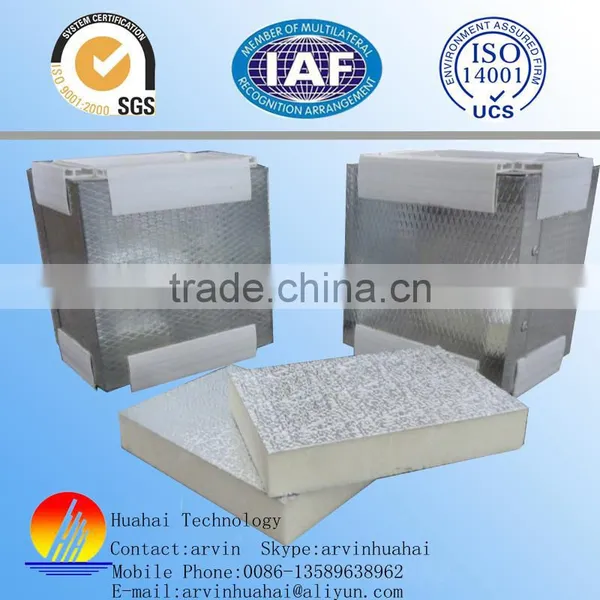

PU(Polyurethane) PIR sandwich air duct panel for HVAC ducting work panels
Item | Specification |
Material | Double side Aluminum foil+ pu foam panel |
Standard Size | 3900x1200x20mm/25mm/30mm |
Covering Aluminum foil thickness | 80um |
Total sickness | 20mm/25mm/30mm |
Density | 45Kg/m3 |
Thermal Conductivity | 0.019~0.022 w/m.k |
Bending Strength | 1.05 Mpa |
Non-Combustible | Class B |
Water absorption | less than 0.018 |
Max.Smoke Density | 2% |
Dimention Change Rate | 0.3% |
Compressing Strength | 1.05 Mpa |
Working Temperature | -150.C—200.C |
Packing way | 10 pecs covered by plastic paper /per box |
Delivery day | 1-2 weeks before receiving the deposit |
Certificate | ISO9001:2000quality mangement system certification |
Certificate | ISO 14001:2004 Enviromental Mangement System certification |
Honor | Chinese Green Environmental Protection Product" Title |
Our advantages :
1.Brought in a world -class continuous production line
2.The length can cut as the customer's requirment
3.Various metal materials are availabe .such as ,color steel , aluminum foil ,stainless iron,galvanized
steel .
Application field
Medical research , constant temperature in factory ,refrigerator and some other places needing special temperature , with good performance on energy conservation , envirometnal protection ,and construction .
If you want to know more about our products , please feel freely to contact us !
Saler :Mr Arvin
Skype:arvinhuahai
Phone :+86-13589638962
