5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator

5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator thumbnail-1
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator thumbnail-2
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator thumbnail-3
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator thumbnail-4
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator thumbnail-5
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator photo-1
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator photo-2
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator photo-3
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator photo-4
5.5hp Single Cylinder Gasoline Engine 168f, Gasoline Engine of Generator photo-5
Negotiable MOQ: 630 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Generator, Water pump, Pressure washer...
Fuel:
Gasoline
Contact Supplier Request Quote Chat Now
Huahe Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Generator, Water pump, Pressure washer...
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Kick Start
Place of Origin Zhejiang, China
Brand Name HUAHE
Model Number HH168I-N
Dimension(L*W*H) 380mmx325mmx340mm
Weight 14.5kg
Certification ISO9001
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

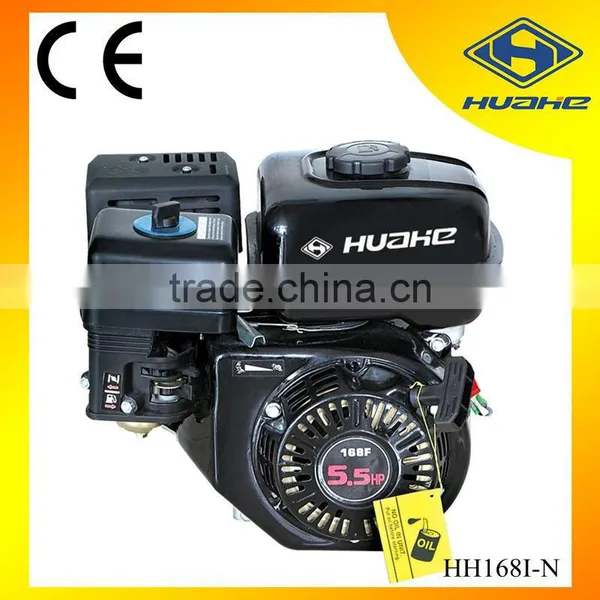

 5.5hp single cylinder gasoline engine 168f, gasoline engine of generator









5.5hp single cylinder gasoline engine 168f, gasoline engine of generator









- Technical Data:



odel

      HH168I-N

Engine type

Air-cooled 4 stroke OHV single cylinder

Bore×Stroke

68mm×45mm

Displacement

163cc

Compression ratio

8.5:1

Max power output

5.5HP/3600rpm

Max torque

10.8N.m/2500rpm

Ignition system

Non-contact transistorized ignition (TCI)

Start mode

Recoil start/Electric start

Air cleaner

Semi-dry, oil bath, dual, double silent and cyclone type

Fuel tank capacity

3.6L

Fuel consumption

290g/HP-hour

Engine oil capacity

0.6L

Dimension (L×W×H)

380mm×325mm×340mm

Gross weight

14.5kg

Quantity for container

620pcs for 20GP/1498pcs for 40HQ



  Gasoline Engine 5.5HP, 4 Stroke, 163cc 1.Strong, stable output power 2.Low fuel consumption 3.Reliable operation 4.Low nois

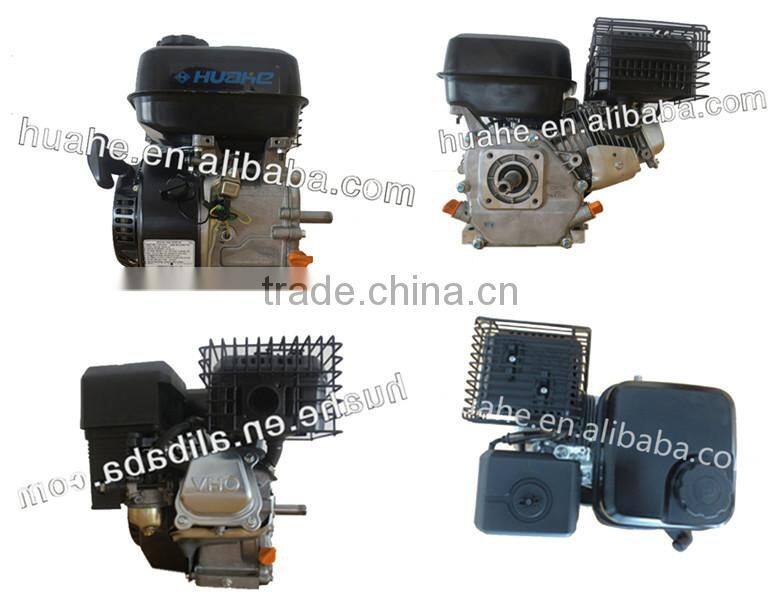

- Multi-angle pictures of the product

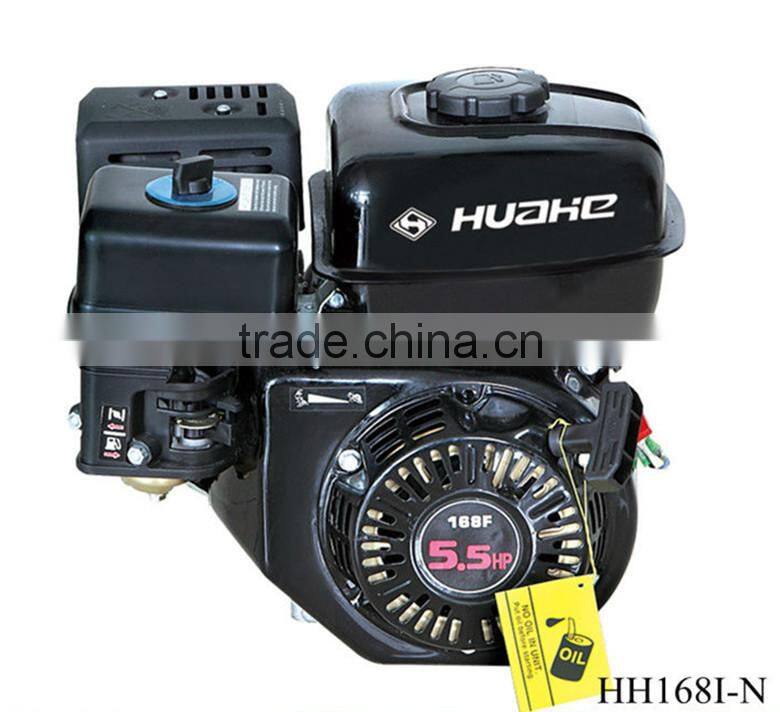

5.5hp single cylinder gasoline engine 168f, gasoline engine of generator





- Factory Show

- Raw Material

5.5hp single cylinder gasoline engine 168f, gasoline engine of generator


- Assembly
5.5hp single cylinder gasoline engine 168f, gasoline engine of generator



- Packing
5.5hp single cylinder gasoline engine 168f, gasoline engine of generator



- Loading

5.5hp single cylinder gasoline engine 168f, gasoline engine of generator
  5.5hp single cylinder gasoline engine 168f, gasoline engine of generator



- Certificate
5.5hp single cylinder gasoline engine 168f, gasoline engine of generator


- Sample Room
5.5hp single cylinder gasoline engine 168f, gasoline engine of generator


- Customers
5.5hp single cylinder gasoline engine 168f, gasoline engine of generator




5.5 hp - 13.0 hp engine



Professional generator manufactrurer with R&D capacity



Reliable quality, reasonable price, desirable service



Tell us your demand, provide what you want



Contact us now, let's make a deal.........
