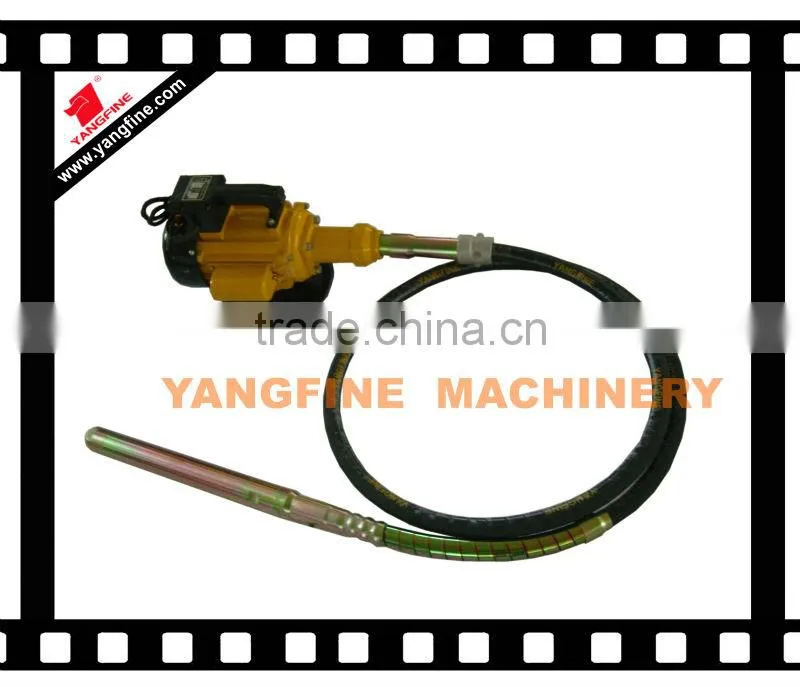

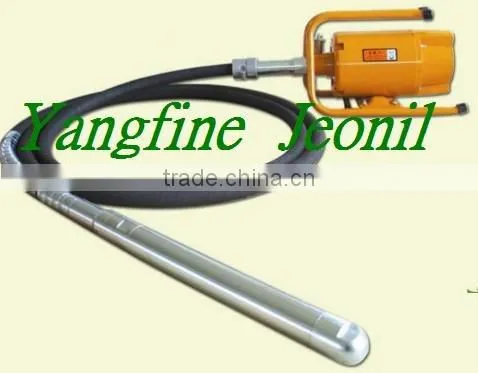

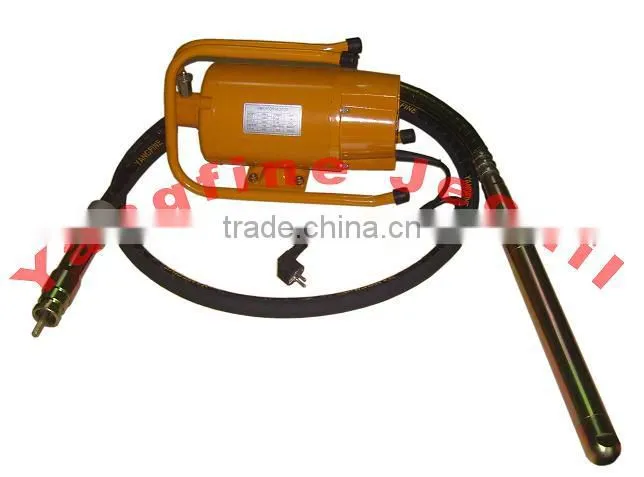

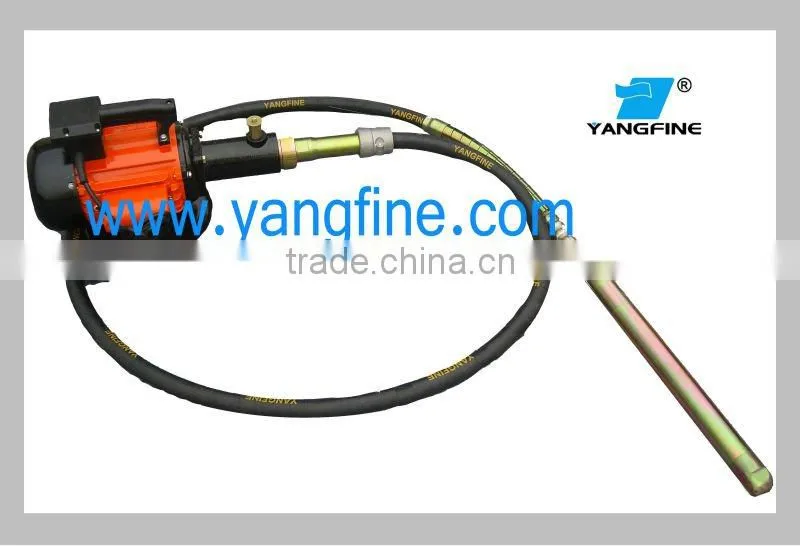

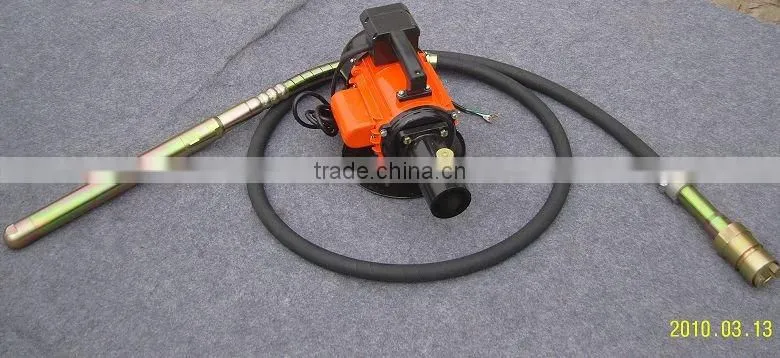

concrete poker vibrator is used to reinforce concrete.it si widely used in construction,transportation,water
conservancy,port,mine and metallurgy.it is driven by motor or engine.transmitted by flexibe shaft,speed increased through planet
structure,then gain high frequent vibration.
Vibrating frequency(VPM):12000-14000
Rotational speed(RPM):3000-3600
Length(M):5-8M
| Model | Vibrator Head Diameter*Length | Vibrating Frequency | Rotational Speed | Vibrating Amplitude | Dia. Flexible hose | Dia. Flexible shft | Length | Weight |
| YFMS-28 | 28mm*450mm | 12,000-14,000 VPM | 3000-3600 | 1mm | 25mm | 8mm | 6m(5m-8m) | 12kg |
| YFMS-32 | 32mm*450mm | 1.1mm | 30mm | 10mm | 13.5kg | |||
| YFMS-38 | 38mm*450mm | 1.6mm | 30mm | 10mm | 15.5kg | |||
| YFMS-45 | 45mm*500mm | 2mm | 30mm | 10mm | 16.5kg | |||
| YFMS-60 | 60mm*500mm | 2.4mm | 32mm | 13mm | 23.5kg |
Features:
The concrete vibrator poker head and end cap are made of Induction hardened , special steel the
input cable to the pokers are sealed in order to prevent water from entering the poker.The special
cable is flexible , light multi wired and durable.
Values:
1.Welcome to visit factory warmly. can send samples for testing in advance.
2.can supply OEM service with your own logo.
3.Supply high quality & the most competitive price for you,all flexible shafts c/w rubber hoses and all
connectors for concrete vibrators, are manufactured by ourselves .
4.can supply or assemble the semi-products concrete vibrator for you.
5.We Have Professional Skills,To provide users with high-quality technical services
6.Can Supply all kinds of coupling,can be coupled to electric motors,,gasoline engines,diesel engines.
7.Safer operation , wider application .
8.Our products have passed ISO9001_2008,CE, CCC certifications, etc, and the quality is
internationally recognized.
