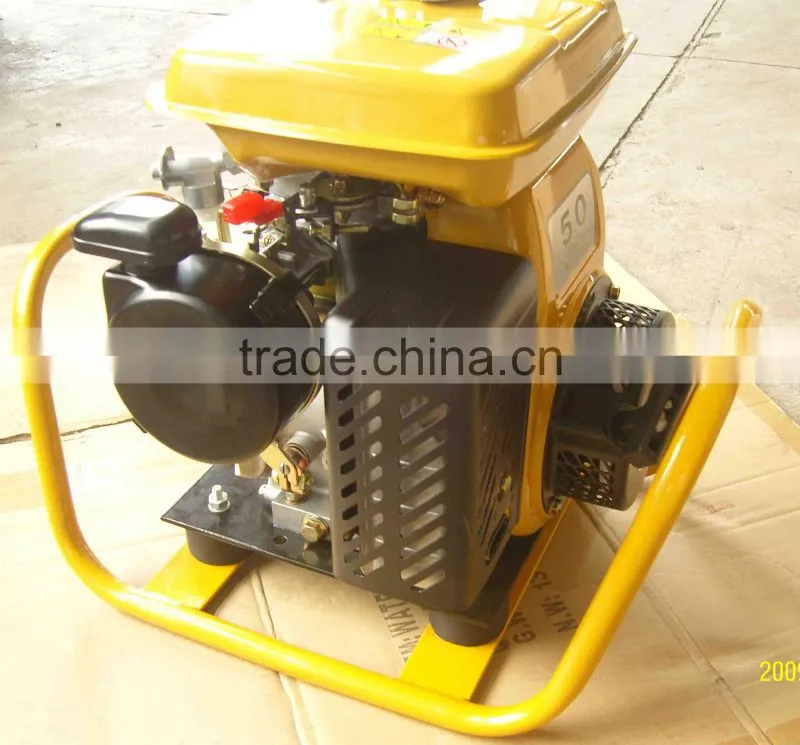

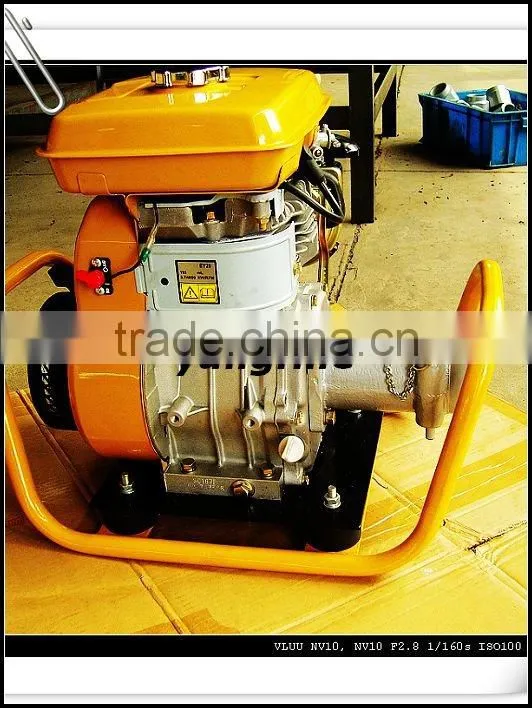

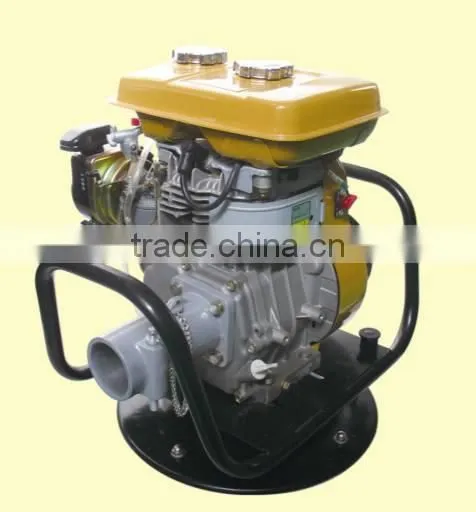

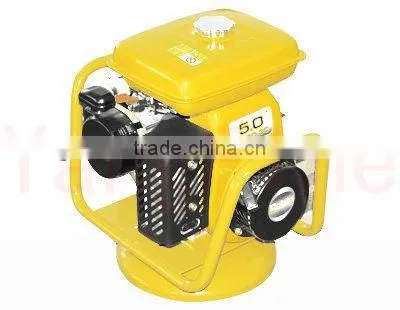

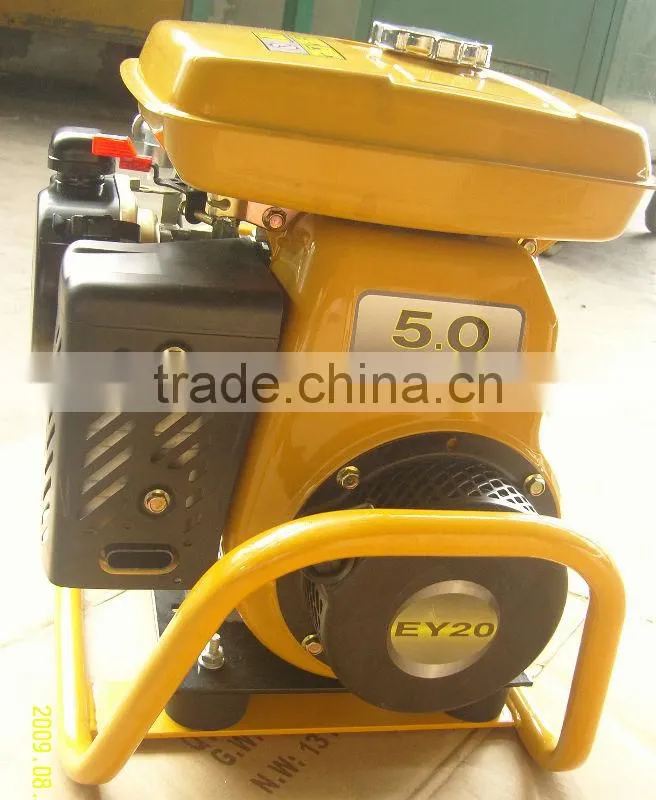

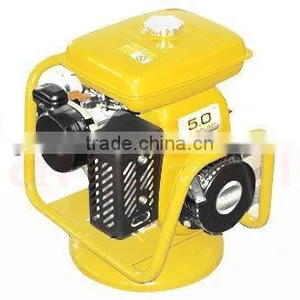

Help CenterRobin Gasoline Engine(ISO 9001:2000)
Related Products
source: 110V/220V/380V/50HZ
Power: 1.5Kw(2.0Hp)
speed: 50HZ(2850rpm)/60HZ(3450rpm)
fuel: gasoline,diesel
be used with the concrete vibrators and the pump.
vibrator can be inserted using,Cylinddrical ,Square Coupling,Hayashi coupling
Model | EY15 | EY20 | EY28 |
Type | air-cooled, 4-cycle single cylinder, side valve, gasoline engine | ||
Displacement | 143cc | 183cc | 273cc |
Continuous output | 1.64kw/3000min (2.2HP/3600RPM) 2.01kw/3600min (2.7HP/3600RPM) | 2.24kw/3000min (3HP/3000RPM) 2.61kw/3600min (3.5HP/3600RPM) | 4.10kw/3600min (5.5HP/3600RPM) |
Maximum output | 2.61kw/4000min (3.5HP/3600RPM) | 3.73KW/4000min (5HP/4000RPM) | 5.5kw/4000min (7.5HP/4000RPM) |
Direction of rotation | Counter clockwise facing P.O.T Shaft | ||
Lubricant | Class SC or higher grade SAE#20 #30 #40 | ||
Fuel | Unleaded Gasoline,Diesel | ||
Fuel tank capacity(L) | 2.8L | 3.8 L | 5.5 L |
Spark Plug: | NGK B-6HS | E6TC | |
Starting system | Recoil | ||
Shipping weight(kg) | 14kg | 16kg | 22kg |
Packing size (L*W*H)(mm) | 294x332x368 | 303x332x392 | 347x400x400 |
