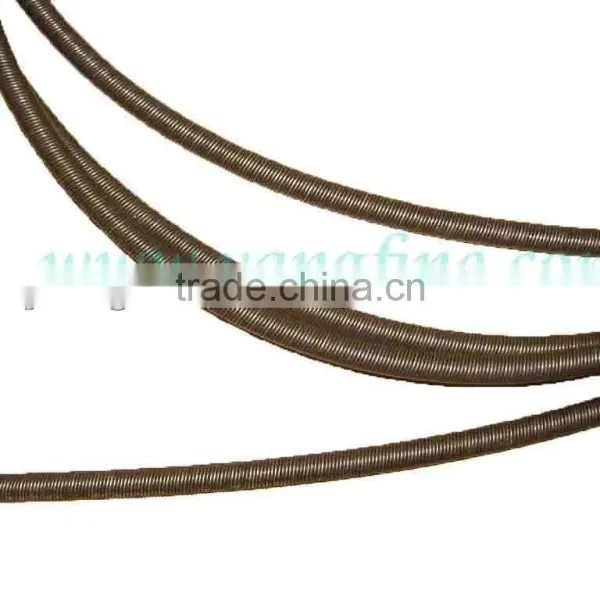

Flexible Driving Shaft(ISO9001:2000)

Name: Flexible Driving Shaft(ISO9001:2000)
Brand: YANGFINE
Availability: InStock

FOB Price

US$ 1 - 5 / Meter

500 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Shandong, China

Brand Name

YANGFINE

Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire

Direction of Twist: Levorotation and dextrorotation

Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools,

gardening machinery mower, and various mechanical flexible rotations.

Function: Smooth, flexible, highly-elastic, and wear resistant

Technical Parameters

Diameter (mm)	Tolerance (mm)	Number of Layers	Loading Moment (N · m) (Sample 500mm Long)	Weight (kg/ 100m)
2.0	+0.02 -0.02	3/5	0.8	1.8
2.5		3/5	1.0	2.8
3.2		3/5	1.3	4.6
3.8		3/5	1.5	6.5
5.0	+0.00 -0.05	3/4/5	1.8	11.3
6.0		3/4/5	2.4	16.2
6.5		4/5/7	2.9	18.7
8.0		4/5/6/7	7.5	28.8
10		4/5/6/7	22.5	45.5
12		4/5/6/7	39.0	66.5
13		4/5/6/7	50.5	77.5
16		4/5/6/7	115.0	114
18		4/5/6/7	160	145
The flexible shafts not listed in the chart can be customized

Values:

1.Welcome to visit factory warmly. can send samples for testing in advance.

2.can supply OEM service with your own logo.

3.Supply high quality & the most competitive price for you,

4.Our products have passed ISO9001_2008,CE, CCC certifications, etc, and the quality is

internationally recognized.
