flexible drive shaft(CE)

Name: flexible drive shaft(CE)
Brand: YANGFINE
Price: USD $1 - 5 / Meter

FOB Price

USD $1 - $5 / Meter

500 Meters(Min.Order)

Supply Ability 300000 Meter / Meters per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shandong, China

Brand Name:

YANGFINE

Product Description

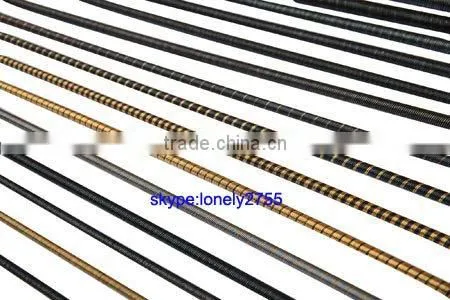

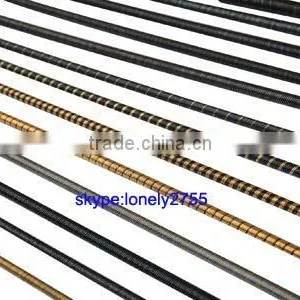

Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric

tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant

Technical Parameters

Diameter (mm)	Tolerance (mm)	Number of Layers	Loading Moment (N · m) (Sample 500mm Long)	Weight (kg/ 100m)
2.0	+0.02 -0.02	3/5	0.8	1.8
2.5		3/5	1.0	2.8
3.2		3/5	1.3	4.6
3.8		3/5	1.5	6.5
5.0	+0.00 -0.05	3/4/5	1.8	11.3
6.0		3/4/5	2.4	16.2
6.5		4/5/7	2.9	18.7
8.0		4/5/6/7	7.5	28.8
10		4/5/6/7	22.5	45.5
12		4/5/6/7	39.0	66.5
13		4/5/6/7	50.5	77.5
16		4/5/6/7	115.0	114
18		4/5/6/7	160	145
The flexible shafts not listed in the chart can be customized

Values:

1.Welcome to visit factory warmly. can send samples for testing in advance.

2.can supply OEM service with your own logo.

3.Supply high quality & the most competitive price for you,

4.Our products have passed ISO9001_2008,CE, CCC certifications, etc, and the quality is

internationally recognized.
