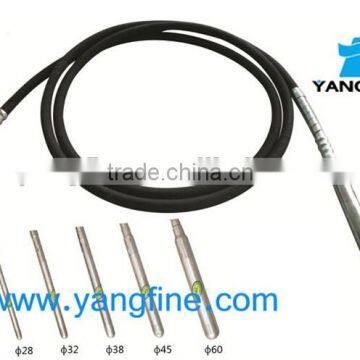

III--High quality concrete vibrator poker

Specifications

fessional manufacture
2.high quality
3.well guaranteed

• Stable operation
• Good mechanical perfaormance
• Low noise
• Good anti-wear performance

technical specification



Model	Vibrator Head  Diameter*Length	Vibrating Frequency	Rotational Speed	Vibrating Amplitude	Dia.Flexible hose	Dia.Flexible shft	Length	Weight
YFMS-28	28mm*450mm	12,000-14,000 VPM	3000-3600rpm	1mm	25mm	8mm	6m (5m-8m)	12kg
YFMS-32	32mm*450mm			1.1mm	30mm	10mm		13.5kg
YFMS-38	38mm*450mm			1.6mm	30mm	10mm		15.5kg
YFMS-45	45mm*500mm			2mm	30mm	10mm		16.5kg
YFMS-60	60mm*500mm			2.4mm	32mm	13mm		23.5kg





Certifications:

European CE,ISO 9001:2000,PRC IMPORT&EXPORT enterprise competency certificate,certificate issued BY CCPIT

About our company:

Liaocheng Yangfine Jeonil machinery Co.,Ltd, is an enterprise that specializes in the R&D of light construction machinery. We invest  a lot time and effort in developing the concrete vibrator,driving motors ,water pump,flexible shaft,etc. we have more than ten years producting experience in the light construction machinery.

Our advantage:

1.    can be coupled to electric motors,,gasoline engines,diesel engines,flexible shaft pumps

2.    no mini order demads

3.    can supply OEM service with your own logo

4.    can send sampales for testing in advance, welcome to visit factory warmly

5.    can supply the most competitive price with the high quality for you: all flexible shafts c/w rubber hoses and all connectors for concrete vibrators,are manufactured by ourselves

6.    can supply or assemble the semi-products concrete vibrator for you.



After sale service:

For the Malaysia type concrete vibrator YFM-SERIES,we have 3 months warranty.

1.       within 3 months,if there is some accesorry going wrong,we will send you the accessory at once,free of charge or deliver the spare in the next order

2.       in the period guarantee,we change the defective parts(but the wearing parts)for free in the condtion that the users comply the rules of transportation,storage and using,if the vibrator is broken or can not be working well.

3.       no responsibility for man-made destroy.

4.       If the buyer has any questions from our technical department, we can supply on-line service
