Specifications
TCT wood low noise saw bladeBody: 50# steel or 65Mn
Tip: YG8
Super Thin Type

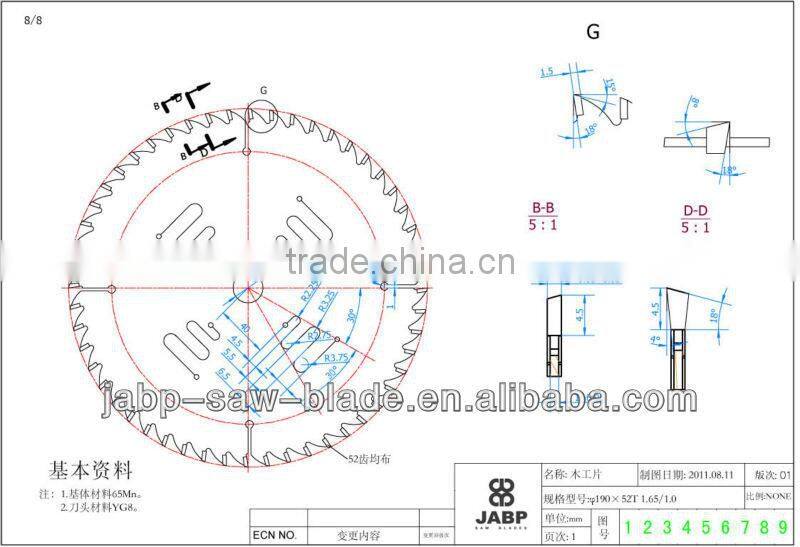

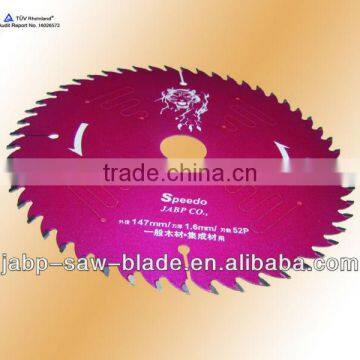

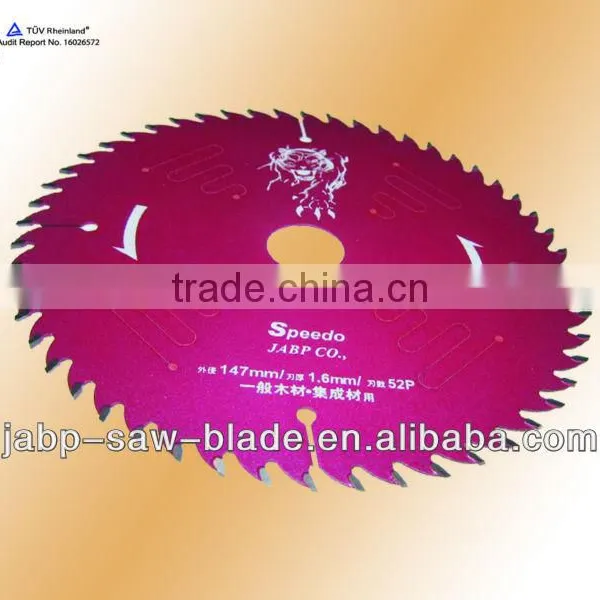

TCT wood low noise saw blade
We JABP Company was establised in 1973 and we founded Manufacturer in Jiangsu Province for over 10years. We have about 13 years experience of manufacturing and exporting all kinds of TCT saw blade, brush cutter blade, trimmer head and trimmer
line etc. Welcome to visit our website to see more informations:
http://jabp-saw-blade.en.china.cn/
Specification!
1. The size: 100MM —200MM X 24T—100T
2. The Tip material: YG8
3. The body material: 65Mn or 50 Steel
4. The body hardness: HRC 40-42
5. Sheet of specification
| Size(Inch) | Diameter(mm) | Number of Tip | Size(Inch) | Diameter(mm) | Number of Tip |
| 4 | 100 | 16T-40T | 18 | 450 | 40T-140T |
| 5 | 125 | 16T-60T | 20 | 500 | 40T-160T |
| 6 | 150 | 16T-60T | 22 | 560 | 40T-160T |
| 7 | 180 | 16T-80T | 24 | 610 | 60T-180T |
| 8 | 200 | 18T-90T | 26 | 660 | 60T-180T |
| 9 | 230 | 24T-100T | 28 | 710 | 80T-180T |
| 10 | 250 | 24T-120T | 30 | 760 | 80T-240T |
| 12 | 300 | 24T-120T | 32 | 810 | 80T-240T |

Function!
1. Teflon can resist heat which make the cutting work much faster!
2. The noise of cutting is super low!
3. The saw blade is used for WOOD, OSB, MDF, PLYWOOD, VENEERED, CHIPBOARO, PICTURE FRAME
Notice!
1.Keep wearing eye and face protection while you are doing cutting works!
2.Do not wear loose clothes, jewelry and gloves!
3.Never fit or change the saw blade while the tools is working or the plug is still conecting!
4.Please ensure you use the right size of saw blade with suitable power tools!
5.The saw blade is designed for cutting wood and similar materials. Do not use it for
cutting concrete, stone, metal or other similar material!
Packing
1.Sliding card
2.Color box
3.Double blister
4.Vacuum
5. Others as your requests
Other Information
1.Delivery time : First order: 30~45days; Repeat orders: 30days
2.M.O.Q.: 100pcs
3.Loading Port: Shanghai or other Chinese Port
4.Manufacturer: Danyang City, Jiangsu, China. (Between Nanjing and Shanghai)
Production Information

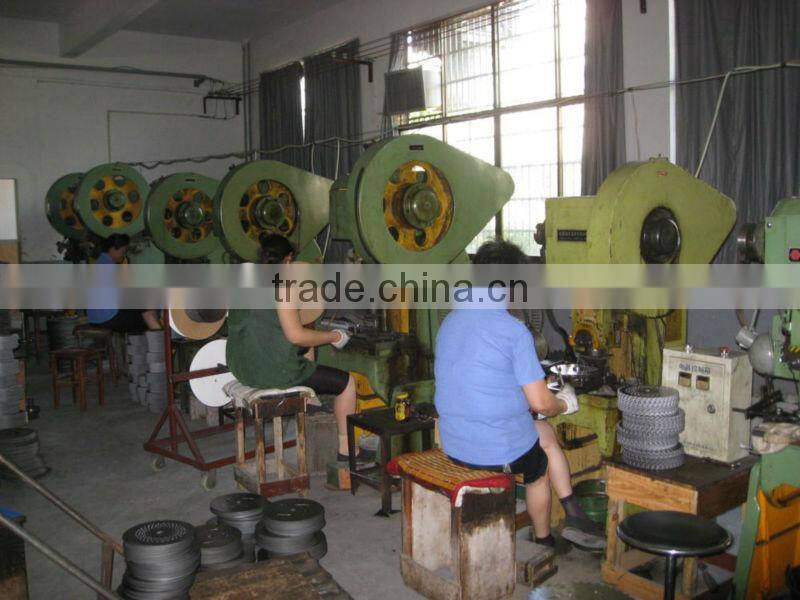

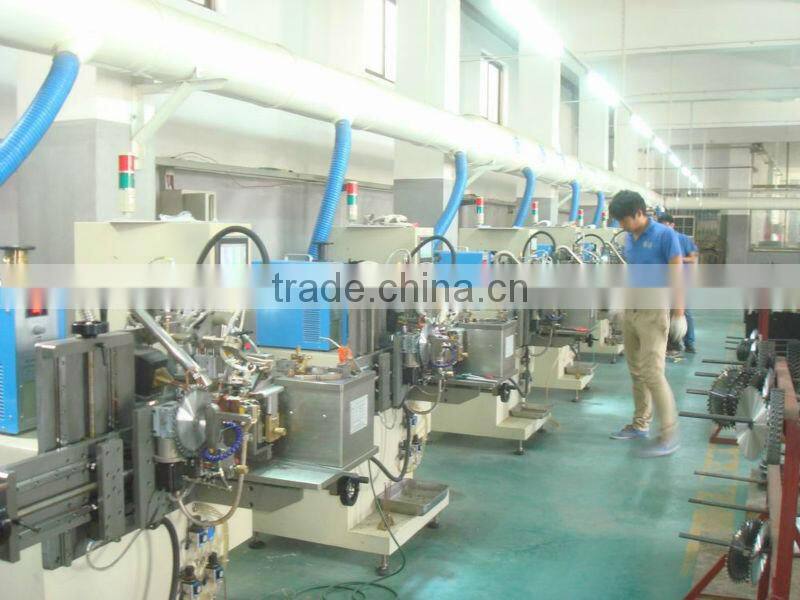

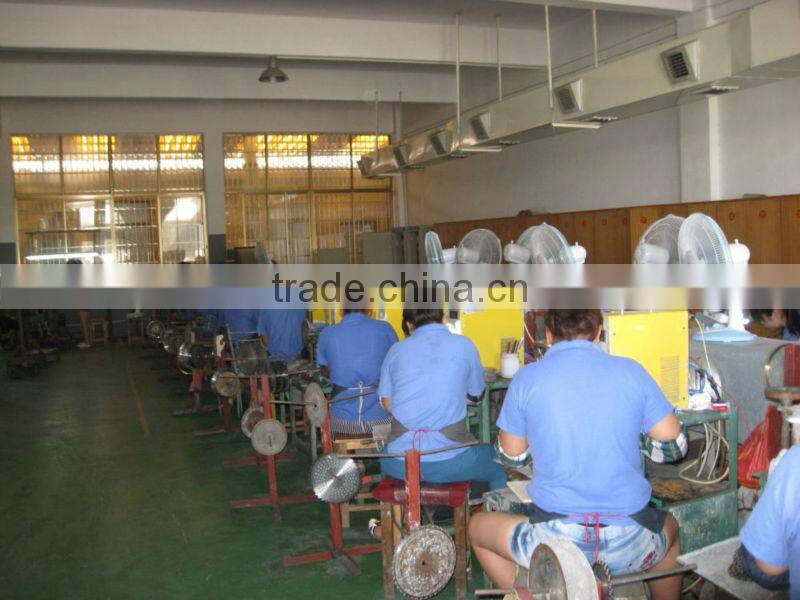

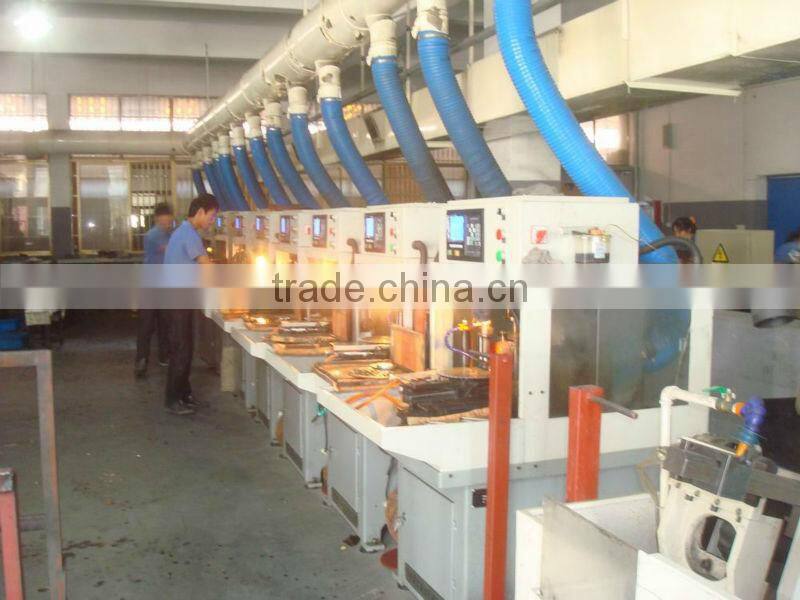

1. Machinery and equipment
Our manufacturer have professional equipments for each process.
2. Management
Now we are studying the Japanese JIS standard and use it for each process.

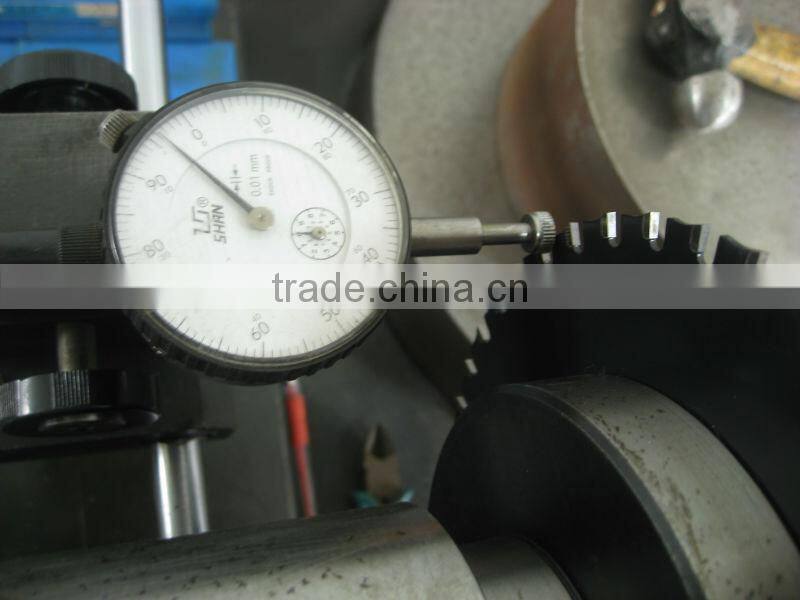

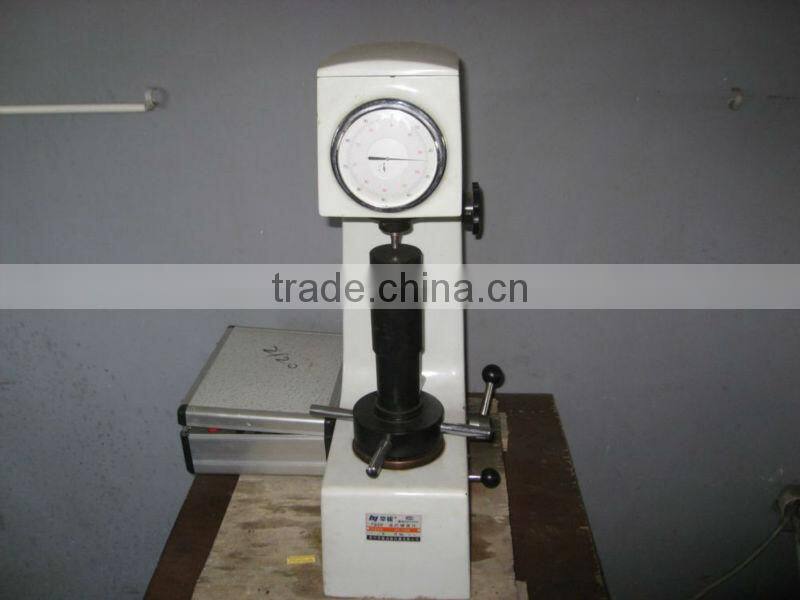

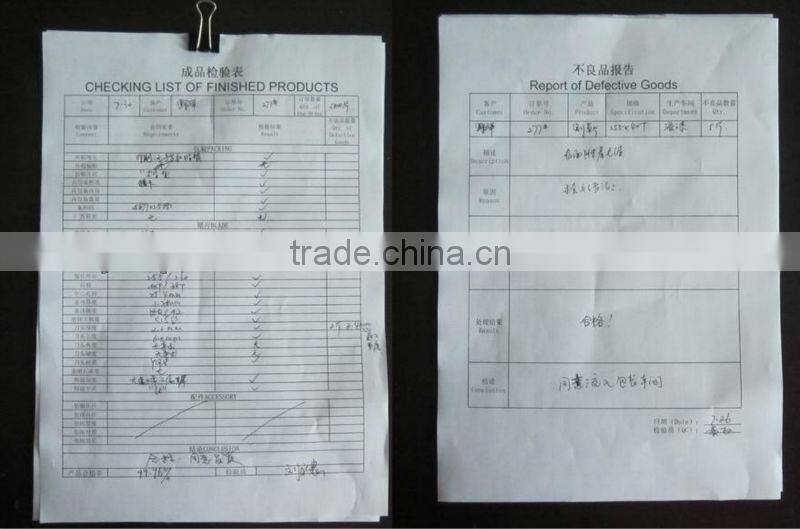

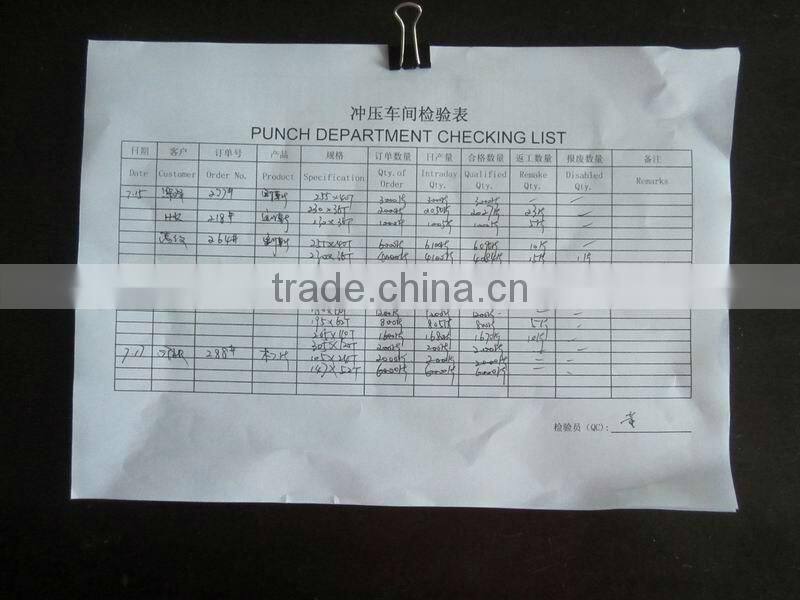

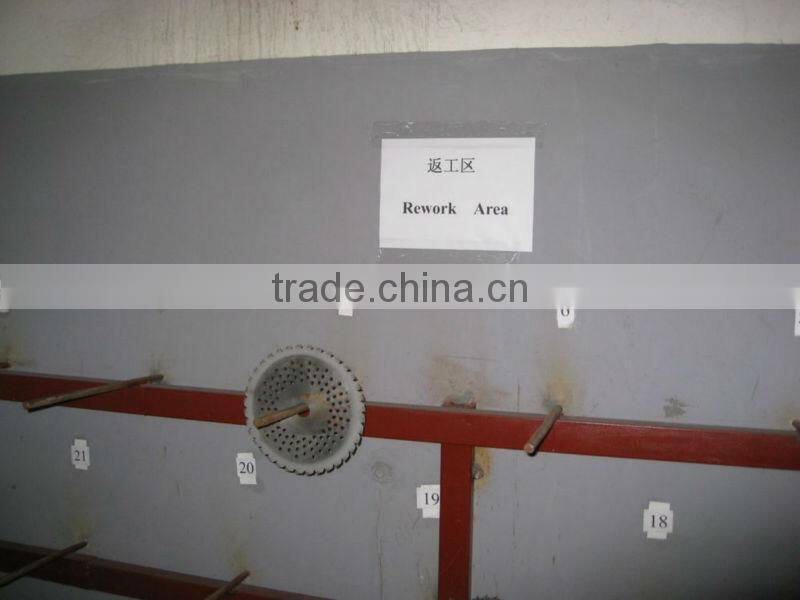

3. Quality control
We control the quality not only at the final process. From buying material to delivery, our QC department check quality in every process.

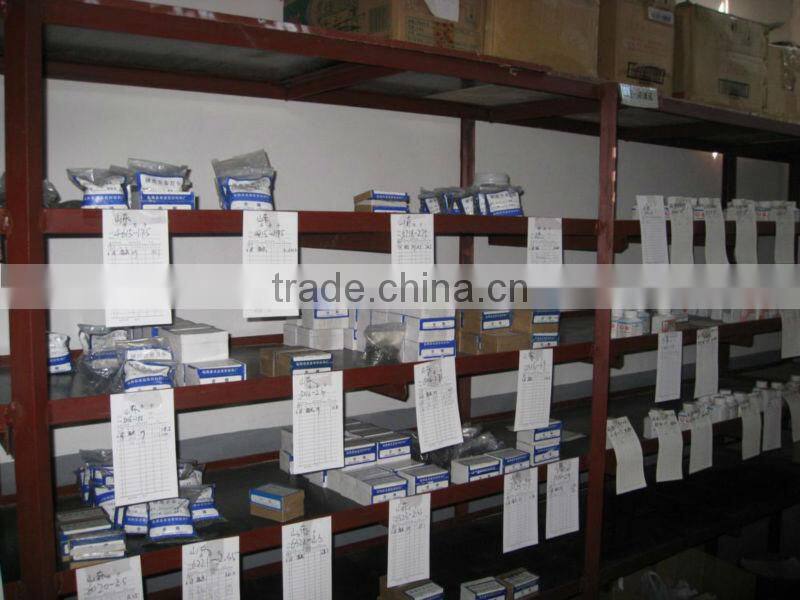

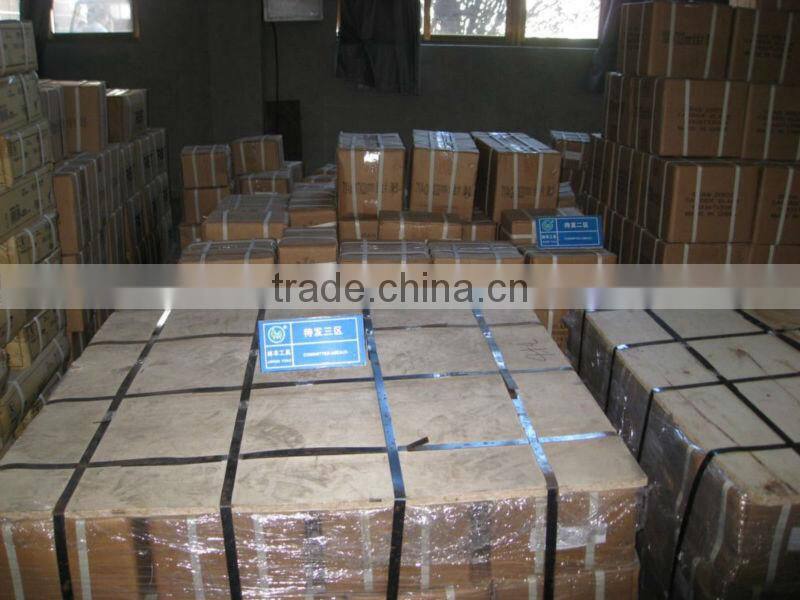

4. Delivery
We have experienced workers for delivery which can load goods very trim and safe.

More similar products, welcome to visit our website:
http://jabp-saw-blade.en.china.cn/
Wish you win more business!
