Place of Origin:
Jiangsu, China
Model Number:
ART NO: DS-04
Blade Material:
Alloy Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR ANY CHINESE PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Model Number
ART NO: DS-04
Blade Material
Alloy Steel
Finishing
Other
Size
4.5"~9"
Specifications
Diamond Saw Blade1.Diameter:4.5"~9"
2.The blade is cold press type
3.Tip thickness:2.6~3.1mm
4.Hole size:20mm or any size

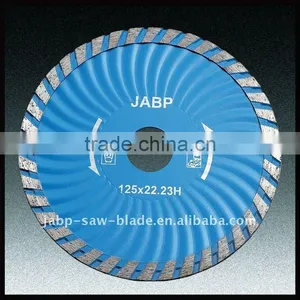

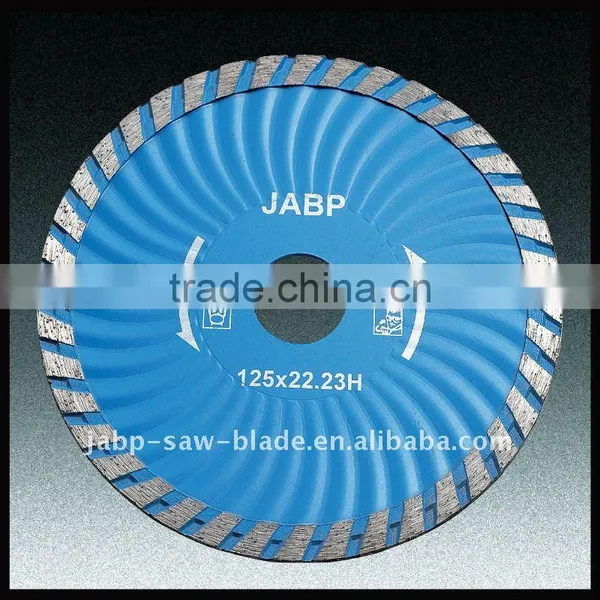

Diamond Saw Blade
Remark:
1.The size as follow:
2.The Tip material: diamond
3.The Tip thickness: 2.6~3.1MM
4.The body material: steel
5.The body thickness: 1.4~2.2MM
6.The saw blade is strengthen turbo type
7.The saw balde is used for the tile; concrete; stone; brick; marble; etc
8.We can do any hole size(20mm or 16mm)
9.Packing:
A. Color Box
B. Sliding Card
C. Double Blister
D. Vacuum
10.Delivery time:30 days
Outer Diameter(D) Segment Dimension
Inches | Metric | Inner Diameter(H) | Core Thickness(T) | Thickness(T) | Height(W) |
4.5" | 115 | 20/22.23 | 1.4 | 2.6 | 8 |
5" | 125 | 20/22.23 | 1.4 | 2.6 | 8.3 |
| 6" | 150 | 20/22.23 | 1.4 | 2.8 | 9 |
7" | 180 | 22.23/25.4/30 | 1.6 | 3.1 | 9 |
9" | 230 | 22.23/25.4/30/50 | 1.8 | 3.1 | 9 |
